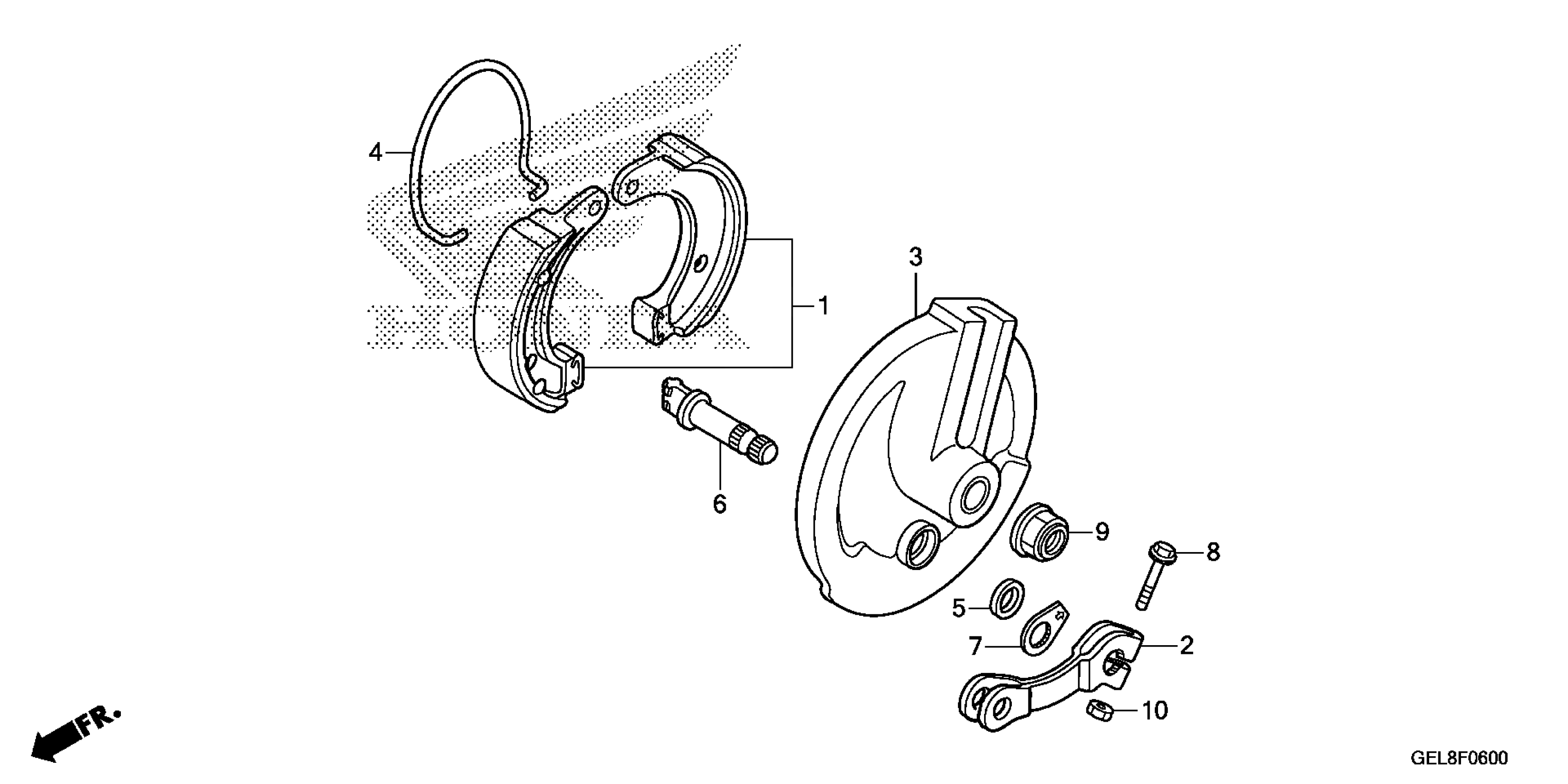

Honda CRF50FAC (15) CRF50F, CHN, VIN# LALAE041-F3200001 TO LALAE041-F3299999 FRONT BRAKE PANEL Diagram

#

Description

Price

1

SHOE SET, BRAKE This part replaces 06430-GZ9-003.

06430-131-405

$15.33

1

SHOE SET, BRAKE SHOE KIT, BRAKE

06430-131-405

$15.33

2

ARM, RR. BRAKE (FR.) (FOR FR.)

43410-GEL-700

$7.96

3

PANEL, FR. BRAKE NH146M (ACCURATE SILVER METALLIC) (RR.) (FOR RR.)

45100-181-831ZC

$53.02

4

SPRING, BRAKE SHOE

45133-044-000

$2.31

5

SEAL, BRAKE CAM

45134-165-890

$1.57

6

CAM, FR. BRAKE (RR.) (FOR RR.)

45141-147-003

$13.20

7

INDICATOR, BRAKE

45145-GW8-670

$3.65

8

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

9

NUT, FLANGE (12MM) (PT)

90306-KYA-601

$2.92

10

NUT, HEX. (5MM)

94001-05000-0S

$2.74
