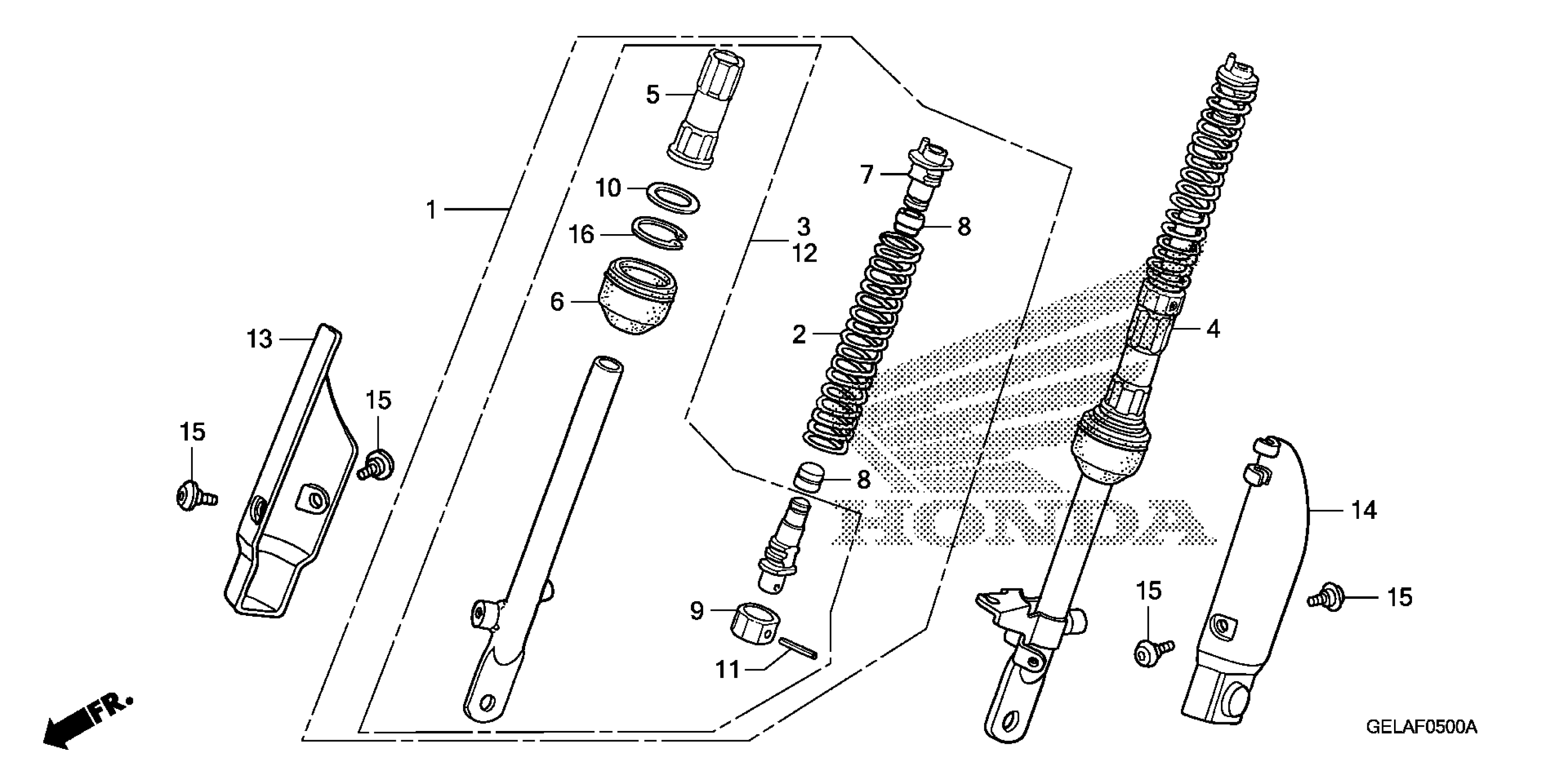

Honda CRF50FAC (12) CRF50F, JPN, VIN# JH2AE031-CK000001 FRONT CUSHION Diagram

PIPE ASSY., R. SLIDE (COO) (SHOWA) This part replaces 51400-GEL-J01.

51400-GEL-305

$139.04

PIPE ASSY., R. SLIDE (COO) (SHOWA)

51400-GEL-305

$139.04

SPRING, FR. FORK

51401-GEL-J01

$18.89

PIPE SUB-ASSY., R. SLIDE

51450-GEL-701

$126.51

PIPE ASSY., L. SLIDE (SHOWA)

51500-GEL-J01

$131.10

PIPE ASSY., L. SLIDE (SHOWA) This part replaces 51500-GEL-305.

51500-GEL-J01

$131.10

GUIDE, FR. FORK PIPE

51502-045-670

$16.83

DUST SEAL, FR. FORK

51503-165-003

$12.06

HOLDER, SPRING (UPPER)

51504-165-000

$23.12

RUBBER, FR. FORK STOPPER

51506-GEL-701

$2.92

PISTON, SLIDE PIPE

51507-GEL-701

$9.48

RING, BACK-UP

51507-165-000

$3.95

PIN, SPRING

51526-098-000

$2.92

PIPE SUB-ASSY., L. SLIDE

51550-GEL-701

$126.51

PROTECTOR, R. FR. FORK *TNATURAL* (NATURAL) | Extreme red R292R;

51610-GEL-700ZA

$29.85

PROTECTOR, L. FR. FORK *TNATURAL* (NATURAL) | Extreme red R292R;

51620-GEL-700ZA

$29.85

BOLT, PROTECTOR

90113-GEL-700

$2.28

CIRCLIP (INNER) (34MM)

94520-34000

$1.49
