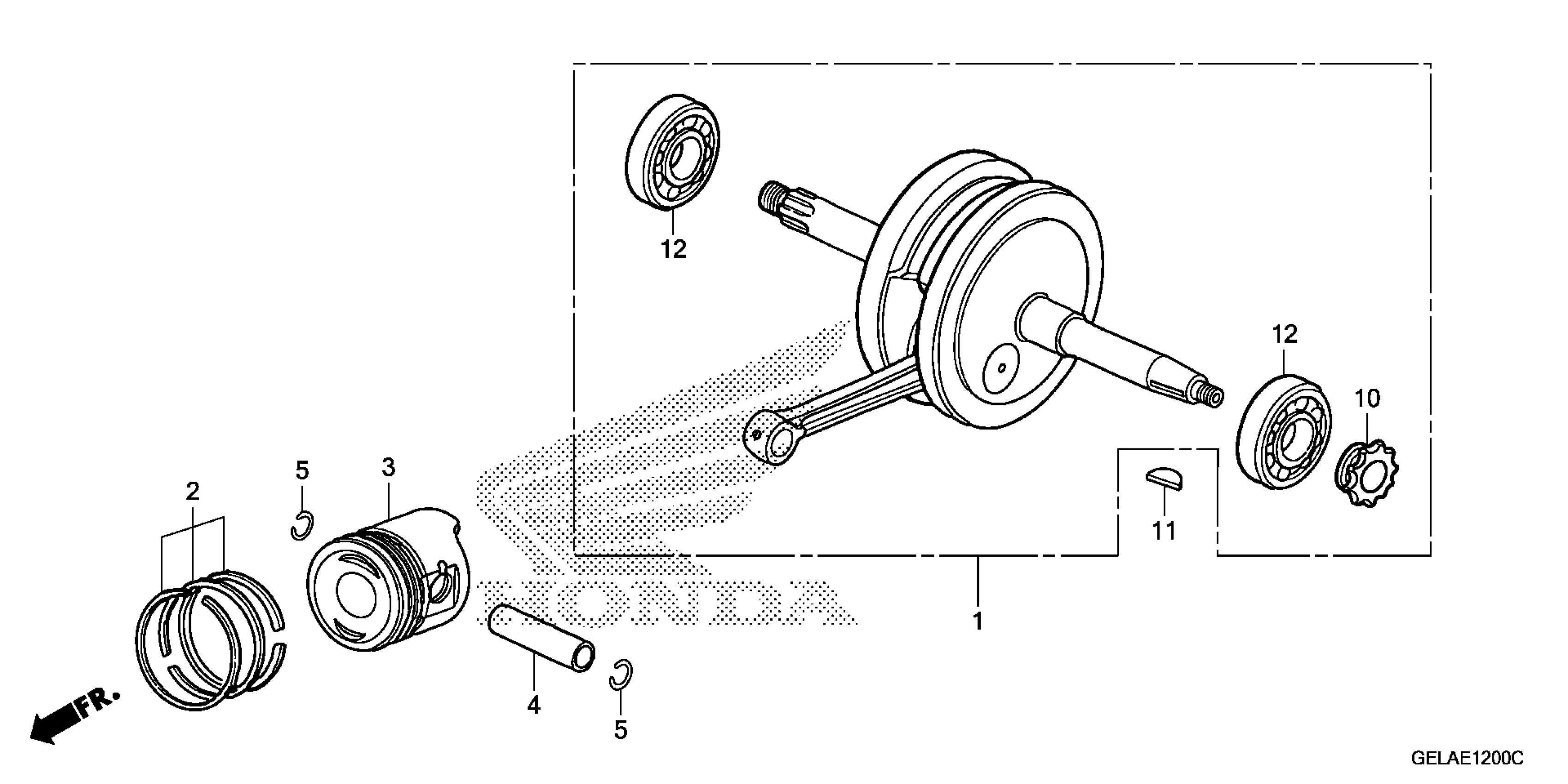

Honda CRF50FAC (12) CRF50F, JPN, VIN# JH2AE031-CK000001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT

13000-GBJ-680

$460.85

2

RING SET, PISTON (STD) (TEIKOKU)

13011-GBZ-702

$31.98

2

RING SET, PISTON (0.25) (TEIKOKU) | (Optional).

13012-GEL-702

$29.54

2

RING SET, PISTON (0.50) (TEIKOKU) | (Optional).

13013-GEL-702

$31.98

3

PISTON (STD)

13101-GBZ-701

$36.31

3

PISTON (0.25) | (Optional).

13102-GEL-700

Unavailable

3

PISTON (0.50) | (Optional).

13103-GEL-700

$38.52

4

PIN, PISTON

13111-GB2-000

$9.19

5

CLIP, PISTON PIN (13MM) This part replaces 13115-001-000.

94601-13000

$1.49

5

CLIP, PISTON PIN (13MM)

94601-13000

$1.49

6

ROD, CONNECTING (NOT AVAILABLE)

13201-GE0-300

Unavailable

7

CRANKSHAFT, R.

13311-GB4-680

$138.44

8

CRANKSHAFT, L.

13321-GB4-680

$156.74

9

PIN, CRANK (NOT AVAILABLE)

13381-GB1-900

Unavailable

10

SPROCKET, TIMING (14T)

14311-KEV-900

$9.43

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (6304)

91001-GF6-004

$20.45

12

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$20.45

13

BEARING, CONNECTING ROD (RED) (NOT AVAILABLE)

91101-GB4-681

Unavailable

13

BEARING, CONNECTING ROD (BLUE)

91102-GB4-681

Unavailable

13

BEARING, CONNECTING ROD (WHITE)

91103-GB4-681

$23.20
