Description

Price

1

CLUTCH OUTER

22101-178-000

$49.49

2

COVER, CLUTCH (OUTER)

22111-178-010

$10.15

3

GASKET, CLUTCH COVER (OUTER) This part replaces 22119-GW8-681.

22119-GW8-682

$2.80

4

CENTER, CLUTCH

22120-GCF-670

$49.85

5

GUIDE, CLUTCH CENTER

22131-035-030

$19.99

6

DISK A, CLUTCH FRICTION

22201-GW8-681

$9.25

7

PLATE A, CLUTCH

22310-GB0-910

$13.39

8

PLATE B, CLUTCH This part replaces 22321-041-000.

22321-046-020

$9.05

8

PLATE B, CLUTCH

22321-046-020

$9.05

9

DISK B, CLUTCH FRICTION

22331-GW8-681

$9.25

10

PLATE, DRIVE

22351-GB2-710

$57.01

11

SPRING, CLUTCH

22401-GW8-670

$3.88

12

SPRING, CLUTCH FREE

22411-092-010

$2.07

13

SPRING, CLUTCH DAMPER

22421-040-000

$1.88

14

WEIGHT, CLUTCH

22531-178-000

$1.13

15

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.13

16

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.13

17

SET-RING (102MM)

22901-001-000

$3.71

18

COLLAR (17MM)

22911-GB4-680

$6.22

19

GEAR, PRIMARY DRIVEN (69T)

23110-GK4-010

$109.26

20

OUTER, DRIVE GEAR

23112-GB0-910

$26.63

21

GEAR, PRIMARY DRIVE (17T)

23120-086-020

$44.78

22

NUT, LOCK (14MM)

90231-087-010

$3.63

23

WASHER, LOCK (14MM)

90431-086-000

$2.89

24

WASHER B, LOCK

90432-086-000

$4.23

25

WASHER, STOPPER

90483-041-000

$1.78

26

CIRCLIP, OUTER (17MM)

90601-001-000

$1.34

27

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

28

SCREW, FLAT (5X10)

93600-05010-0A

$0.72

29

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.75

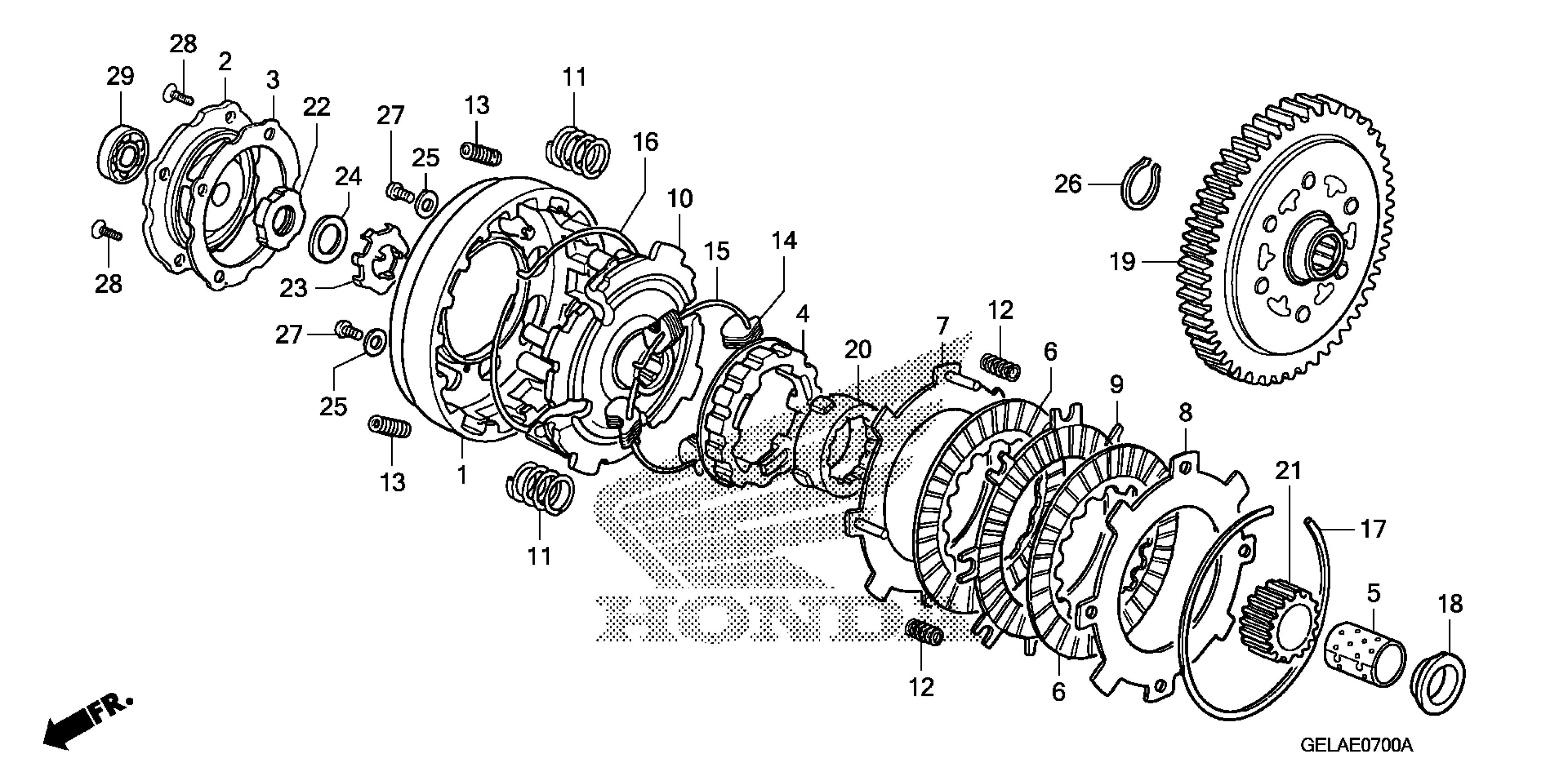

Honda CRF50FAC (12) CRF50F, JPN, VIN# JH2AE031-CK000001 CLUTCH Diagram
