Description

Price

1

GASKET SET

16010-181-305

$18.76

1

GASKET SET This part replaces 16010-181-831.

16010-181-305

$18.76

2

NEEDLE SET, JET

16012-GEL-A21

$22.08

3

FLOAT SET

16013-147-004

$40.96

4

CHAMBER SET, FLOAT

16015-099-691

$88.63

5

SCREW SET

16016-GEL-A21

$11.34

6

VALVE SET, THROTTLE (CARBURETOR NO.)

16022-GW8-672

$35.11

7

SCREW SET B

16028-GC8-004

$15.02

8

CARBURETOR ASSY. (PA42C A) This part replaces 16100-GEL-A41.

16100-GEL-A42

$158.33

8

CARBURETOR ASSY. (PA42C A)

16100-GEL-A42

$158.33

9

GASKET, TOP

16110-181-831

$4.54

10

VALVE, FLOAT

16155-883-005

$18.46

11

TUBE

16198-GEL-701

$4.52

12

TUBE, AIR VENT

16199-GEL-701

$4.59

13

SCREW-WASHER (4X12)

93892-04012-08

$0.72

13

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$0.72

14

CLIP, TUBE (B6.5)

95002-02659

$1.01

15

JET, MAIN (#58)

99101-187-0580

$7.71

16

O-RING (1.3X4.3)

16076-ND5-004

$2.29

17

GASKET, FLOAT CHAMBER

16163-165-B10

$15.01

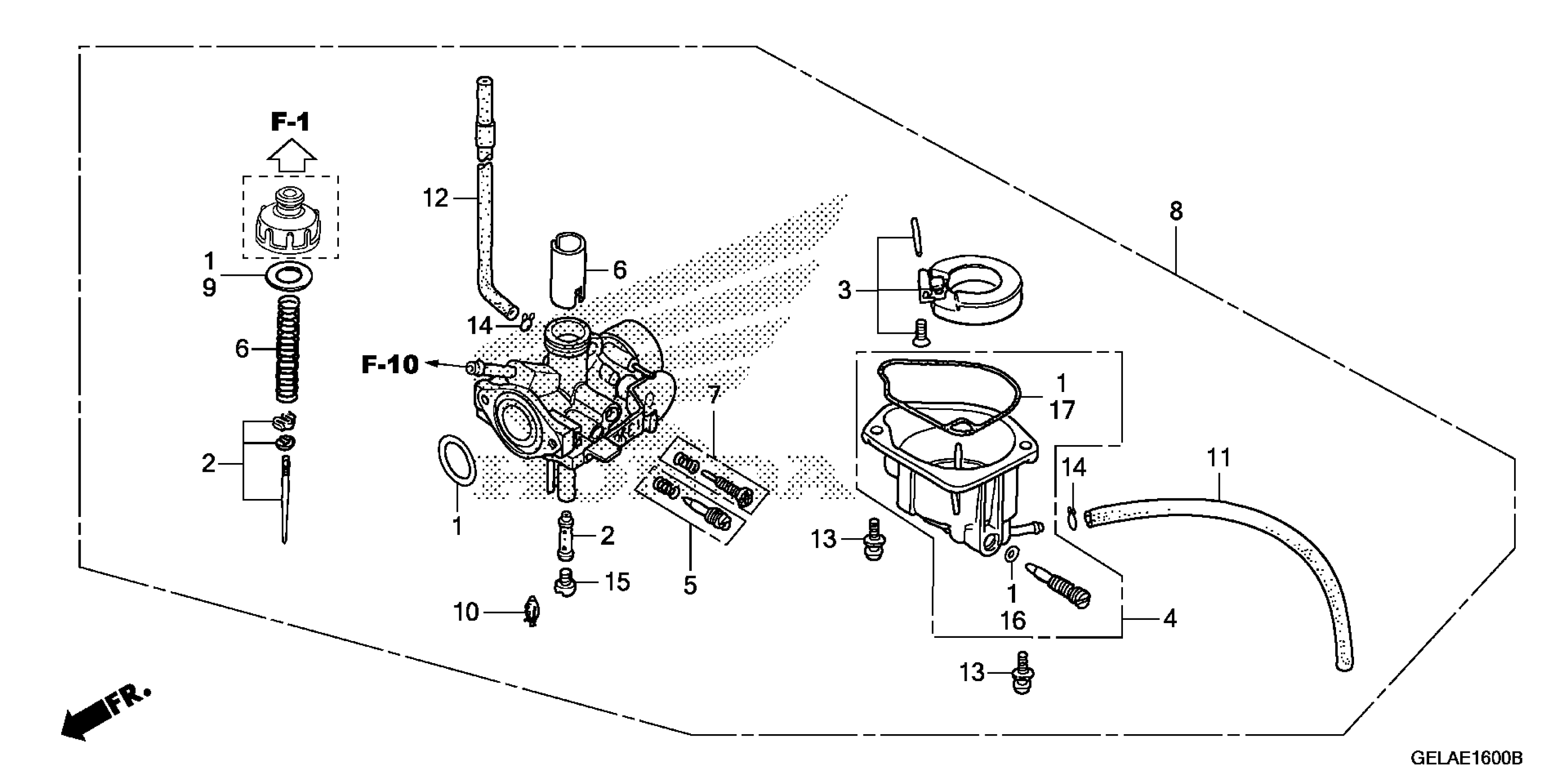

Honda CRF50FAC (12) CRF50F, JPN, VIN# JH2AE031-CK000001 CARBURETOR Diagram
