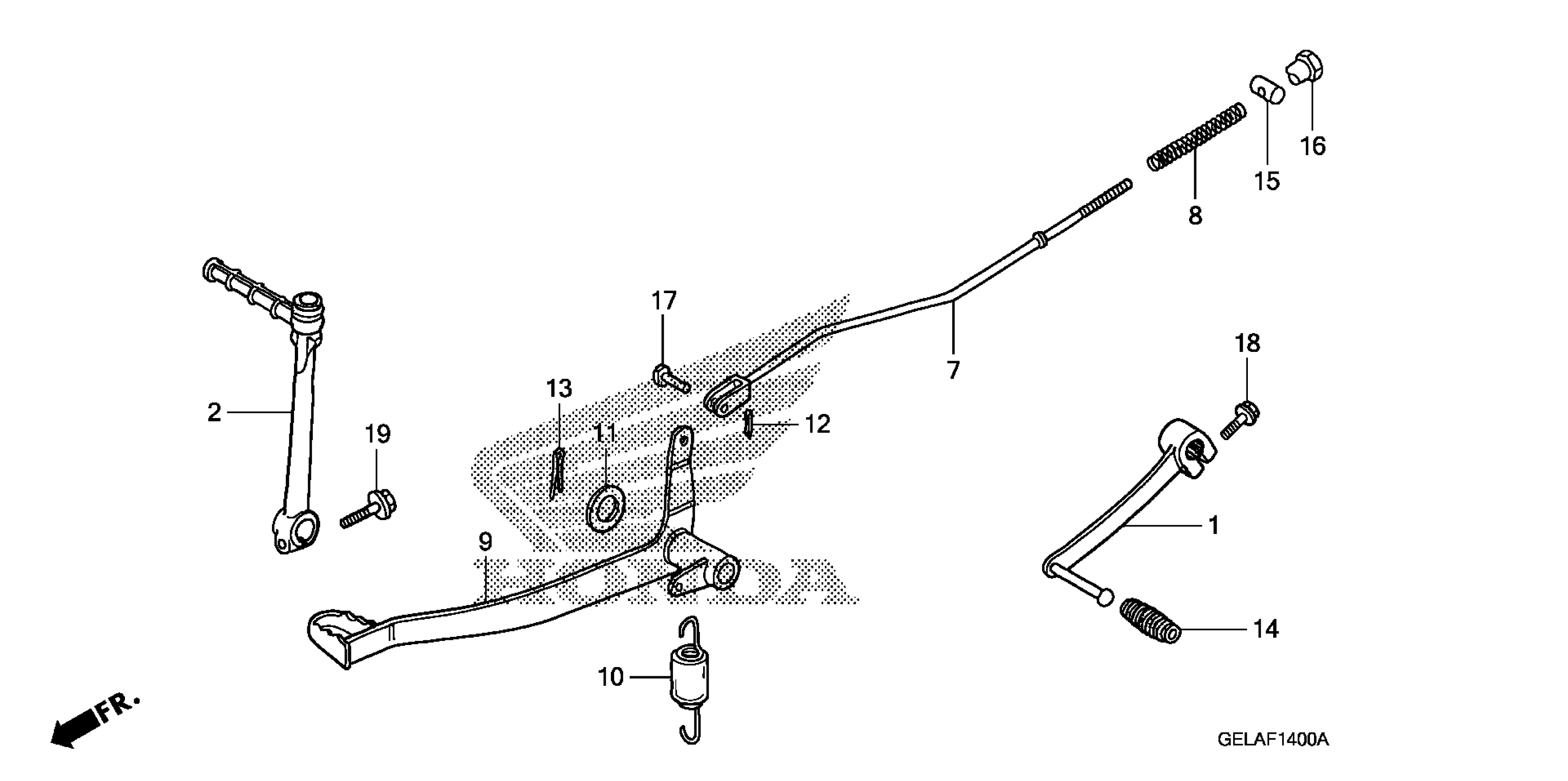

Honda CRF50FAC (12) CRF50F, JPN, VIN# JH2AE031-CK000001 BRAKE PEDAL + KICK STARTER ARM Diagram

PEDAL, GEARSHIFT This part replaces 24701-GEL-305.

24701-GEL-770

$27.44

PEDAL, GEARSHIFT

24701-GEL-770

$27.44

ARM ASSY., KICK STARTER (COO) This part replaces 28300-GEL-A00.

28300-GEL-305

$76.13

ARM ASSY., KICK STARTER (COO)

28300-GEL-305

$76.13

ROD, RR. BRAKE

43451-GEL-700

$12.82

SPRING A, BRAKE ROD

43472-KB9-750

$2.88

PEDAL, BRAKE

46500-GEL-A00

$50.94

PEDAL, BRAKE This part replaces 46500-GEL-305.

46500-GEL-A00

$50.94

SPRING ASSY., RR. BRAKE PEDAL

46511-GEL-700

$5.19

WASHER, PLAIN (14MM)

94102-14000

$0.59

PIN, SPLIT (2.0X12)

94201-20120

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

PIN, SPLIT (3.0X45)

94201-30450

$0.94

RUBBER, CHANGE PEDAL

95011-40000

$1.14

JOINT A, BRAKE ARM

95015-31001

$1.46

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.28

PIN C, JOINT

95015-53000

$2.85

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable
