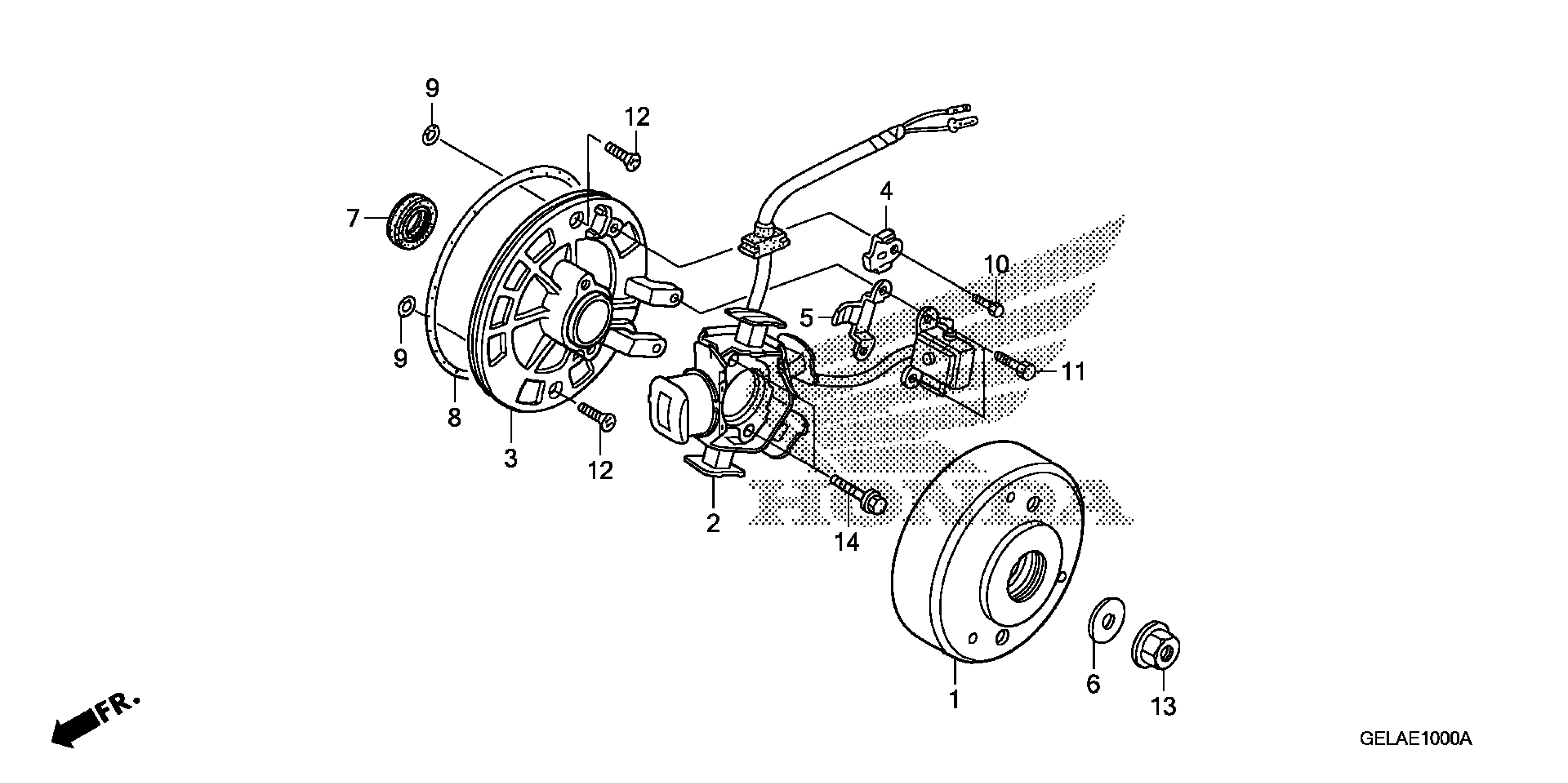

Honda CRF50FAC (12) CRF50F, JPN, VIN# JH2AE031-CK000001 ALTERNATOR Diagram

FLYWHEEL (MITSUBA)

31110-GK4-941

$231.13

STATOR (MITSUBA)

31120-GW8-671

$217.51

BASE, STATOR

31131-GS9-020

$47.55

CLAMP, ALTERNATOR WIRE

32961-GS9-010

$4.24

CLAMP, PULSER WIRE

32962-GS9-000

$4.94

WASHER (10MM)

90410-HC4-000

$3.81

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-003.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5) This part replaces 91202-GE0-015.

91202-GK4-722

$6.14

OIL SEAL (18.9X30X5)

91202-GK4-722

$6.14

O-RING (107X2) (ARAI)

91301-035-003

$7.05

O-RING (6X1.7) (ARAI)

91317-171-003

$2.92

BOLT, HEX. (5X6)

93301-05006-0H

$1.49

BOLT, HEX. (5X10)

93301-05010-0H

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X22)

96001-06022-00

$1.49
