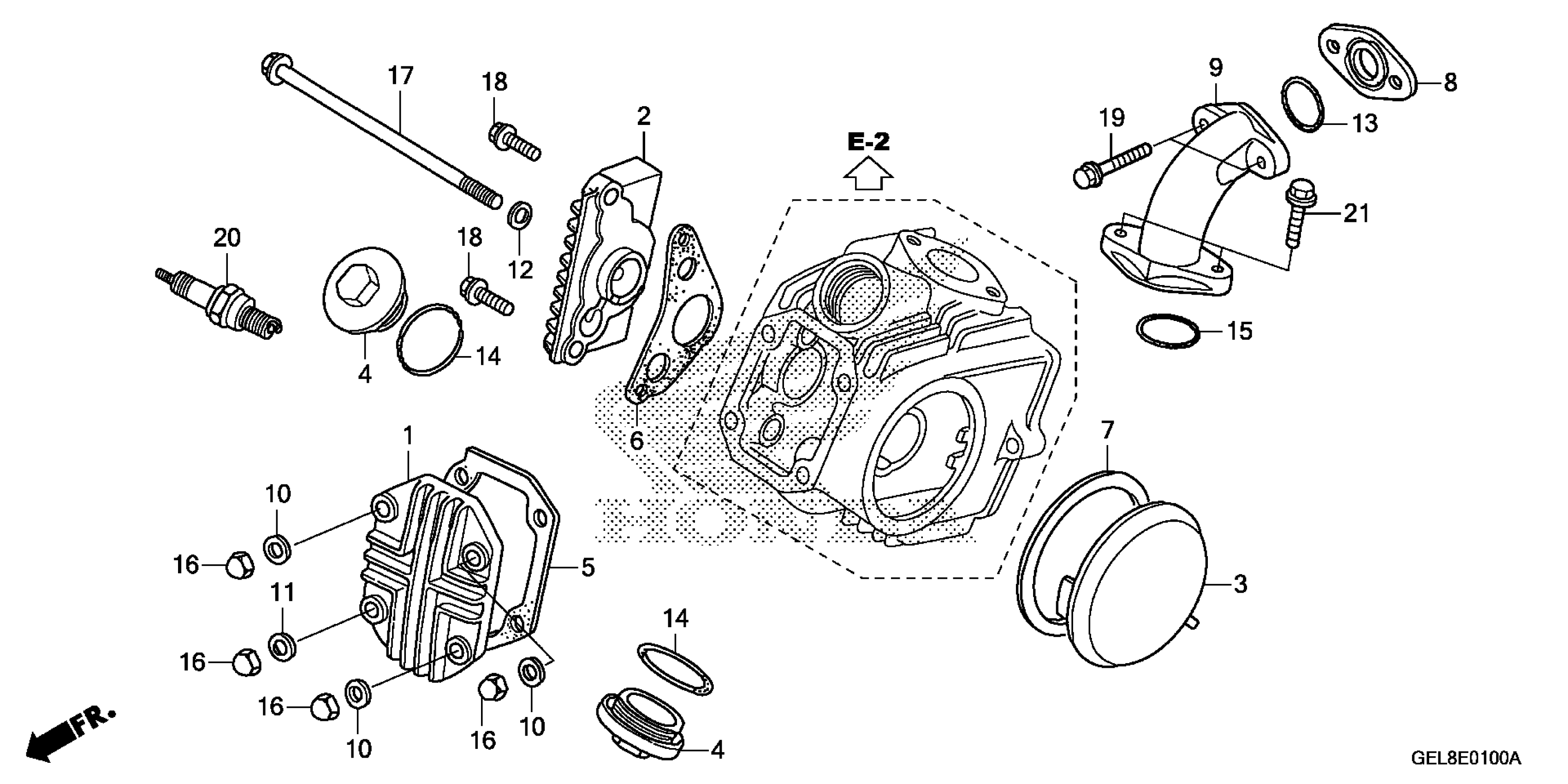

Honda CRF50FA (18) MOTORCYCLE, CHN, VIN# LALAE044-J3000001 CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

12301-GEL-A80

$26.36

2

COVER, R. CYLINDER HEAD SIDE

12331-KVR-C00

$25.05

3

COVER, L. CYLINDER HEAD SIDE

12341-KVR-C00

$27.36

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

5

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-681.

12391-KVM-C20

$4.15

5

GASKET, CYLINDER HEAD COVER

12391-KVM-C20

$4.15

6

GASKET, R. CYLINDER HEAD SIDE COVER This part replaces 12394-GW8-681.

12394-GW8-682

$4.17

6

GASKET, R. CYLINDER HEAD SIDE COVER

12394-GW8-682

$4.17

7

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-681.

12395-GW8-682

$4.94

7

GASKET, L. CYLINDER HEAD SIDE COVER

12395-GW8-682

$4.94

8

INSULATOR, CARBURETOR

16211-GEL-A80

$9.05

9

PIPE, INLET

17111-GEL-A80

$34.67

10

WASHER, SEALING (6MM)

90442-GEL-A80

$2.95

11

WASHER A, SEALING (6MM)

90443-GEL-A80

$2.15

12

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

13

O-RING (18X1.9) (NOK)

91301-GEL-A80

$3.30

14

O-RING (30.5X3.2)

91302-GEL-A80

$3.62

15

O-RING (27X2.0)

91313-KVR-C00

$2.92

16

NUT, CAP (6MM)

94021-06200-0S

$1.62

17

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

18

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

19

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

20

SPARK PLUG (CR5HSA) (NGK) | (Optional).

98056-55718

$2.62

20

SPARK PLUG (U16FSR-U) (DENSO) | (Optional).

98056-55726

$2.54

20

SPARK PLUG (CR6HSA) (NGK)

98056-56718

$2.62

20

SPARK PLUG (U20FSR-U) (DENSO)

98056-56726

$2.54

20

SPARK PLUG (CR7HSA) (NGK) | (Optional).

98056-57718

$2.62

20

SPARK PLUG (U22FSR-U) (DENSO) | (Optional).

98056-57726

$2.54

21

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95
