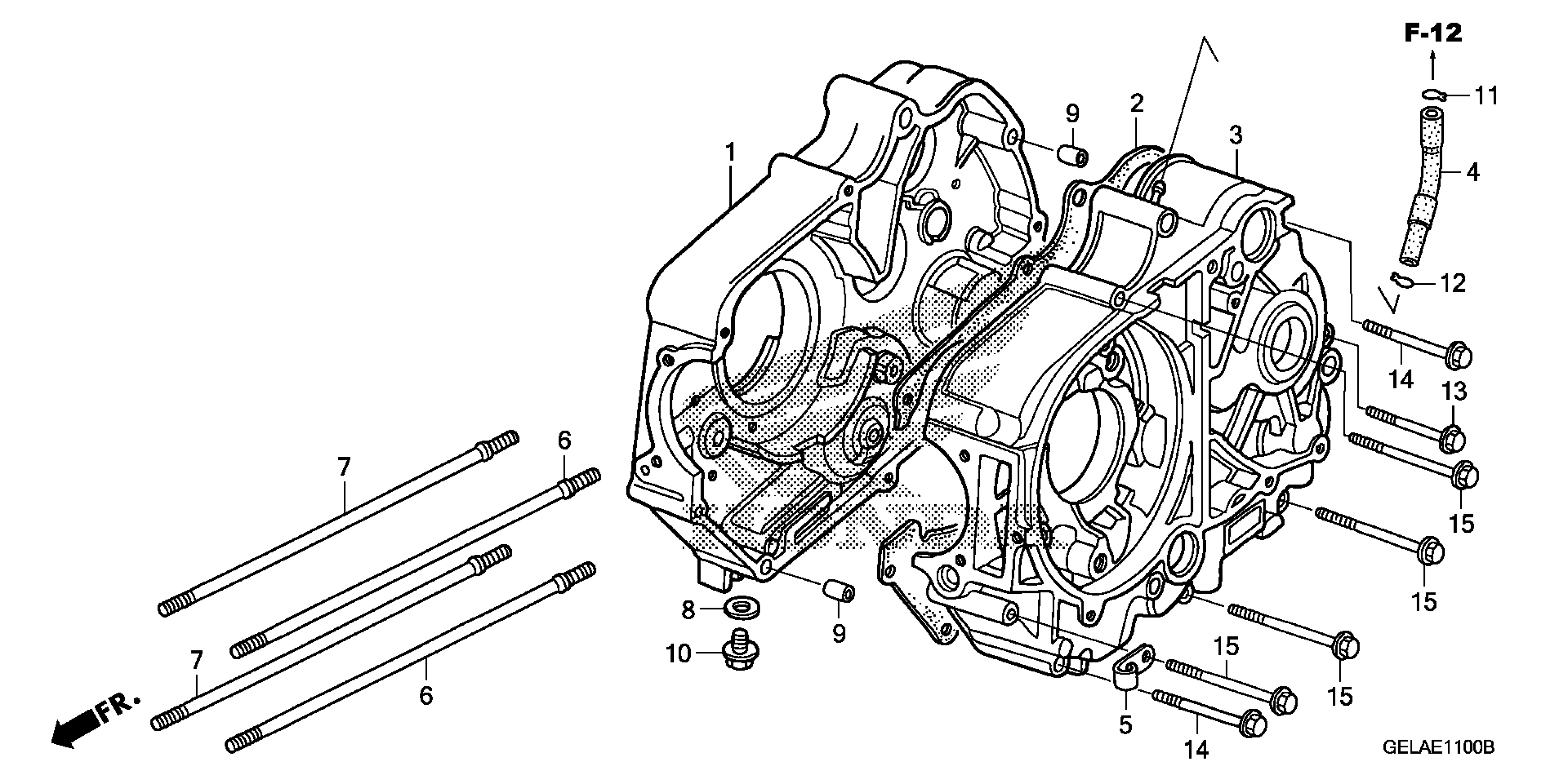

Honda CRF50FA (09) MOTORCYCLE, JPN, VIN# JH2AE030-9K900001 TO JH2AE030-9K999999 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-GB4-010.

11100-GEL-A80

$255.35

GASKET, CRANKCASE This part replaces 11191-GW8-680.

11191-GW8-682

$13.13

CRANKCASE, L.

11200-GW8-670

$297.06

TUBE A, BREATHER

15761-GCF-A20

$5.83

CLAMP, OVERFLOW PIPE

16236-045-010

Unavailable

BOLT A, CYLINDER STUD (196MM)

90031-035-010

$5.21

BOLT B, CYLINDER STUD (188MM)

90032-035-000

$5.21

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.71

PIN A, DOWEL (10X14) This part replaces 90703-HC4-000.

94301-10140

$2.80

PIN A, DOWEL (10X14)

94301-10140

$2.80

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.26

CLIP, TUBE (B10)

95002-02100

$1.75

CLIP, TUBE (C9)

95002-50000

$1.16

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

BOLT, FLANGE (6X60)

96001-06060-00

$2.69

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable
