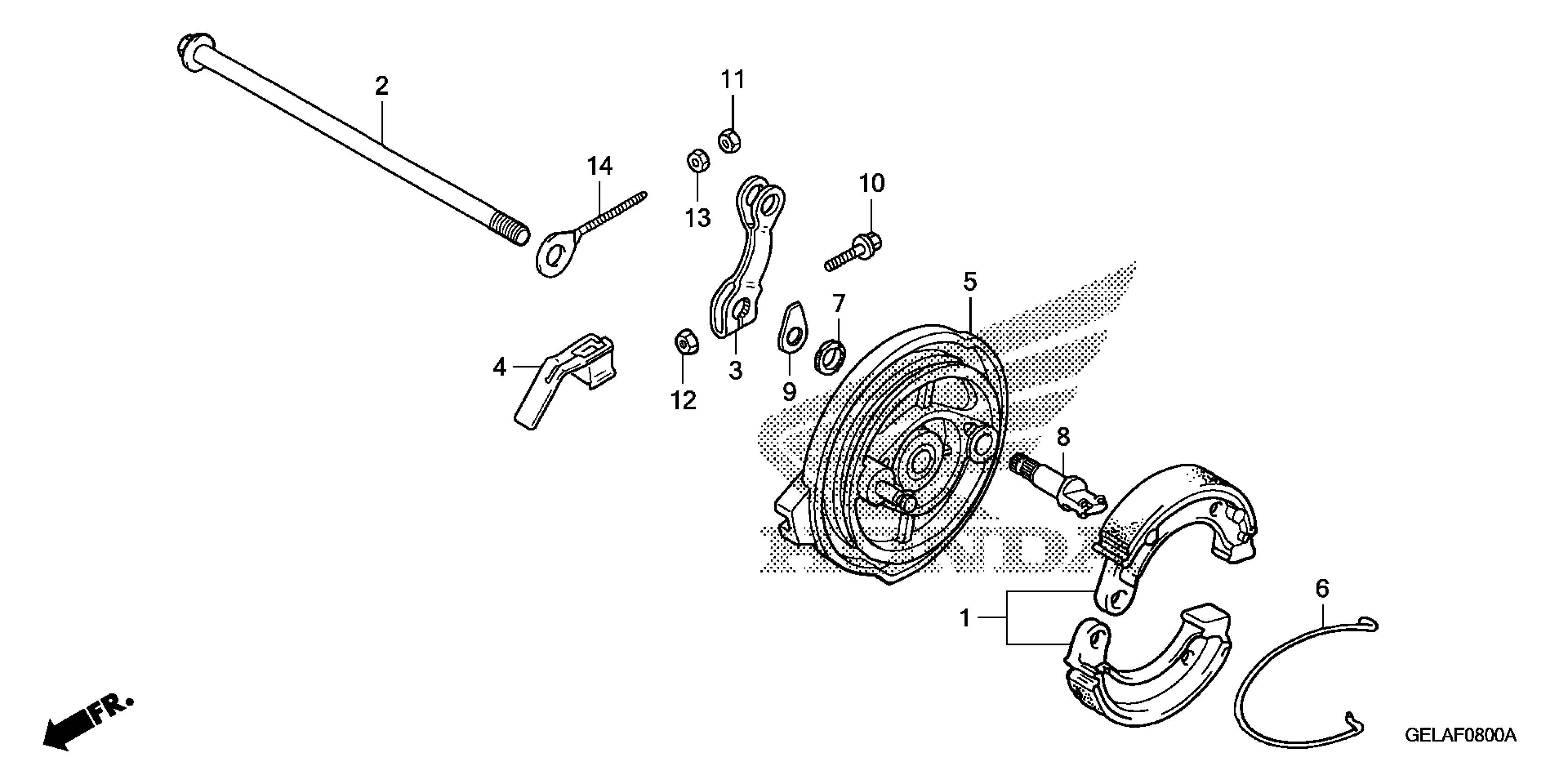

Honda CRF50FA (05) MOTORCYCLE, JPN, VIN# JH2AE030-5K500001 TO JH2AE030-5K599999 REAR BRAKE PANEL Diagram

Description

Price

SHOE SET, BRAKE This part replaces 06430-GZ9-003.

06430-131-405

$15.33

SHOE SET, BRAKE

06430-131-405

$15.33

AXLE, RR. WHEEL (RR.)

42301-GCF-670

$15.48

ARM, RR. BRAKE (RR.)

43410-GEL-700

$7.96

COVER, RR. BRAKE ARM

43411-GEL-700

$8.20

PANEL, FR. BRAKE NH146M (ACCURATE SILVER METALLIC) (RR.) (FOR RR.) | Extreme red R292R;

45100-181-831ZC

$53.02

SPRING, BRAKE SHOE

45133-044-000

$2.31

SEAL, BRAKE CAM

45134-165-890

$1.57

CAM, FR. BRAKE (RR.) (FOR RR.)

45141-147-040

$11.25

INDICATOR, BRAKE

45145-GW8-670

$3.65

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

NUT, SPECIAL (6MM)

90302-KBP-900

$1.94

NUT, HEX. (5MM)

94001-05000-0S

$2.74

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)
