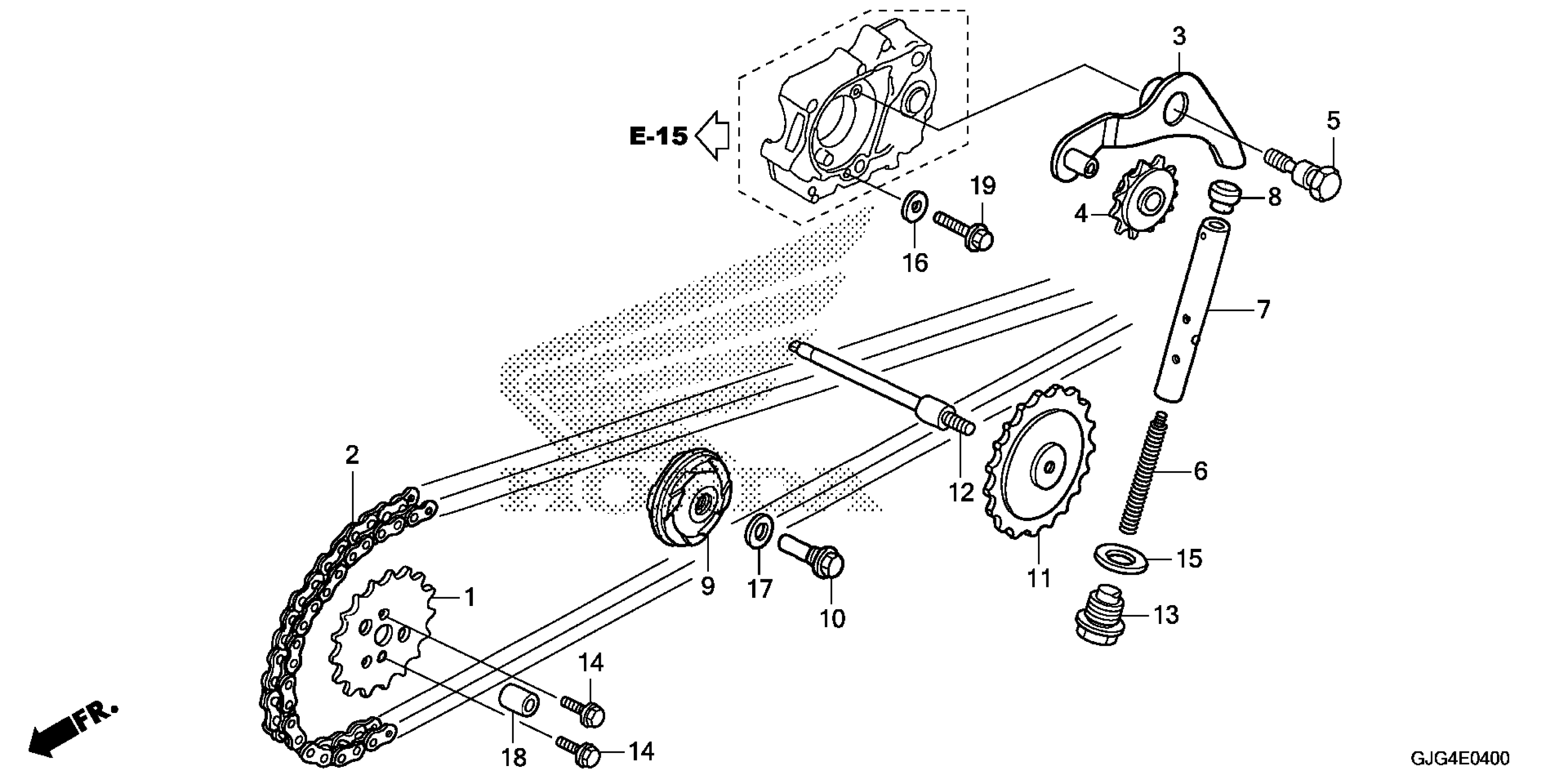

Honda CRF50F2AC (26) MOTORCYCLE, CHN, VIN# LALAE041-T3100002 TO LALAE041-T3199999 CAM CHAIN@TENSIONER Diagram

SPROCKET, CAM (28T)

14321-KVR-C00

$23.33

CHAIN, CAM (82L)

14401-GEL-A80

$35.10

ARM, CAM CHAIN TENSIONER

14500-KVR-C00

$21.46

ROLLER, CAM CHAIN TENSIONER

14502-KZV-J00

$16.33

PIVOT, CAM CHAIN TENSIONER

14531-KVR-C00

$3.77

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

ROD, TENSIONER PUSH

14550-KVR-C00

$18.81

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

ROLLER, CAM CHAIN GUIDE

14610-KYY-901

$19.41

PIN, GUIDE ROLLER

14615-KVR-C00

$4.49

SPROCKET, CAM CHAIN GUIDE (25T)

14670-KVR-C00

$28.72

SPINDLE, CAM CHAIN GUIDE SPROCKET

14675-KVR-C00

$22.72

BOLT, SEALING (14MM)

90081-035-000

$4.24

BOLT, KNOCK (5MM)

90083-KRM-840

$1.49

WASHER, SEALING (14MM)

90441-KVR-C00

$2.46

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.49

WASHER (8MM)

90475-KWB-600

$1.49

PIN, DOWEL SPECIAL (8X12)

90702-KVR-C00

$4.51

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62
