Description

Price

1

SPOKE SET, FR. (240MM)

06440-KZ4-J40

$4.28

2

SENSOR, FR. WHEEL SPEED

38520-MKE-A51

$174.13

3

CLIP, WIRE

38525-MKE-A51

$3.85

4

CAP, VALVE

42714-KA3-710

$9.60

5

AXLE, FR. WHEEL

44301-MEN-000

$46.93

6

COLLAR, L. FR. WHEEL

44311-MKE-A60

$16.04

7

COLLAR, R. FR. WHEEL

44312-KRN-A30

$17.64

8

RING, FR. PULSER

44515-MKE-A50

$25.07

9

COLLAR, FR. DISTANCE

44620-MAC-680

$20.43

10

HUB SUB-ASSY., FR. WHEEL

44635-MAC-680

$162.68

11

WHEEL SUB-ASSY., FR.

44650-MKE-A40

$764.60

12

RIM, FR. WHEEL (21X1.60)

44701-MKE-A71

$242.63

13

TIRE (80/100-21 51M)

44711-KRN-A92

$126.14

14

TUBE, TIRE (DUNLOP) This part replaces 44712-400-024.

44712-400-034

$40.41

14

TUBE, TIRE (DUNLOP)

44712-400-034

$40.41

15

FLAP, TIRE (80/100-21) (DUNLOP)

44713-KS6-641

$5.80

16

STOPPER, BEAD (1.60)

44715-MA0-770

$33.77

17

DISK, FR. BRAKE

45351-MKE-A40

$219.09

18

COVER, FR. DISK NH1 (BLACK)

51614-MKE-A50ZA

$30.19

19

BOLT, DISK (6X19)

90105-MAC-680

$4.77

20

BOLT, FR. DISK COVER (FOR RR.)

90114-MAC-780

$2.95

21

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.04

22

BOLT, TORX (5X8)

90131-MGE-000

$2.80

23

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

24

NUT, FR. AXLE

90301-KZ4-J40

$15.47

25

BAND, RUBBER (35MM)

90650-KZZ-J80

$2.80

26

BEARING, RADIAL BALL (6904)

91062-MAC-681

$21.88

27

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$10.44

28

NUT, HEX. (8MM)

94001-08000-0S

$1.21

29

WASHER, SPRING (8MM)

94111-08000

$0.91

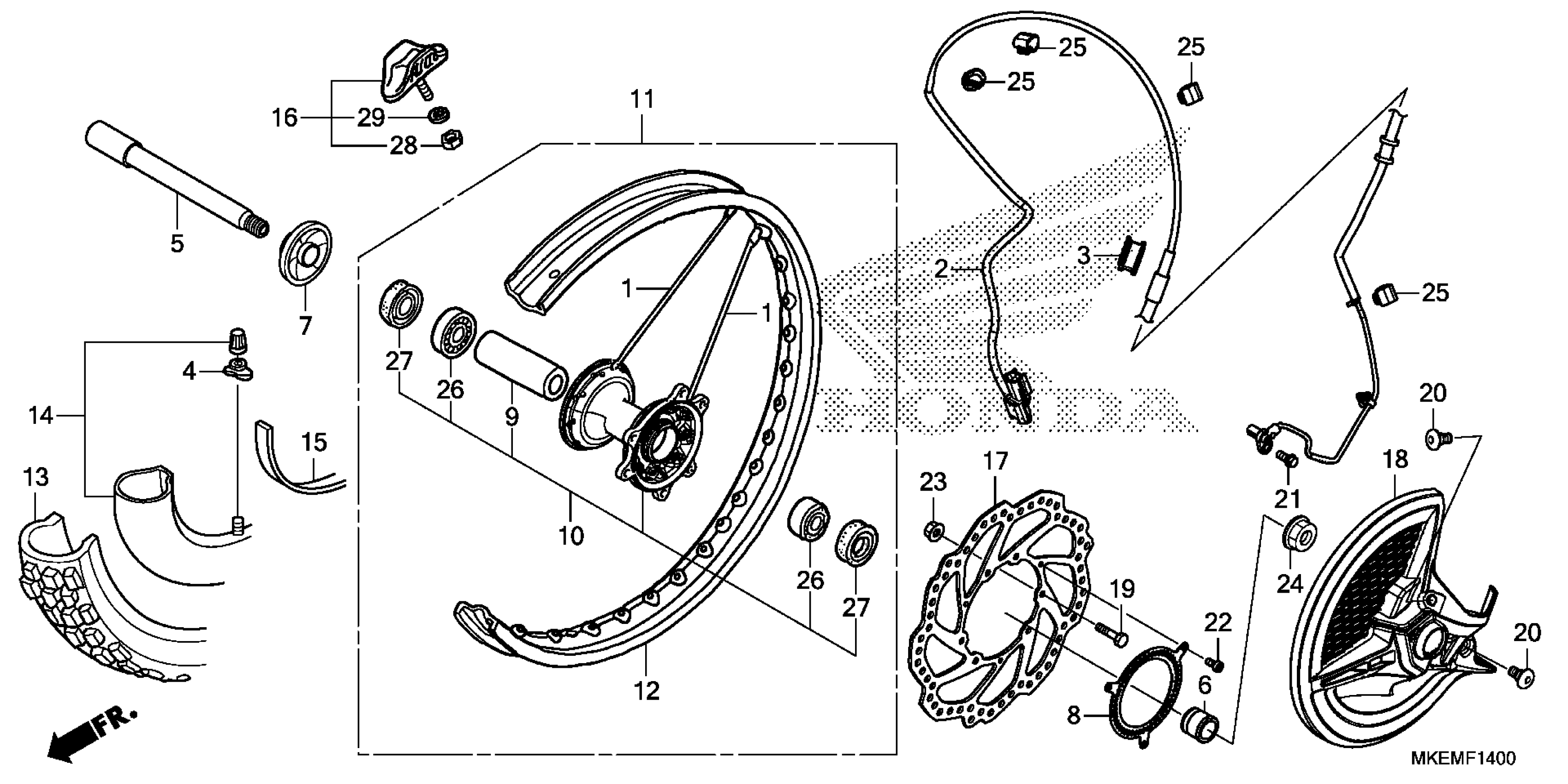

Honda CRF450XAC (25) MOTORCYCLE, JPN, VIN# JH2PE091-SK600001 TO JH2PE091-SK699999 FRONT WHEEL Diagram
