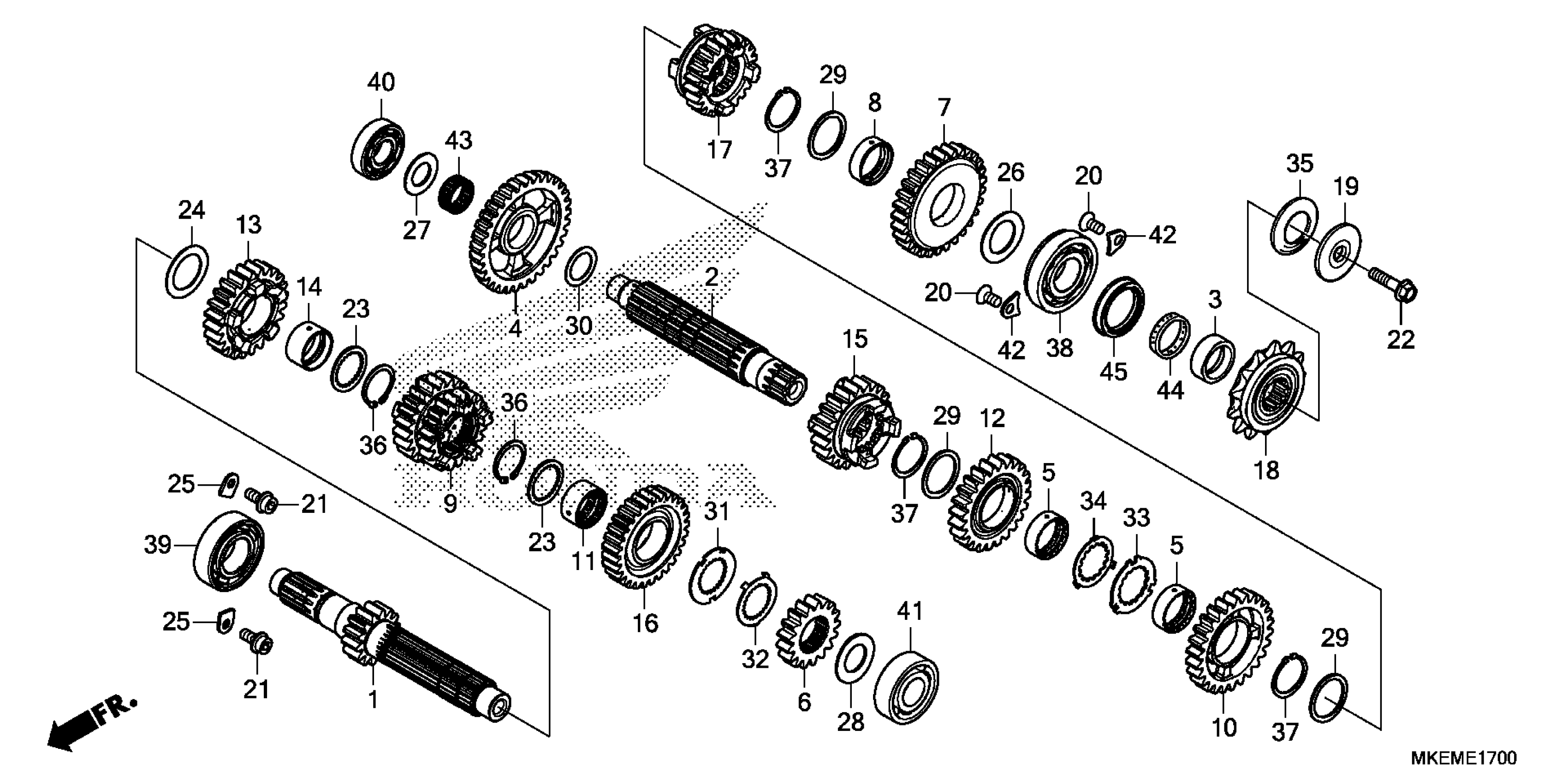

Honda CRF450XAC (23) MOTORCYCLE, JPN, VIN# JH2PE091-PK400001 TO JH2PE091-PK499999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T)

23210-MKE-A50

$163.92

2

COUNTERSHAFT

23221-MKE-A50

$152.80

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$14.95

4

GEAR, COUNTERSHAFT FIRST (33T)

23421-MKE-A50

$110.20

5

COLLAR, SPLINE (28X10)

23422-MV1-000

$19.44

6

GEAR, MAINSHAFT SECOND (17T)

23431-MKE-A50

$56.20

7

GEAR, COUNTERSHAFT SECOND (29T)

23441-MKE-A50

$104.38

8

COLLAR (28MM)

23442-MM4-000

$23.62

9

GEAR, MAINSHAFT THIRD & FOURTH (20T/22T)

23451-MKE-A50

$136.49

10

GEAR, COUNTERSHAFT THIRD (26T)

23461-MKE-A50

$104.38

11

COLLAR, SPLINE (26X14.3)

23462-MKE-A00

$16.51

12

GEAR, COUNTERSHAFT FOURTH (24T)

23481-MKE-A50

$103.46

13

GEAR, MAINSHAFT FIFTH (24T)

23491-MKE-A50

$102.43

14

COLLAR (26X29X15)

23492-MKE-A50

$18.82

15

GEAR, COUNTERSHAFT FIFTH (22T)

23501-MKE-A50

$115.10

16

GEAR, MAINSHAFT SIXTH (29T)

23511-MKE-A50

$106.30

17

GEAR, COUNTERSHAFT SIXTH (23T)

23521-MKE-A50

$115.10

18

SPROCKET, DRIVE (13T)

23801-MKE-A50

$47.55

19

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.68

20

SCREW, SPECIAL FLAT (6X12)

90003-KRN-670

$2.03

21

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

22

BOLT, UBS (8X33)

90112-413-000

$3.85

23

WASHER, SPLINE (26MM)

90402-HP6-A00

$2.39

24

WASHER, THRUST (26MM) (NOT AVAILABLE)

90407-415-000

$5.64

25

PLATE, BEARING HOLDER

90441-KRM-840

$1.49

26

WASHER, THRUST (24.1X37X1.5)

90445-MEN-A70

$3.38

27

WASHER, THRUST (17.1X30X1.5)

90446-MKE-A00

$3.43

28

WASHER, THRUST (20MM)

90451-MEW-D40

$2.84

29

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

30

WASHER, THRUST (20MM) (SOURCE: VINTAGE PARTS INC.)

90453-360-000

$3.30

31

WASHER, SPLINE (26MM)

90461-MKE-A00

$3.16

32

WASHER, LOCK (26MM)

90462-MKE-A00

$3.36

33

WASHER, SPLINE (28MM)

90463-MCJ-000

$5.56

34

WASHER, LOCK (28MM)

90464-MCJ-000

$5.56

35

WASHER, SPRING (24MM)

90501-KSC-670

$4.26

36

CIRCLIP, SPECIAL (OUTER) (26MM)

90602-MKE-A00

$2.84

37

CIRCLIP (28MM)

90603-MN4-000

$4.11

38

BEARING, RADIAL BALL (24X56X14) (NTN)

91001-MEN-A71

$14.84

39

BEARING, RADIAL BALL SPECIAL (6205U)

91003-MKE-A51

$26.30

40

BEARING, RADIAL BALL (17X40X11)

91006-MKE-A51

$20.67

41

BEARING, RADIAL BALL (6204U SPL.) (KOYO)

91011-HN2-004

$17.08

42

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

43

BEARING, NEEDLE (20X24X9.6)

91023-MKE-A51

$10.66

44

D-RING (23.75MM)

91201-MKE-A71

$3.06

45

OIL SEAL (31X40X7)

91207-MKE-A51

$8.98
