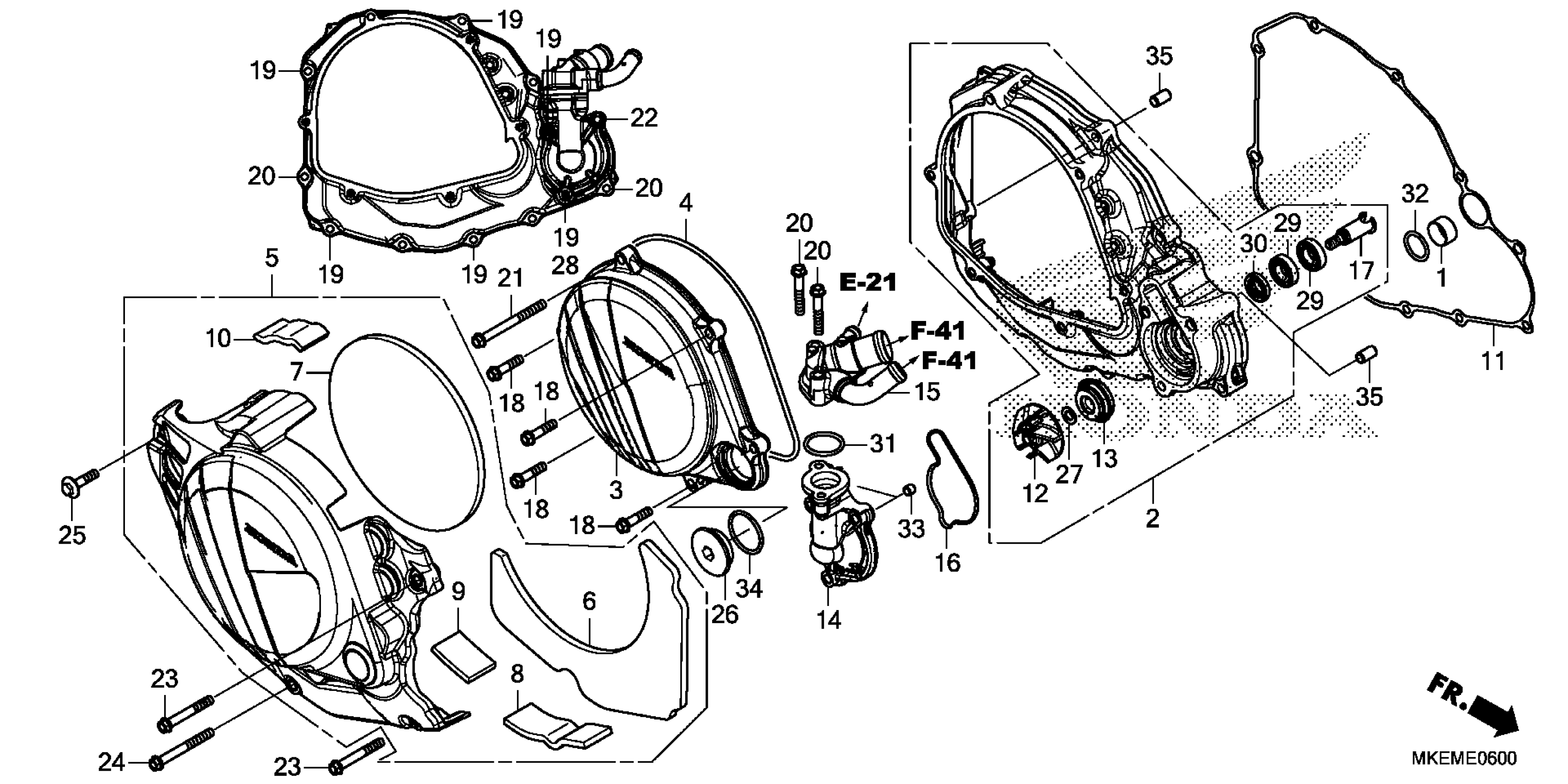

Honda CRF450XAC (23) MOTORCYCLE, JPN, VIN# JH2PE091-PK400001 TO JH2PE091-PK499999 RIGHT CRANKCASE COVER @WATER PUMP Diagram

#

Description
Price

1

COLLAR, WATER PASS

11102-MKE-A00

$4.12

2

COVER ASSY., R. CRANKCASE

11330-MKE-A50

$280.06

3

COVER, CLUTCH

11351-MKE-A50

$132.12

4

GASKET, CLUTCH COVER

11352-MKE-A70

$11.32

5

OVER COVER, R. CRANKCASE

11360-MKE-A50

$90.81

6

MAT A, R. COVER

11365-MKE-A50

$5.60

7

MAT B, R. COVER

11366-MKE-A50

$6.79

8

MAT C, R. COVER

11367-MKE-A50

$1.57

9

MAT D, R. COVER

11368-MKE-A50

$0.79

10

MAT E, R. COVER

11369-MKE-A50

$1.49

11

GASKET, R. COVER

11394-MKE-A71

$28.14

12

IMPELLER, WATER PUMP

19215-MEN-850

$39.09

13

SEAL, MECHANICAL

19217-KRN-A61

$42.59

14

COVER, WATER PUMP

19221-MKE-A50

$82.68

15

JOINT, FOUR-WAY WATER

19225-MKE-A50

$68.74

16

GASKET, WATER PUMP

19226-MKE-A00

$4.88

17

SHAFT, WATER PUMP

19241-MKE-A50

$64.43

18

BOLT, FLANGE (6X25)

90020-GHB-680

$2.09

19

BOLT, FLANGE (6X28)

90020-GHB-690

$2.15

20

BOLT, FLANGE (6X35)

90020-GHB-720

$2.29

21

BOLT, FLANGE (6X65)

90020-GHB-790

$2.82

22

BOLT, FLANGE (6X75)

90020-GHB-810

$2.97

23

BOLT, FLANGE (6X45)

90025-GHB-750

$2.80

24

BOLT, FLANGE (6X55)

90025-GHB-770

$3.03

25

BOLT, FLANGE (6X25)

90041-MKE-A50

$2.79

26

CAP (30MM)

90087-MKE-A50

$12.56

27

WASHER, SEALING (7MM)

90447-KE1-000

$2.46

28

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

29

BEARING, BALL (12X24X6)

91002-MEN-A31

$8.12

30

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.87

30

OIL SEAL (12X22X5)

91201-965-000

$3.87

31

O-RING (2.4X24.5)

91301-MKE-A50

$2.22

32

O-RING (2.4X19)

91302-MKE-A70

$1.76

33

PIN, DOWEL (8X7)

91320-KE1-000

$2.06

34

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80

35

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62
