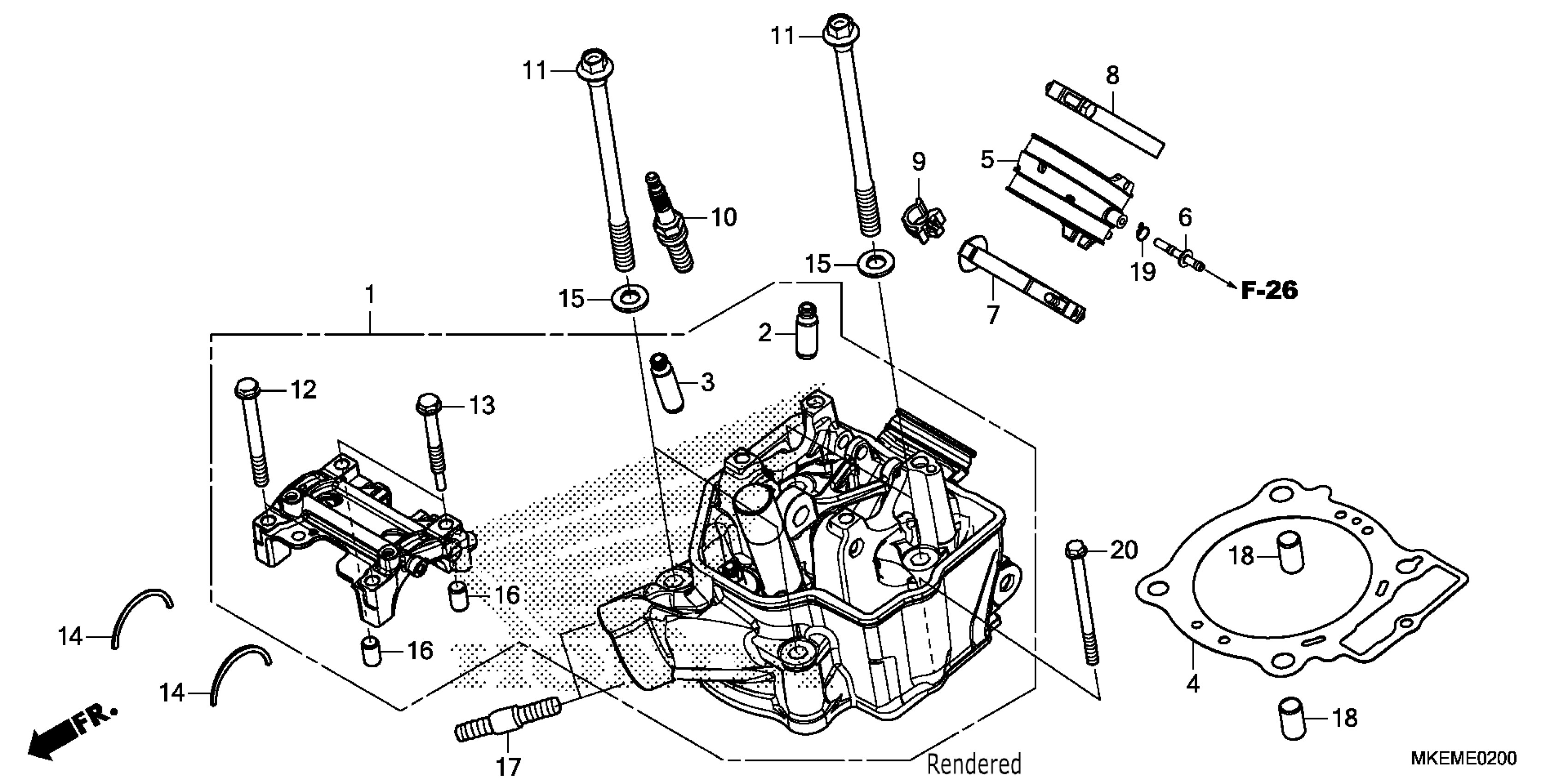

Honda CRF450XAC (23) MOTORCYCLE, JPN, VIN# JH2PE091-PK400001 TO JH2PE091-PK499999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MKE-A50

$645.46

GUIDE, VALVE (OVER SIZE)

12204-MKE-P00

$14.02

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$14.23

GASKET, CYLINDER HEAD

12251-MKE-A71

$37.56

INSULATOR, THROTTLE BODY

16211-MKE-A50

$14.79

JOINT, PURGE

16215-MKE-A50

$12.74

BAND, INSULATOR

16217-MKE-A50

$11.74

BAND, INSULATOR

16218-MEN-A50

$6.56

CLIP, TUBE

16731-ZE2-003

$2.21

SPARK PLUG (SILMAR9A9S) (NGK)

31909-MEN-A31

$16.78

SPARK PLUG (SILMAR10A9S) (NGK) | (Optional).

31910-MEN-A31

$16.78

BOLT, FLANGE (10X148)

90001-MKE-A50

$10.78

BOLT, FLANGE (7X65)

90003-MKE-A00

$2.85

BOLT, SPECIAL (7X45)

90005-MKE-A00

$2.85

WASHER, CAMSHAFT THRUST

90446-KRN-670

Unavailable

WASHER, PLAIN (10MM)

90453-MKE-A00

$2.62

PIN, DOWEL (9X14)

90701-MR7-000

$4.10

BOLT, STUD (8X22)

92900-08022-0B

$2.54

PIN A, DOWEL (12X20)

94301-12200

$2.80

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.62

BOLT, FLANGE (6X80) BOLT, FLANGE (6X50)

96001-06080-00

$2.04
