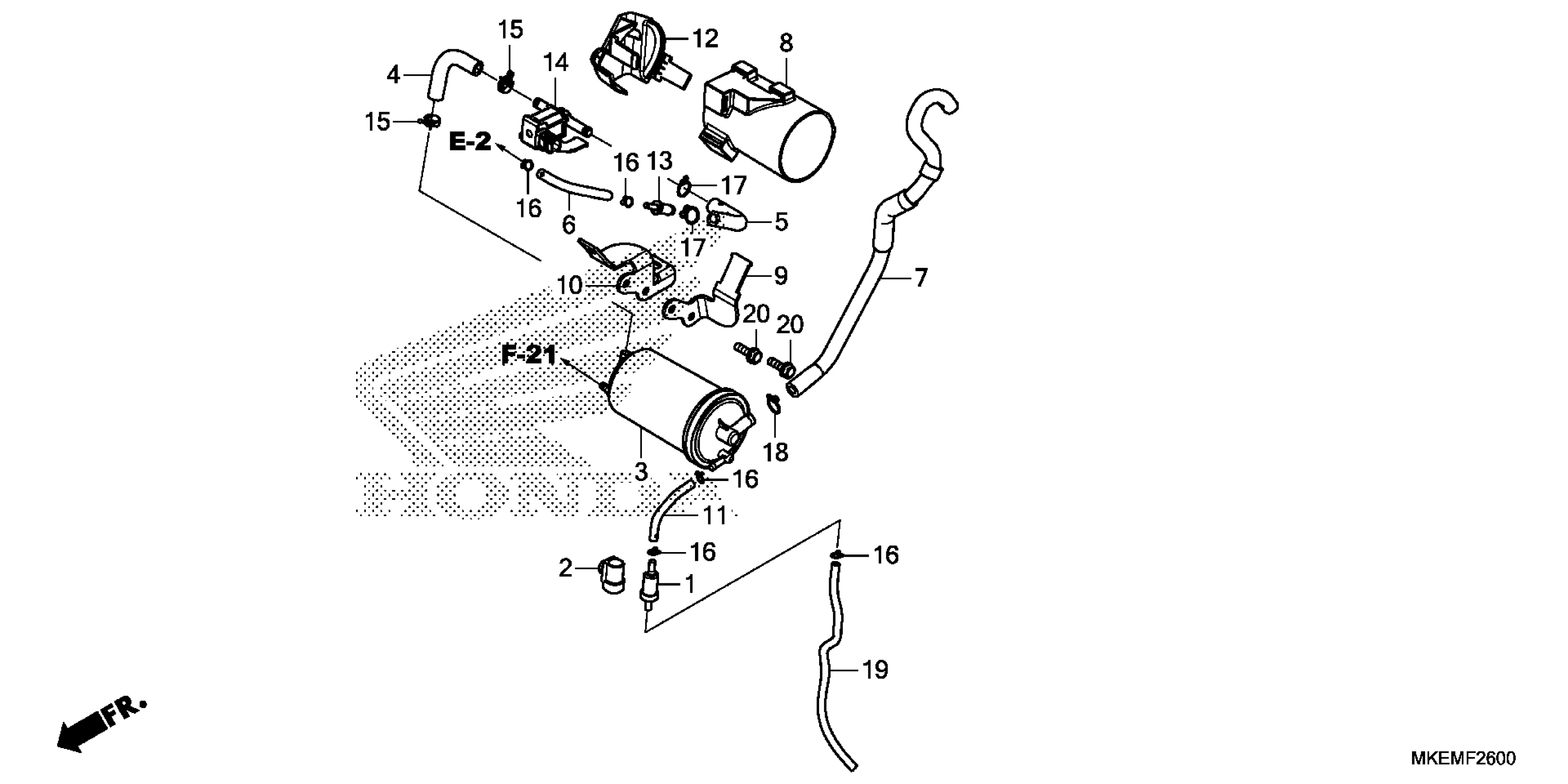

Honda CRF450XAC (23) MOTORCYCLE, JPN, VIN# JH2PE091-PK400001 TO JH2PE091-PK499999 CANISTER Diagram

VALVE, ONE-WAY

16180-HC4-003

$18.02

RUBBER, VALVE

16185-MKE-A50

$5.05

CANISTER

17310-MKE-A51

$179.70

TUBE (CANISTER-PCSV)

17312-MKE-A50

$3.13

TUBE, PURGE CONTROL VALVE JOINT

17313-MKE-A50

$5.77

TUBE, JOINT-INSULATOR

17314-MKE-A50

$2.48

TUBE, AIR

17315-MKE-A50

$38.30

RUBBER, CANISTER

17316-MKE-A50

$44.03

STAY A, CANISTER

17317-MKE-A50

$8.52

STAY B, CANISTER

17318-MKE-A50

$10.92

TUBE, DRAIN

17319-MKE-A50

$1.49

GUARD, CANISTER

17321-MKE-A50

$12.41

JOINT, TUBE

19126-KM1-010

$3.90

VALVE, PURGE CONTROL SOLENOID

36162-MKE-A51

$130.08

CLAMP, TUBE (12.0)

90651-HN6-A51

$2.07

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (B12.5)

95002-02130

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X350)

95005-35001-50M

$13.72

BOLT, FLANGE (6X18)

96300-06018-00

$1.49
