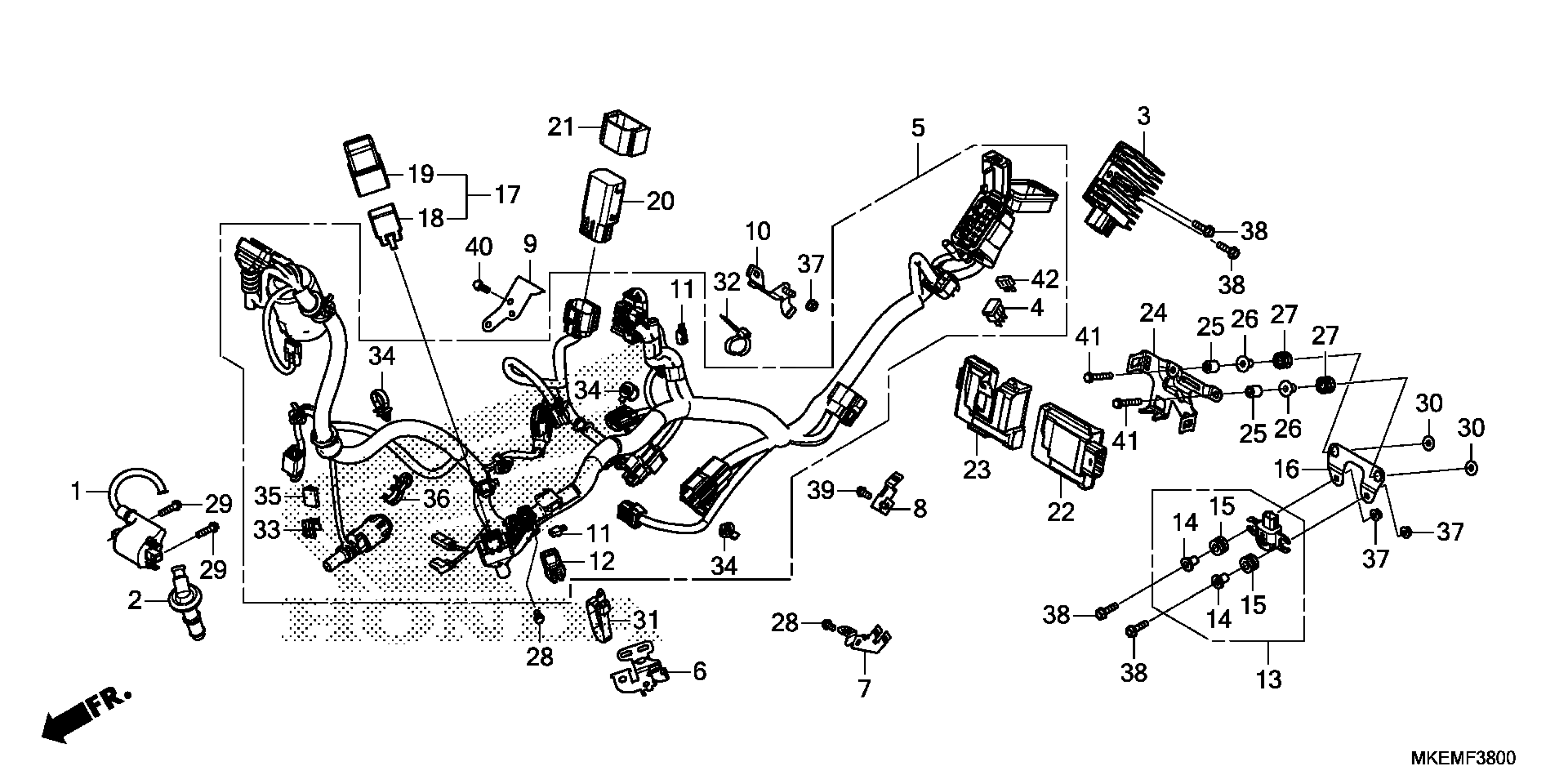

Honda CRF450XAC (21) MOTORCYCLE, JPN, VIN# JH2PE091-MK200001 TO JH2PE091-MK299999 WIRE HARNESS Diagram

#

Description
Price

1

COIL ASSY., IGNITION

30500-MKE-A01

$63.33

2

CAP ASSY., NOISE SUPPRESSOR

30700-MKE-A01

$51.99

3

RECTIFIER ASSY., REGULATE

31600-K87-A01

$99.29

4

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

5

WIRE HARNESS

32100-MKE-A42

$713.40

6

STAY, HARNESS

32111-MKE-A50

$6.90

7

STAY, HARNESS (L)

32125-MKE-A50

$5.13

8

STAY, CONNECTOR (L)

32126-MKE-A50

$7.00

9

STAY, CABLE

32127-MKE-A50

$7.00

10

STAY, HARNESS

32129-MKE-A50

$6.90

11

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$14.77

12

CAP, DUMMY (WPC 4P 090 M) (RED)

32606-K44-V01

$6.56

13

SENSOR ASSY., BANK ANGLE

35160-MKE-A51

$78.88

14

COLLAR

35161-MKE-A51

$4.50

15

GROMMET

35163-MGC-003

$2.07

16

STAY, BANK ANGLE SENSOR

35165-MKE-A50

$8.74

17

RELAY ASSY., STARTER

38500-GC7-612

$46.35

18

RELAY, STARTER (MITSUBA)

38501-GN2-014

$45.58

19

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.28

20

RELAY, WATERPROOF (15AX2) (Honda Code 8557167)

38580-HP5-601

$42.59

21

CUSHION, RELAY

38585-MKE-A11

$5.03

22

PGM-FI UNIT (NOT AVAILABLE)

38770-MKE-AJ1

$631.65

23

SUSPENSION, PGM-FI UNIT

38771-MKE-A00

$10.16

24

BRACKET, ECU

50124-MKE-A00

$17.10

25

COLLAR, ECU BRACKET

50125-MKE-A50

$4.41

26

COLLAR

61104-MKE-A50

$4.03

27

RUBBER, MOUNT

84703-MKE-A50

$4.82

28

BOLT, FLANGE (6X10)

90020-GHB-610

$1.96

29

BOLT, FLANGE (6X25)

90020-GHB-680

$2.09

30

WASHER (6.1MM)

90535-MKE-A00

$2.29

31

BAND, WIRE HARNESS (Honda Code 1746650)

90650-MA6-720

$5.40

32

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

33

CLIP, HARNESS BAND (145MM) (BLACK)

91531-TG1-003

$1.18

34

CLIP, HARNESS BAND (145MM) (BLACK)

91541-S0A-003

Unavailable

35

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

36

CLIP, TUBE (11MM) (BLACK)

91558-P5G-A01

$7.50

37

NUT, FLANGE (6MM)

94050-06080

$0.60

38

BOLT, FLANGE (6X22)

95701-06022-08

$1.79

39

BOLT, FLANGE (6X10)

96001-06010-00

$1.60

40

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

41

BOLT, FLANGE (6X38)

96001-06038-00

$0.50

42

FUSE, MINI (10A)

98200-41000

$1.22
