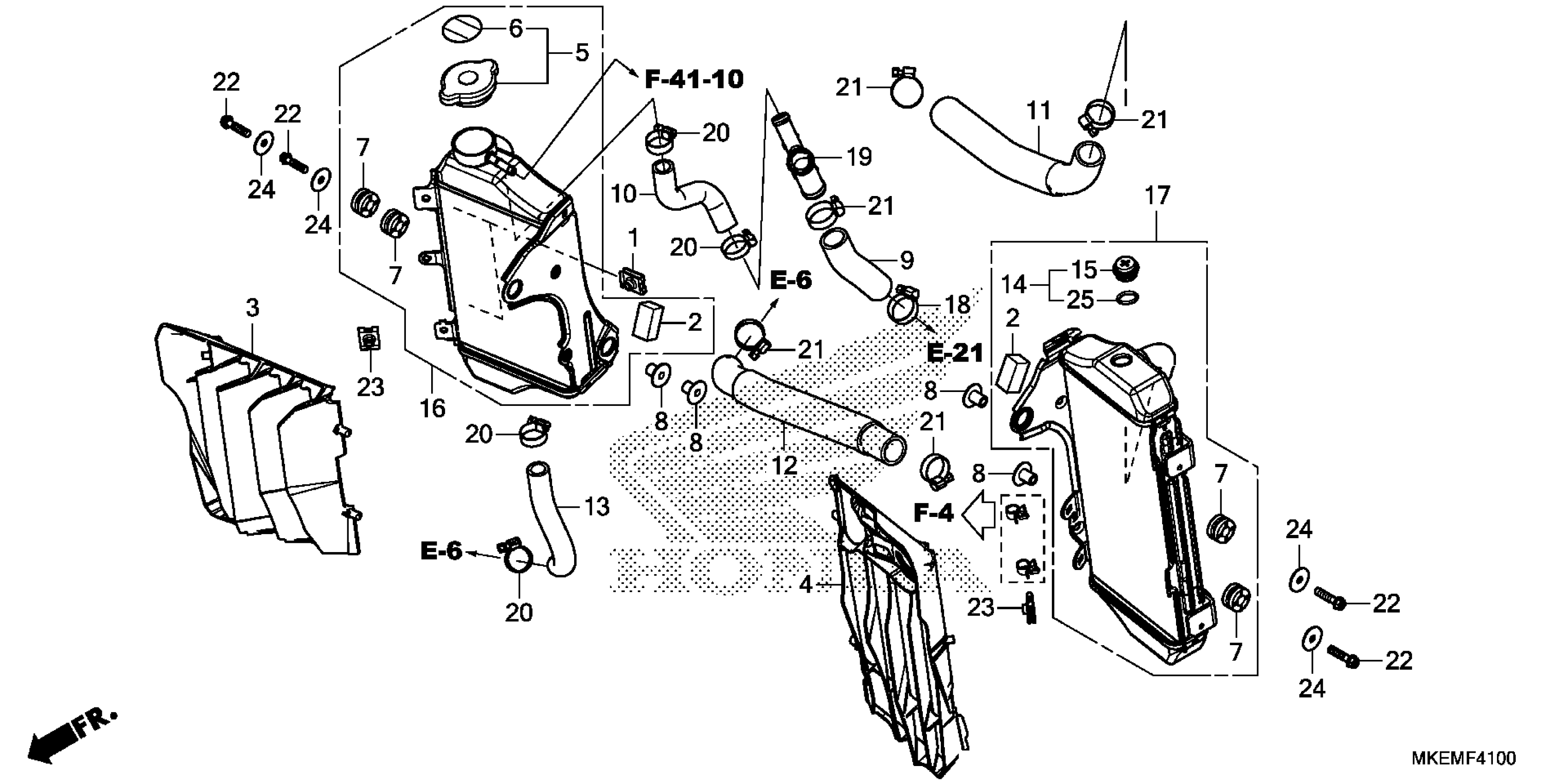

Honda CRF450XAC (21) MOTORCYCLE, JPN, VIN# JH2PE091-MK200001 TO JH2PE091-MK299999 RADIATOR Diagram

NUT, SETTING (6MM)

19014-KEA-003

$3.10

RUBBER, RADIATOR (UPPER)

19021-MEN-A30

$2.31

GRILLE, R. RADIATOR

19033-MKE-A50

$40.00

GRILLE, L. RADIATOR

19034-MKE-A50

$40.00

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

HOSE A, WATER

19061-MKE-A50

$4.72

HOSE B, WATER

19062-MKE-A50

$6.02

HOSE C, WATER

19063-MKE-A50

$29.25

HOSE D, WATER

19064-MKE-A50

$28.77

HOSE E, WATER

19065-MKE-A50

$6.02

PETCOCK ASSY., DRAIN

19070-MEC-003

$10.07

PETCOCK, DRAIN

19071-MEC-003

$3.58

RADIATOR ASSY., R.

19100-MKE-A50

$311.62

RADIATOR ASSY., L.

19160-MKE-A50

$293.78

CLAMP, WATER HOSE (D27)

19502-MKE-A00

$9.11

JOINT, HOSE THREE WAY

19503-MKE-A50

$35.41

CLAMP, WATER HOSE (D21)

19505-MKE-A50

$7.90

CLAMP B, WATER HOSE

19506-KS6-700

$7.50

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

NUT, CLIP (6MM)

90201-KPR-901

$1.87

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.36

O-RING (9.8X1.9)

91353-MEC-003

$3.42
