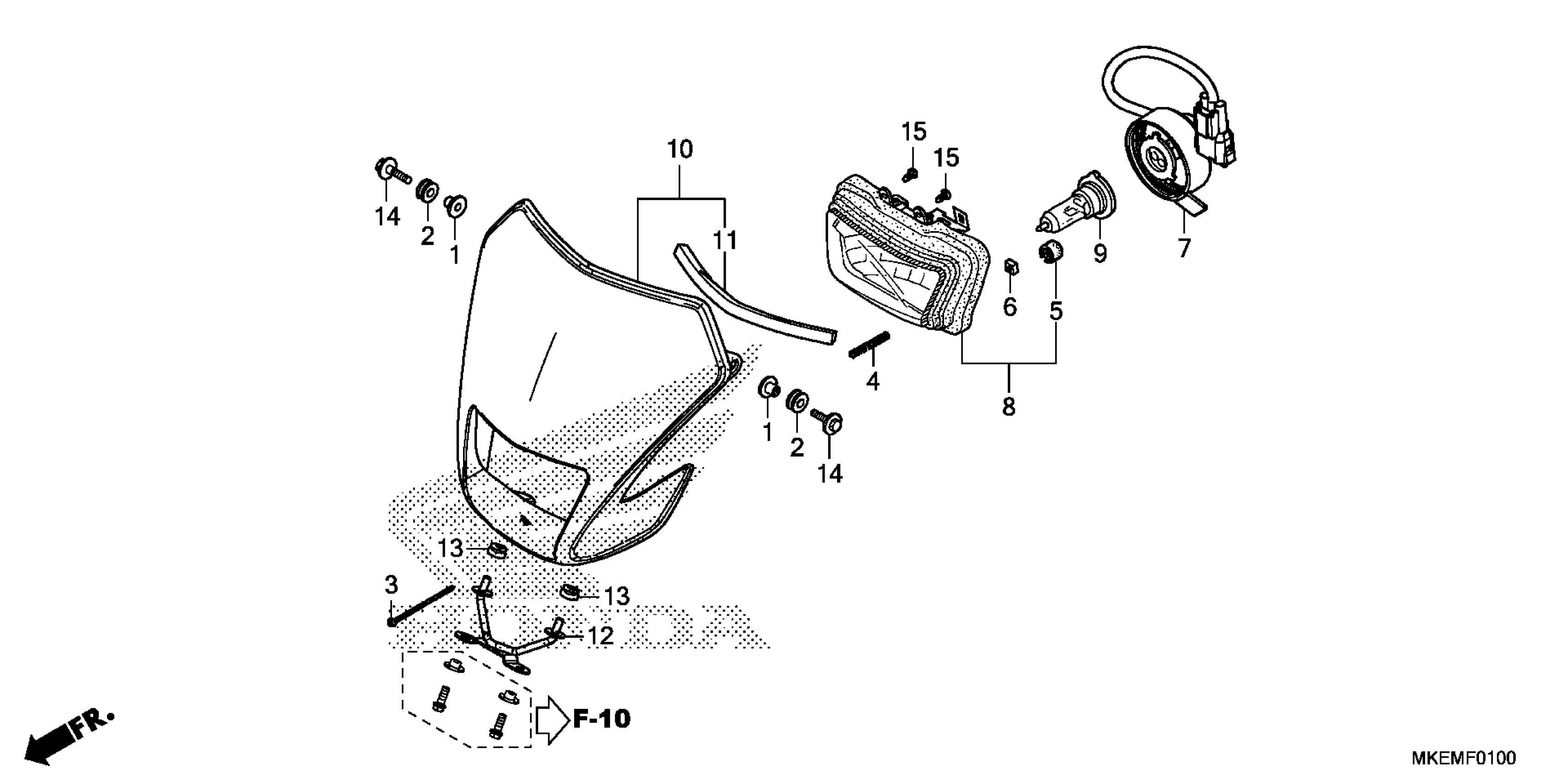

Honda CRF450XAC (21) MOTORCYCLE, JPN, VIN# JH2PE091-MK200001 TO JH2PE091-MK299999 HEADLIGHT Diagram

COLLAR, AIR CLEANER MOUNTING

17239-MGS-D30

$3.92

RUBBER, PROTECTOR GASKET

18294-KSV-J00

$1.95

SCREW, PAN (4X55)

33103-KSC-670

$1.49

SPRING, BEAM ADJUSTING

33107-KAE-771

$2.64

PIPE, CP

33113-MBW-D21

$2.64

NUT, BEAM ADJUSTING

33117-KBR-730

$2.92

SOCKET, HEADLIGHT

33130-MKE-A41

$28.97

HEADLIGHT UNIT (COO) This part replaces 33150-KSC-A21.

33150-KSC-305

$150.49

HEADLIGHT UNIT (COO)

33150-KSC-305

$150.49

BULB, HEADLIGHT (12V35/36.5W) (STANLEY)

34901-GJ1-003

$33.97

VISOR SET, FR. (TYPE1) (WL)

61300-MKE-AJ0ZA

$152.18

RUBBER, LIGHT FOAM

61302-KSC-A20

$3.28

STAY, VISOR (LOWER)

61320-MKE-A40

$57.08

GROMMET, SIDE COVER (16MM ATTACHES PROTECTOR SET, SIDE TO COVER, PILLION STEP)

83501-MG7-000

$2.61

BOLT-WASHER (6X20)

93404-06020-07

$1.55

SCREW, TAPPING (5X10) (PO)

93913-25120

$1.49
