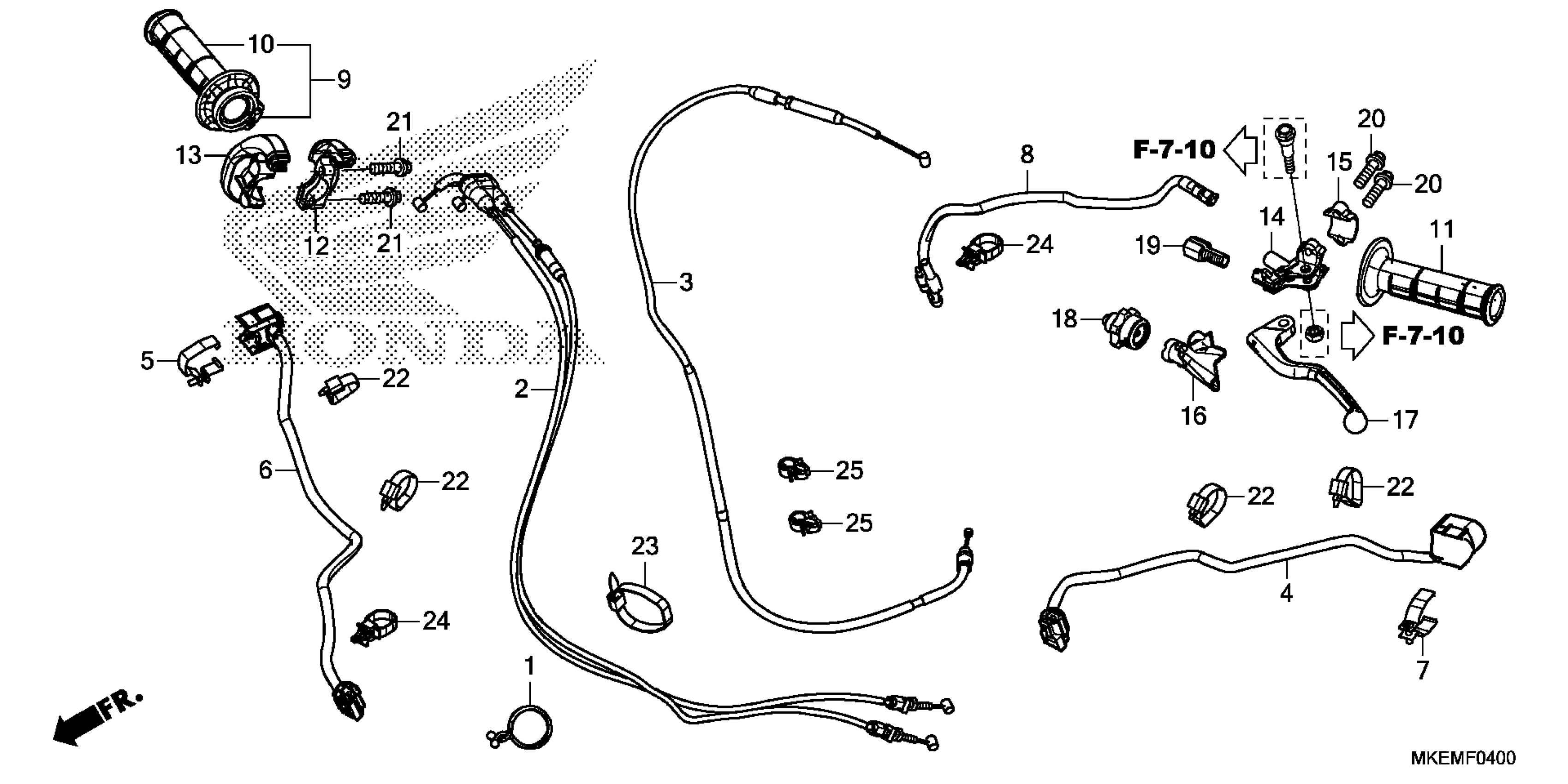

Honda CRF450XAC (21) MOTORCYCLE, JPN, VIN# JH2PE091-MK200001 TO JH2PE091-MK299999 HANDLE LEVER@SWITCH@CABLE Diagram

CLIP, BREATHER TUBE PROTECTOR

15712-PD1-811

$9.39

CABLE, THROTTLE

17910-MKE-A51

$63.43

CABLE, CLUTCH

22870-MKE-A51

$30.62

SWITCH SET, ENGINE STOP

35135-MKE-A41

$95.90

BAND SET

35151-MKE-A11

$11.10

SWITCH SET, STARTER

35155-MKE-A41

$31.43

BAND SET

35181-HM8-V81

$9.44

SWITCH ASSY., CLUTCH

35330-MKE-A41

$18.90

GRIP, THROTTLE

53140-KRN-A30

$22.52

GRIP, R. HANDLE (COO) This part replaces 53165-KRN-A30.

53165-MEN-305

$10.13

GRIP, L. HANDLE

53166-KRN-A30

$10.34

HOUSING, THROTTLE (UPPER)

53167-MKE-A00

$28.20

HOUSING, THROTTLE (LOWER)

53168-MKE-A00

$28.20

BRACKET, L. HANDLE LEVER

53172-MKE-A60

$37.76

HOLDER, L. LEVER BRACKET

53174-KCE-670

$13.46

COVER, L. HANDLE LEVER

53177-MKE-A60

$10.12

LEVER, L. HANDLEBAR

53178-MEN-A01

$24.79

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$11.26

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.91

BOLT, FLANGE (6X22)

90020-GHB-670

$2.33

BOLT, FLANGE (6X20)

90021-GHB-660

$2.26

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$3.12

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.47

CLIP, CABLE

90682-MKE-A01

$3.05
