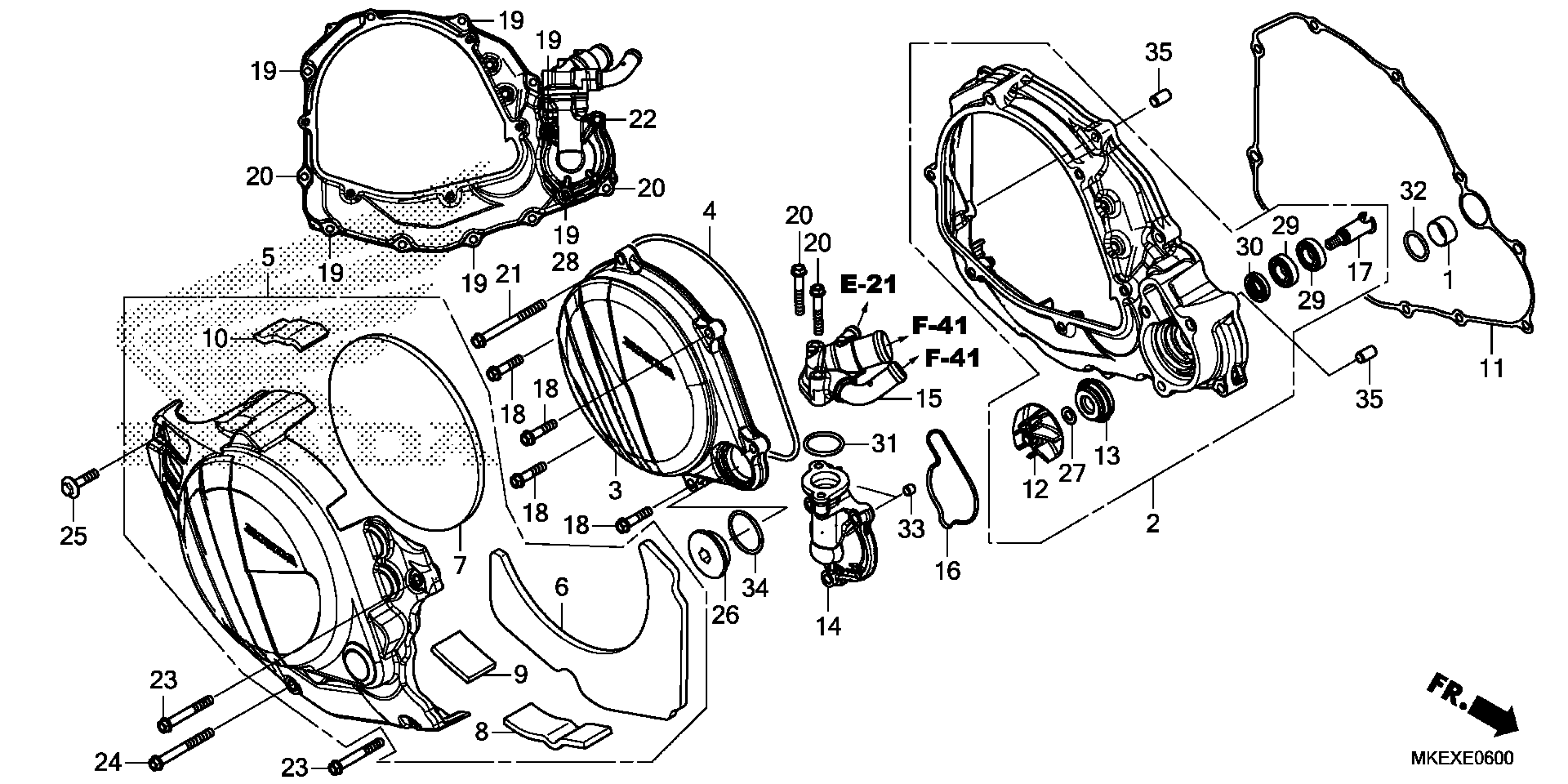

Honda CRF450XAC (20) MOTORCYCLE, JPN, VIN# JH2PE091-LK100001 RIGHT CRANKCASE COVER @WATER PUMP Diagram

#

Description
Price

1

COLLAR, WATER PASS

11102-MKE-A00

$4.46

2

COVER ASSY., R. CRANKCASE

11330-MKE-A50

$312.20

3

COVER, CLUTCH

11351-MKE-A50

$142.98

4

GASKET, CLUTCH COVER

11352-MKE-A70

$12.33

5

OVER COVER, R. CRANKCASE

11360-MKE-A50

$98.30

6

MAT A, R. COVER

11365-MKE-A50

$6.07

7

MAT B, R. COVER

11366-MKE-A50

$7.36

8

MAT C, R. COVER

11367-MKE-A50

$1.70

9

MAT D, R. COVER

11368-MKE-A50

$1.49

10

MAT E, R. COVER

11369-MKE-A50

$1.61

11

GASKET, R. COVER

11394-MKE-A71

$31.58

12

IMPELLER, WATER PUMP

19215-MEN-850

$42.58

13

SEAL, MECHANICAL

19217-KRN-A61

$46.40

14

COVER, WATER PUMP

19221-MKE-A50

$89.49

15

JOINT, FOUR-WAY WATER

19225-MKE-A50

$74.39

16

GASKET, WATER PUMP

19226-MKE-A00

$5.12

17

SHAFT, WATER PUMP

19241-MKE-A50

$69.72

18

BOLT, FLANGE (6X25)

90020-GHB-680

$2.26

19

BOLT, FLANGE (6X28)

90020-GHB-690

$2.33

20

BOLT, FLANGE (6X35)

90020-GHB-720

$2.48

21

BOLT, FLANGE (6X65)

90020-GHB-790

$3.05

22

BOLT, FLANGE (6X75)

90020-GHB-810

$3.21

23

BOLT, FLANGE (6X45)

90025-GHB-750

$2.92

24

BOLT, FLANGE (6X55)

90025-GHB-770

$3.28

25

BOLT, FLANGE (6X25)

90041-MKE-A50

$3.02

26

CAP (30MM)

90087-MKE-A50

$13.59

27

WASHER, SEALING (7MM)

90447-KE1-000

$2.66

28

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

29

BEARING, BALL (12X24X6)

91002-MEN-A31

$8.83

30

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$4.06

30

OIL SEAL (12X22X5)

91201-965-000

$4.06

31

O-RING (2.4X24.5)

91301-MKE-A50

$2.41

32

O-RING (2.4X19)

91302-MKE-A70

$1.92

33

PIN, DOWEL (8X7)

91320-KE1-000

$2.23

34

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

35

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25
