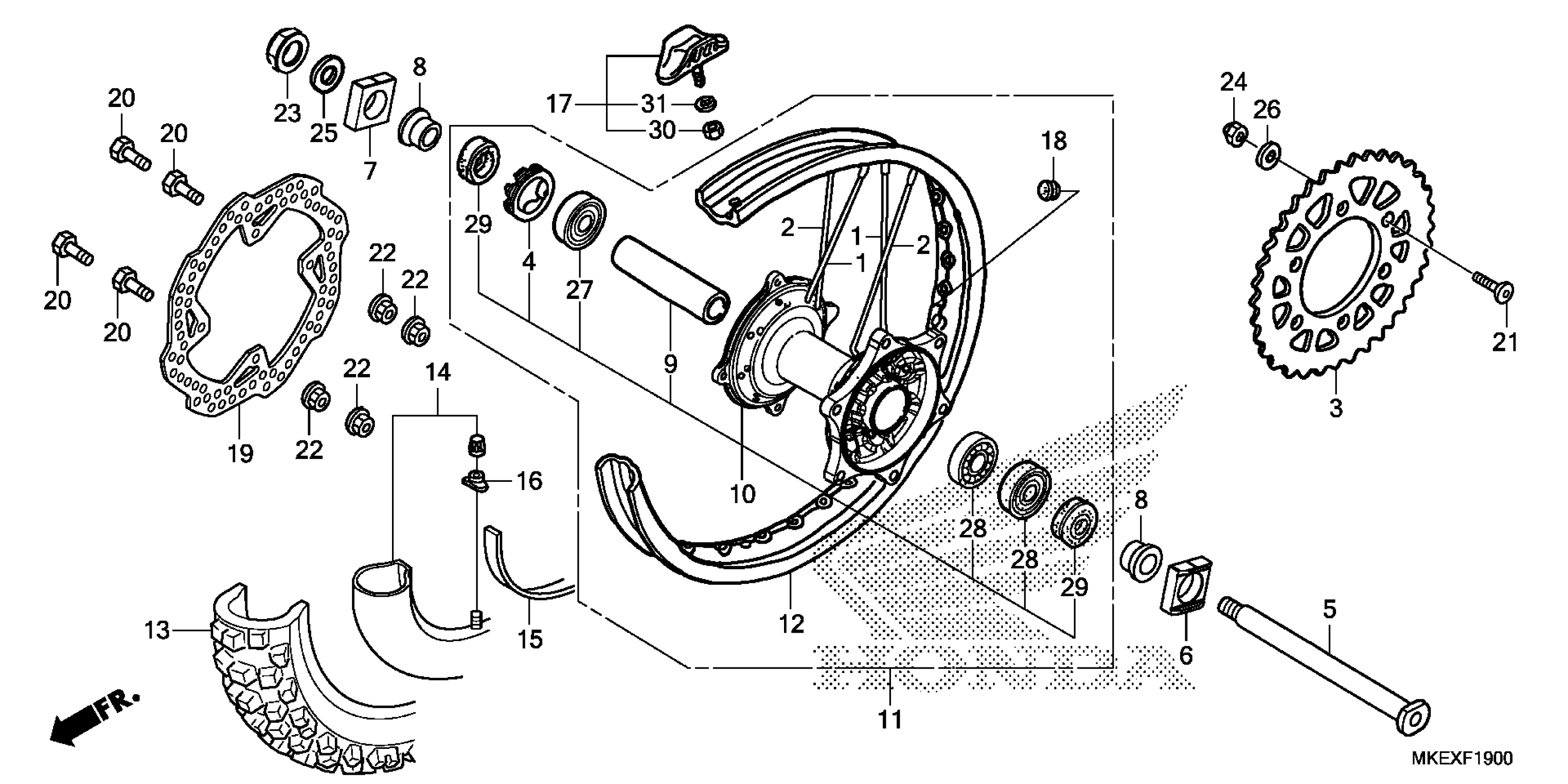

Honda CRF450XAC (19) MOTORCYCLE, JPN, VIN# JH2PE091-KK000001 TO JH2PE091-KK099999 REAR WHEEL Diagram

SPOKE SET, RR. (INSIDE)

06420-MEY-000

$4.85

SPOKE SET, RR. (OUTSIDE)

06421-MEY-000

$4.85

SPROCKET, FINAL DRIVEN (51T)

41201-MEY-000

$115.77

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

AXLE, RR. WHEEL

42301-KRN-A30

$47.01

COLLAR, L. RR. AXLE

42305-MKE-A50

$21.38

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

COLLAR, RR. WHEEL SIDE

42311-MKE-A60

$27.12

COLLAR, RR. WHEEL DISTANCE

42620-MKE-A60

$27.07

HUB SUB-ASSY., RR.

42635-MKE-A60

$456.34

WHEEL SUB-ASSY., RR.

42650-MKE-A40

$854.97

RIM, RR. WHEEL (18X2.15)

42701-MKE-A81

$284.21

TIRE (110/100-18 64M This part replaces 42711-MKE-A41.

42711-MKE-A42

$142.15

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KT1-672.

42712-KT1-673

$37.60

TUBE, TIRE

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

FLAP, TIRE (1.85/2.15-18) (DUNLOP)

42713-300-004

$6.14

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

CAP, RIM HOLE

42717-329-000

$4.21

DISK, RR. BRAKE

43351-KRN-A90

$225.78

BOLT, DISK (6X19)

90105-MAC-680

$4.99

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

NUT, U (22MM)

90305-KZ4-J20

$8.96

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

WASHER (22X35X2)

90401-KZ4-J20

$2.89

WASHER (8MM)

90465-MC4-000

$2.51

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
