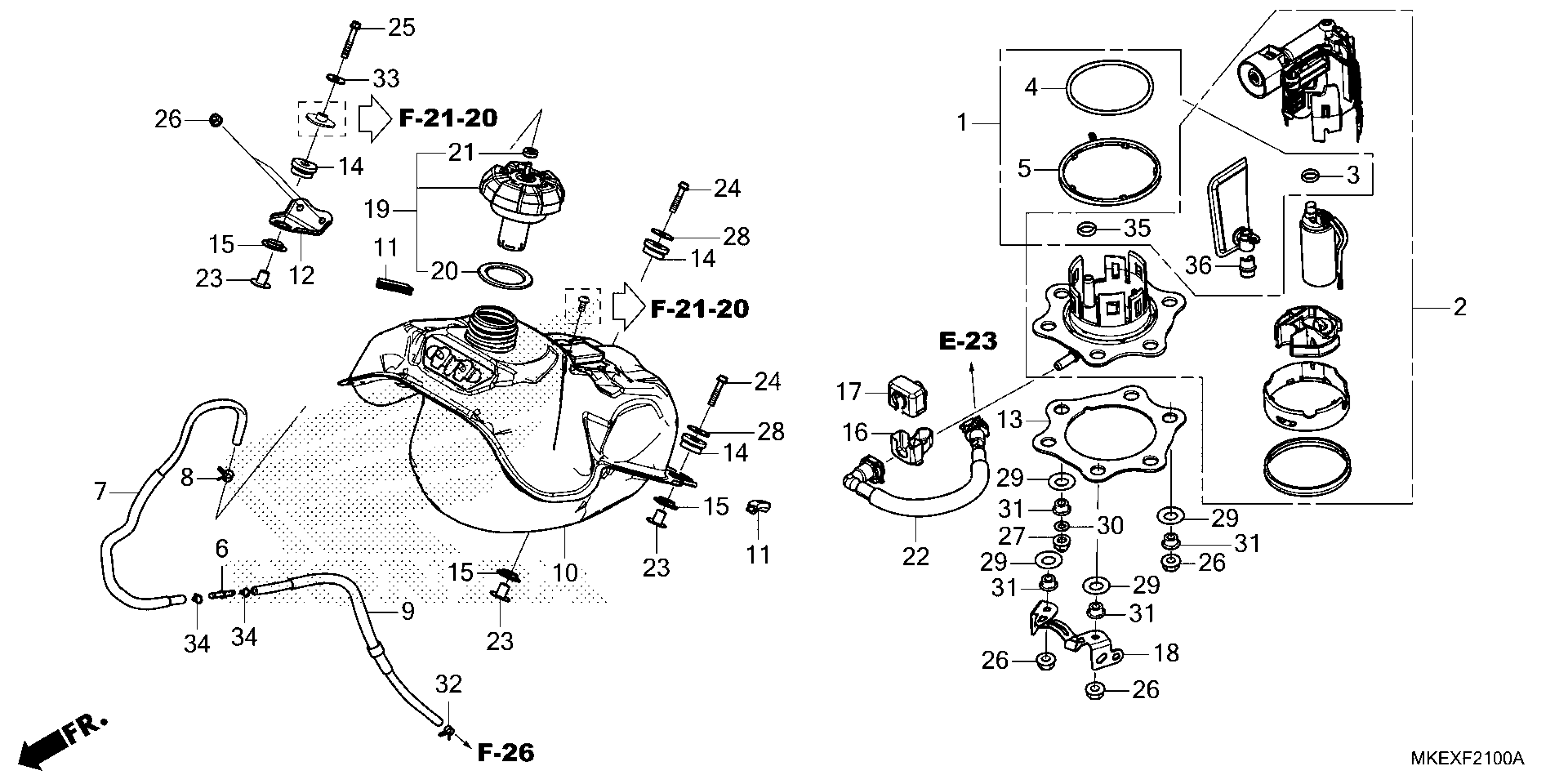

Honda CRF450XAC (19) MOTORCYCLE, JPN, VIN# JH2PE091-KK000001 TO JH2PE091-KK099999 FUEL TANK Diagram

#

Description
Price

1

FILTER KIT, FUEL

06160-MKE-A00

$74.81

2

PUMP ASSY., FUEL (MSDS)

16700-MKE-A51

$454.24

3

O-RING (8.6X1.9)

16702-KPC-D50

$0.51

4

O-RING (3.7X73.9)

16711-MEN-A30

$10.86

5

DUST SEAL

16712-MKE-A00

$12.74

6

JOINT, FUEL TUBE

16958-GJ6-000

$4.40

7

TUBE, CHARGE

17311-MKE-A50

$28.74

8

CLAMP, HOSE (9.5)

17323-MKE-A51

$3.82

9

TUBE B, CHARGE

17324-MKE-A50

$35.37

10

TANK, FUEL

17510-MKE-A50

$961.44

11

TRIM, FUEL TANK

17518-MFN-D00

$2.59

12

STAY, FR. FUEL TANK

17518-MKE-A50

$15.35

13

PLATE, FUEL PUMP

17519-MKE-A00

$19.22

14

RUBBER, TANK MOUNTING

17523-MKE-A50

$5.50

15

COLLAR, TANK MOUNTING

17524-MKE-A50

$11.10

16

COVER, FUEL CONNECTOR

17575-KRN-A90

$6.60

17

RUBBER, FUEL CONNECTOR

17576-KRN-A90

$5.62

18

GUIDE, STOPPER CABLE

17578-K95-A20

$23.69

19

CAP ASSY., FUEL TANK | Use up to Frame SN KK000516.

17620-MKE-A51

$84.21

19

CAP ASSY., FUEL TANK | Use from Frame SN KK000517.

17620-MKE-A52

$84.21

20

GASKET, FUEL CAP

17622-MKE-A00

$5.85

21

CAP, TUBE JOINT

17628-MKE-A50

$2.09

22

HOSE, FUEL FEED

17630-MKE-A01

$72.07

23

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

24

BOLT, FLANGE (6X28)

90020-GHB-690

$2.15

25

BOLT, FLANGE (6X35)

90021-GHB-720

$2.25

26

NUT, FLANGE (6MM) (Honda Code 7039662)

90217-HW1-670

$1.65

27

NUT, FLANGE CAP (6MM)

90301-MKE-A00

$3.50

28

WASHER, PLAIN (6MM)

90404-GE2-760

$2.06

29

WASHER, CONICAL SPRING FUEL PUMP

90502-MEN-A30

$2.46

30

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.72

31

COLLAR, FUEL PUMP

90504-MKE-A00

$6.19

32

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.34

33

WASHER, PLAIN (6MM)

94103-06700

$0.66

34

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.62

35

O-RING (10X2.4)

16702-KTR-940

$5.04

36

RUBBER, STOPPER

16735-MEN-A51

$7.31
