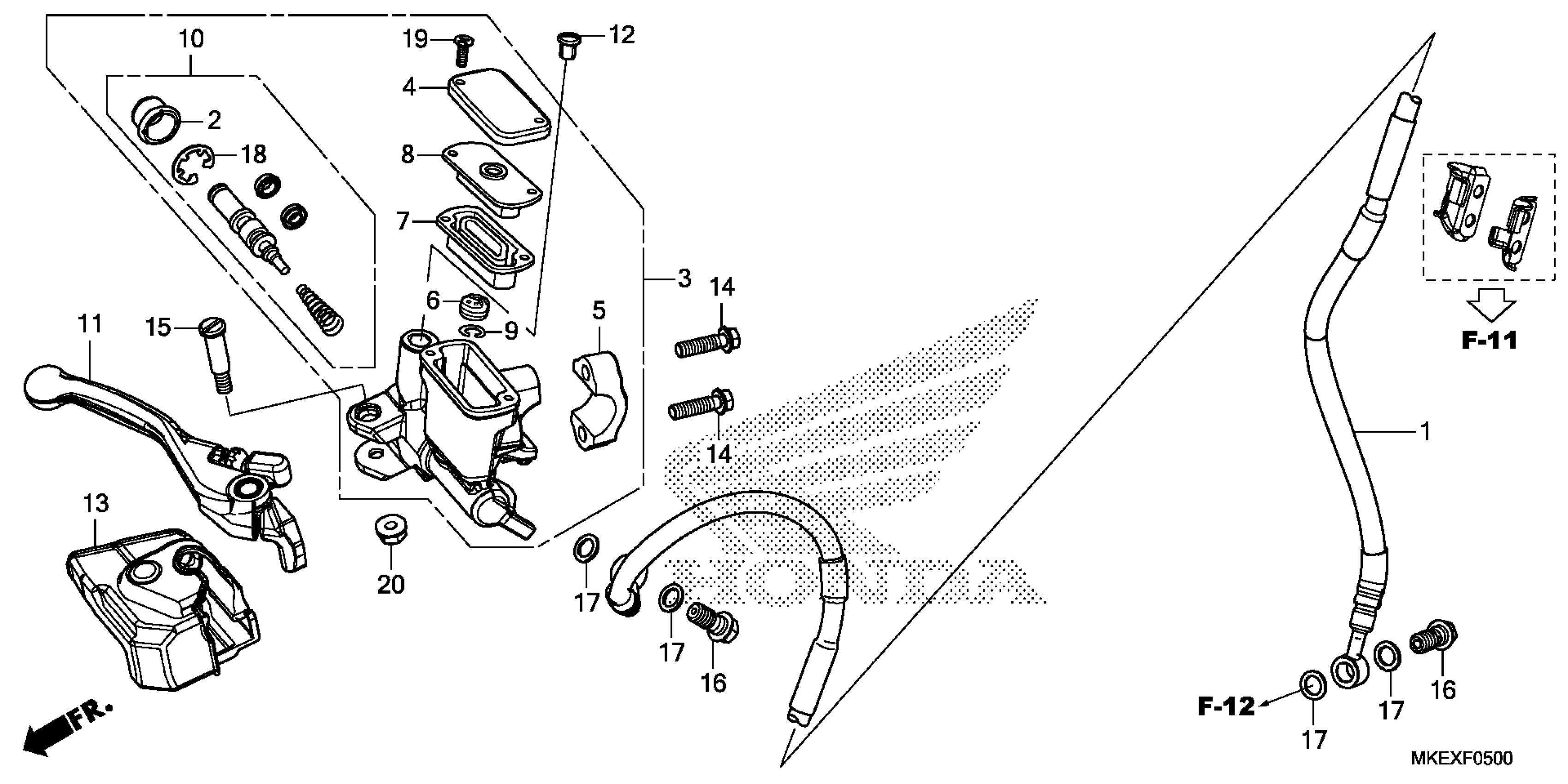

Honda CRF450XAC (19) MOTORCYCLE, JPN, VIN# JH2PE091-KK000001 TO JH2PE091-KK099999 FRONT BRAKE MASTER CYLINDER Diagram

HOSE, FR. BRAKE

45125-MKE-A51

$140.74

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR.

45510-MKE-A41

$228.31

CAP, MASTER CYLINDER

45513-MKE-A51

$25.84

HOLDER, MASTER CYLINDER

45517-GW0-751

$12.41

SEPARATOR

45518-KA3-731

$12.17

DIAPHRAGM

45520-GW0-911

$7.28

PLATE, DIAPHRAGM

45521-GW0-911

$5.72

RING

45523-KA3-731

$2.92

MASTER CYLINDER SET

45530-MKE-A51

$45.49

LEVER ASSY., R. HANDLE

53170-MKE-A51

$44.51

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

COVER, R. HANDLE LEVER

53176-MKE-A51

$14.77

BOLT, FLANGE (6X22)

90020-GHB-670

$2.33

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP (INNER) (18.8)

90651-K03-M61

$1.49

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
