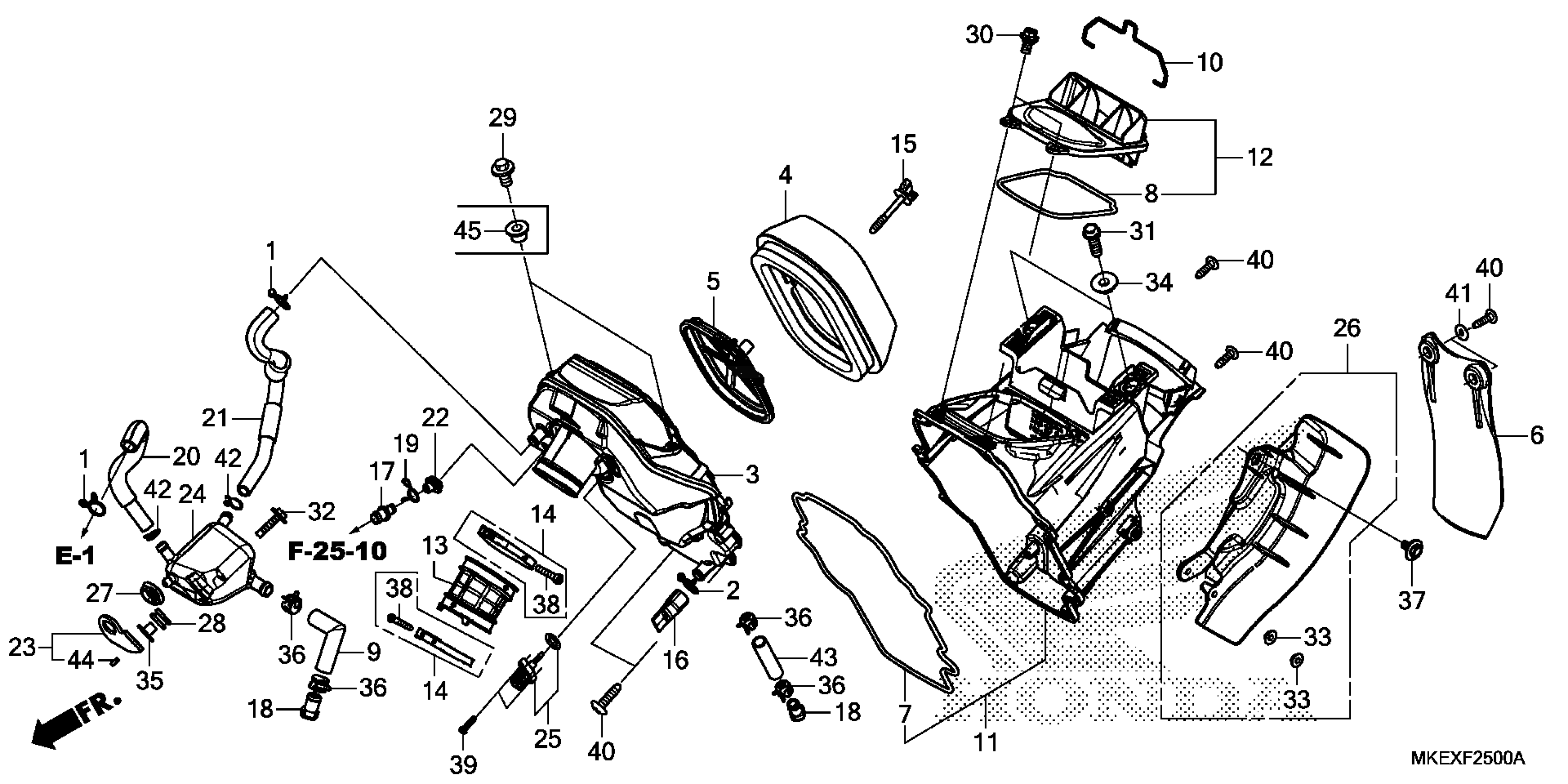

Honda CRF450XAC (19) MOTORCYCLE, JPN, VIN# JH2PE091-KK000001 TO JH2PE091-KK099999 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

CLIP, BREATHER TUBE

15772-551-000

$2.05

3

HOUSING, AIR CLEANER | Use up to Frame SN KK000517. This part replaces 17210-MKE-A50.

17210-MKE-A51

$118.75

3

HOUSING, AIR CLEANER

17210-MKE-A51

$118.75

4

ELEMENT, AIR CLEANER

17213-MKE-A50

$53.92

5

BASE ASSY., ELEMENT

17214-MKE-A51

$30.30

6

SPLASH GUARD

17218-MKE-A00

$38.05

7

SEAL, AIR CLEANER HOUSING

17226-MKE-A50

$7.80

8

SEAL, AIR CLEANER LID

17227-MKE-A50

$3.70

9

TUBE, DRAIN

17227-MKJ-D00

$8.20

10

SPRING, AIR CLEANER LID

17229-MKE-A50

$8.25

11

CASE SUB-ASSY., AIR CLEANER (RR)

17233-MKE-A50

$95.48

12

LID SUB-ASSY., AIR CLEANER

17234-MKE-A50

$33.20

13

TUBE, AIR CLEANER CONNECTING

17253-MKE-A50

$26.18

14

BAND, AIR CLEANER CONNECTING TUBE (60MM)

17255-MEN-A70

$15.89

15

BOLT, ELEMENT SETTING

17291-KSC-000

$6.96

16

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.94

16

TUBE, DRAIN

17358-HM8-000

$4.94

17

JOINT, BREATHER TUBE

17359-MAG-L00

$5.26

18

PLUG, BREATHER TUBE

17370-382-870

$3.74

19

CLIP, BREATHER TUBE

17371-174-670

$2.20

20

TUBE A, BREATHER

17372-MKE-A50

$13.80

21

TUBE B, BREATHER

17373-MKE-A50

$24.16

22

JOINT, TUBE

17375-MKE-A50

$7.49

23

STAY, BREATHER TANK

17521-MKE-A50

$7.20

24

TANK, BREATHER

17551-MKE-A50

$39.02

25

SENSOR ASSY., AIR TEMPERATURE

37880-KWW-C01

$44.57

26

BOX ASSY., FUSE

50335-MKE-A50

$32.87

27

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

28

RUBBER, RR. FENDER CUSHION (FR.)

80101-165-000

$3.74

29

BOLT, FLANGE (6X16)

90020-GHB-640

$2.26

30

BOLT, SHROUD SETTING

90101-ML3-840

$4.24

31

BOLT (6X18)

90105-MEN-A60

$2.20

32

BOLT-WASHER (6X28)

90116-MKE-A50

$2.57

33

COLLAR (6X4)

90127-KF0-770

$3.42

34

COLLAR A

90501-KZ4-J20

$3.67

35

COLLAR, RR. FENDER

90502-GG2-000

$5.75

36

CLAMP, TUBE (D14.5)

91406-MS8-000

$3.89

37

BOLT-WASHER (6X12)

93404-06012-07

$1.55

37

BOLT-WASHER (6X12) This part replaces 93404-06012-08.

93404-06012-07

$1.55

38

SCREW, PAN (4X30)

93500-04030-0G

$3.69

39

SCREW, TAPPING (5X20)

93911-25520

$1.49

40

SCREW, TAPPING (5X20)

93913-25580

$1.49

41

WASHER, PLAIN (5MM)

94103-05700

$1.49

42

CLIP, TUBE (B12.5)

95002-02130

$1.49

43

TUBE, VINYL (11X15X60) (95003-37001-60M) (NA USE ALT:95003-37001-60M)

95003-37006-31

Unavailable

44

ROLLER (3X8)

96220-30080

$1.49

45

COLLAR, FR. ENGINE GUARD | Use from Frame SN KK000518.

90503-MEY-670

$3.46
