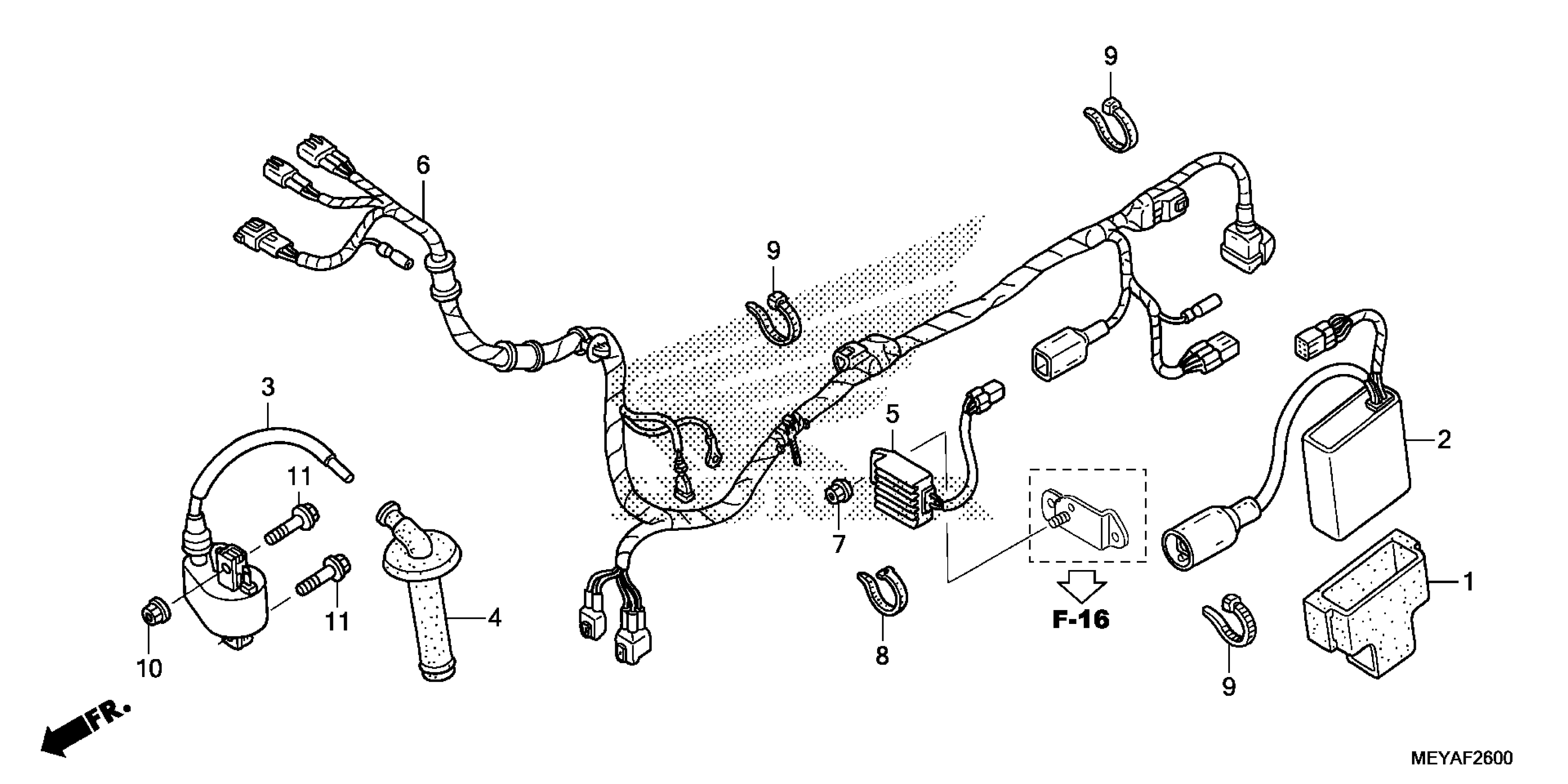

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 WIRE HARNESS Diagram

#

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI)

30401-KRN-000

$10.10

2

MODULE, IGNITION CONTROL (CDI)

30410-MEY-671

$266.79

3

COIL ASSY., IGNITION

30500-MEB-671

$63.04

4

CAP ASSY., NOISE SUPPRESSOR

30700-MEB-671

$50.87

5

RECTIFIER, REGULATOR

31600-MEY-671

$77.66

6

WIRE HARNESS

32100-MEY-A20

$126.77

7

NUT, SPECIAL (6MM)

90301-088-660

$2.92

8

BAND, WIRE (95MM)

90650-KV6-003

$3.12

9

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

10

NUT, FLANGE (6MM)

94050-06000

$1.49

11

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
