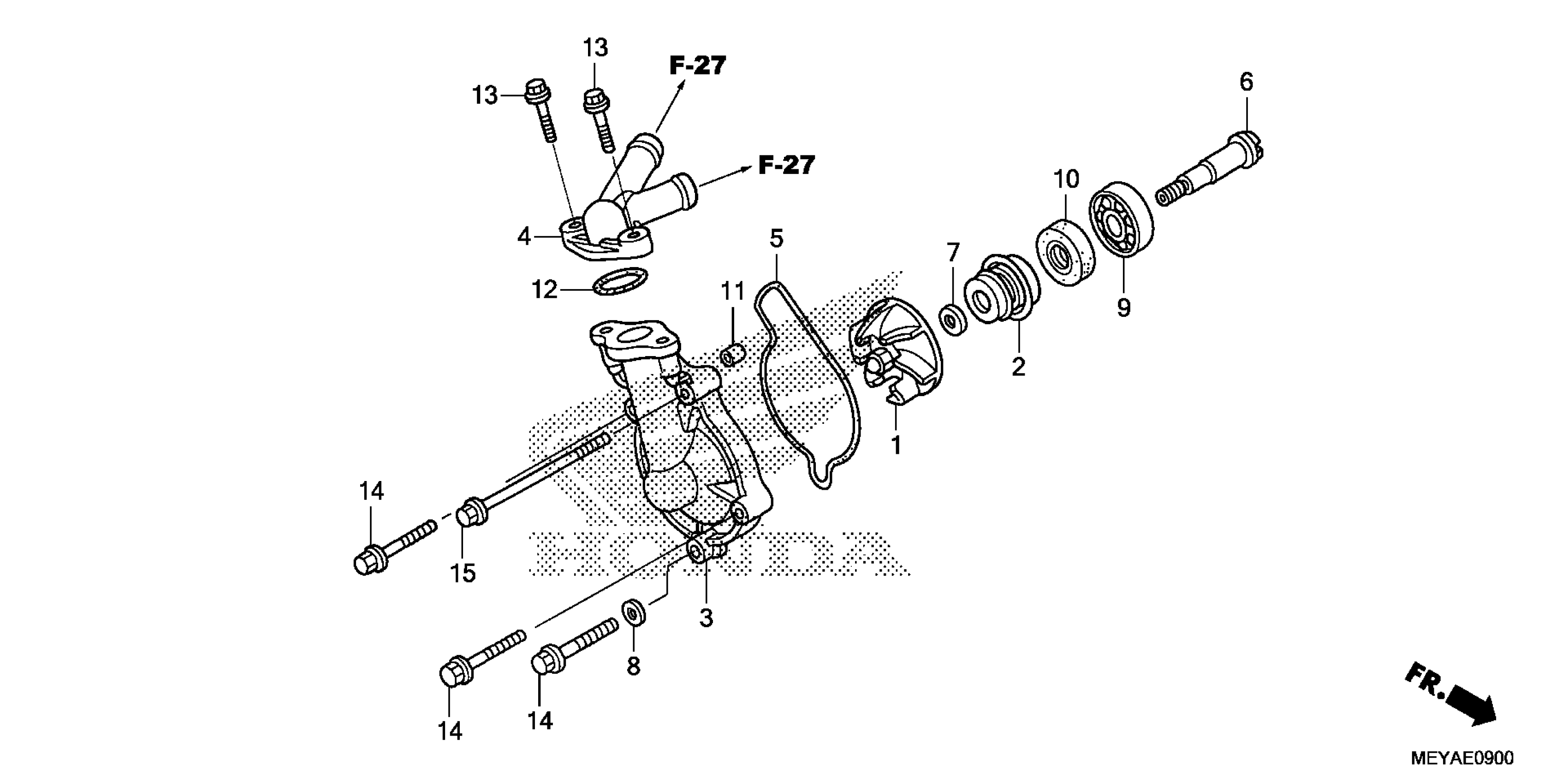

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 WATER PUMP Diagram

IMPELLER, WATER PUMP

19215-MEY-670

$43.81

SEAL, MECHANICAL

19217-MAL-300

$47.62

COVER, WATER PUMP

19221-MEY-670

$84.43

JOINT, WATER (THREE-WAY)

19225-MEY-670

$18.84

GASKET, WATER PUMP COVER

19226-MEB-670

$4.71

SHAFT, WATER PUMP

19241-MEY-670

$54.25

WASHER, SEALING (7MM)

90447-KE1-000

$2.42

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$15.33

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.77

OIL SEAL (12X22X5)

91201-965-000

$3.77

PIN, DOWEL (8X7)

91320-KE1-000

$2.03

O-RING (21.8X2.4)

91355-759-003

$1.58

BOLT, FLANGE (6X20)

96001-06020-00

$1.13

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

BOLT, FLANGE (6X85)

96001-06085-00

$2.64
