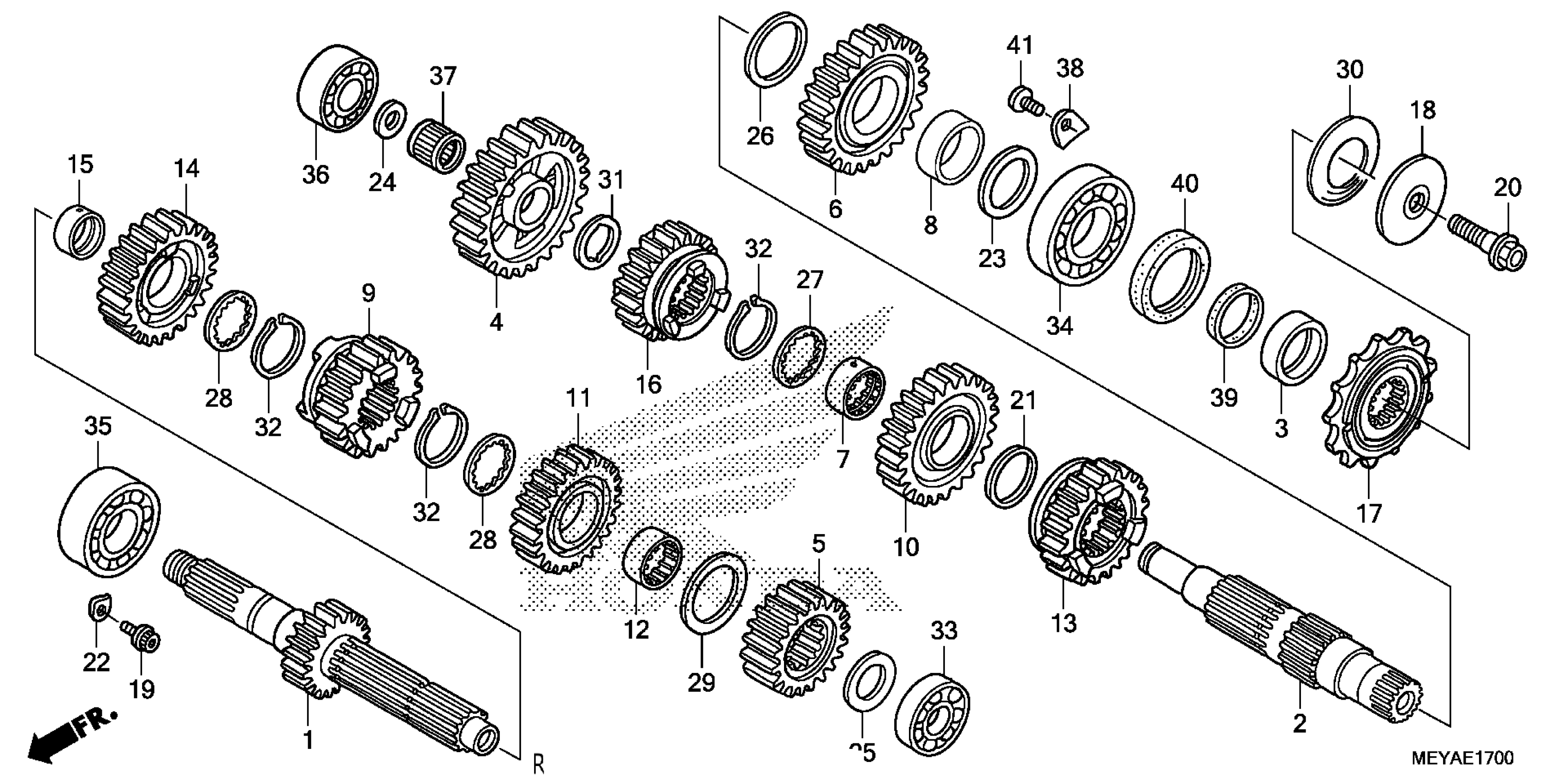

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23210-MEY-A20

$160.04

2

COUNTERSHAFT

23221-MEY-A20

$153.07

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$12.86

4

GEAR, COUNTERSHAFT LOW (29T)

23411-MEY-670

$136.25

5

GEAR, MAINSHAFT SECOND (16T)

23421-MEY-670

$54.24

6

GEAR, COUNTERSHAFT SECOND (26T)

23431-MEY-670

$95.13

7

COLLAR (28X25X10.5)

23432-HN1-A40

$9.81

8

COLLAR, COUNTERSHAFT SECOND GEAR

23432-MEY-670

$8.82

9

GEAR, MAINSHAFT THIRD (17T)

23441-MEY-A20

$109.46

10

GEAR, COUNTERSHAFT THIRD (21T)

23451-MEY-A20

$94.06

11

GEAR, MAINSHAFT FOURTH (19T)

23461-MEY-670

$98.63

12

COLLAR, MAINSHAFT FOURTH GEAR

23462-MEY-670

$12.13

13

GEAR, COUNTERSHAFT FOURTH (19T)

23471-MEY-670

$105.04

14

GEAR, MAINSHAFT FIFTH (23T)

23481-MEY-A20

$100.41

15

COLLAR (25X28X10)

23482-MEN-A00

$11.76

16

GEAR, COUNTERSHAFT FIFTH (19T)

23491-MEY-A20

$109.46

17

SPROCKET, DRIVE (13T)

23801-MEY-670

$41.09

18

COLLAR, DRIVE SPROCKET

23802-KSC-670

$13.49

19

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.19

20

BOLT, UBS (8X33)

90112-413-000

$3.68

21

WASHER (25X32X1.0)

90401-HP1-670

$2.65

22

PLATE, BEARING HOLDER

90441-KRM-840

$0.56

23

WASHER, THRUST (24.1X36X1.5)

90445-ML3-871

$4.88

24

WASHER, THRUST (17.2MM)

90446-357-000

$3.44

25

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.68

26

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.65

27

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.65

28

WASHER, THRUST INVOLUTE (25X31X1.5)

90451-MEY-670

$2.32

29

WASHER C, THRUST (25MM)

90459-357-000

$3.44

30

WASHER, SPRING (24MM)

90501-KSC-670

$4.07

31

WASHER, THRUST (19MM)

90554-KA5-680

$4.17

32

CIRCLIP (OUTER) (25MM)

90602-259-010

$5.87

33

BEARING, RADIAL BALL (6203U)

91001-KSK-671

$10.32

34

BEARING, RADIAL BALL (24X56X14) (NTN)

91001-ML3-873

$17.37

35

BEARING, BALL (5205A)

91003-MBN-671

$32.90

36

BEARING, BALL (5203U)

91006-MEY-671

$45.12

37

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$8.63

38

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.66

39

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.50

40

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$9.17

41

SCREW, FLAT (6X12)

93600-06012-0A

$0.91
