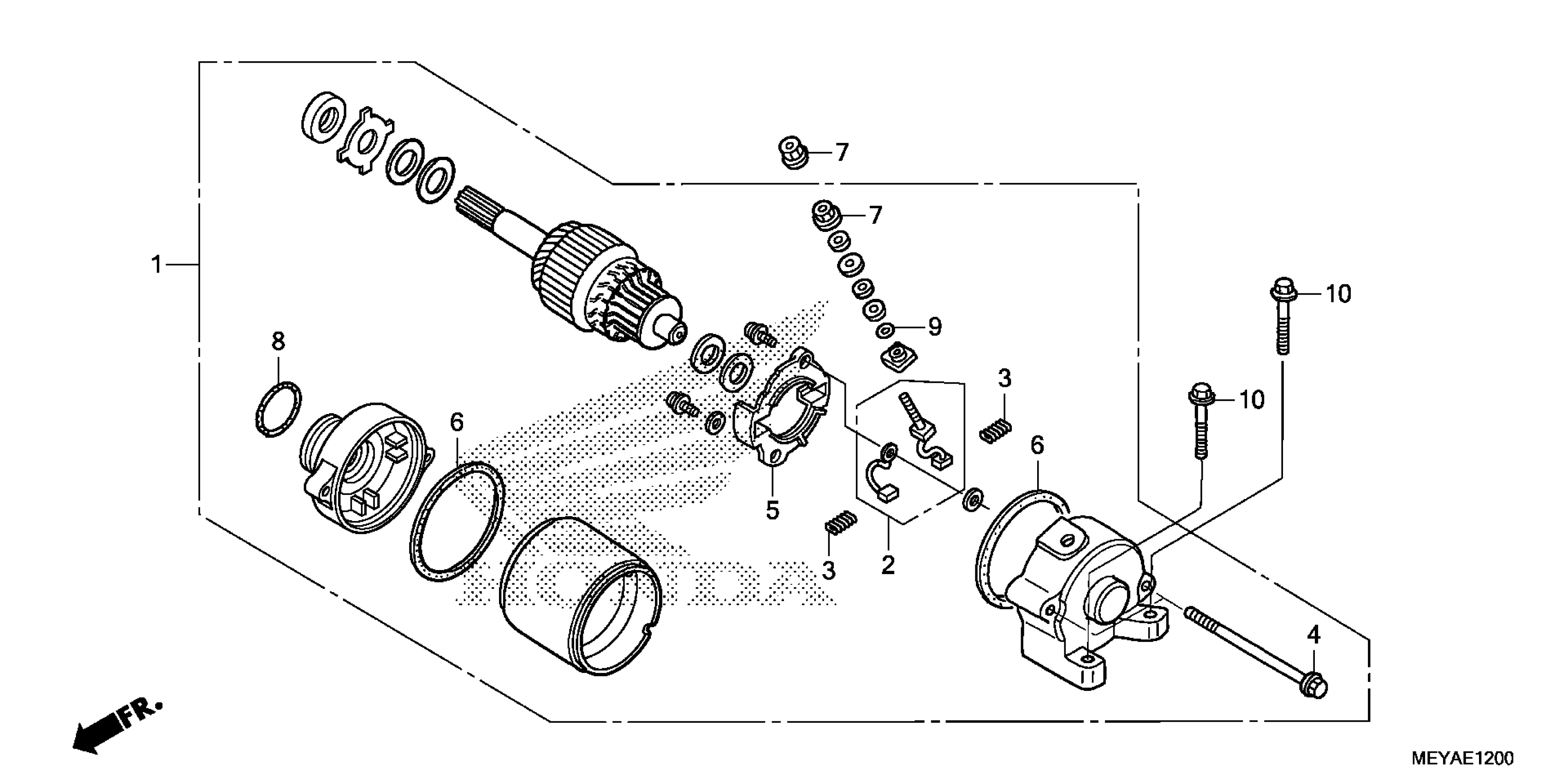

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 STARTING MOTOR Diagram

STARTER MOTOR ASSY.

31200-MEY-671

$374.53

TERMINAL SET, BRUSH

31201-MEY-671

$17.54

SPRING, CARBON BRUSH

31204-KG8-004

$3.36

BOLT, SETTING

31205-MEY-671

$2.99

HOLDER, BRUSH

31206-MEY-671

$7.16

RING

31207-MEY-671

$2.25

NUT-WASHER (6MM)

90071-MB0-000

$1.91

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING (4X2)

91320-MB0-000

$2.24

BOLT, FLANGE (6X25)

96001-06025-00

$2.49
