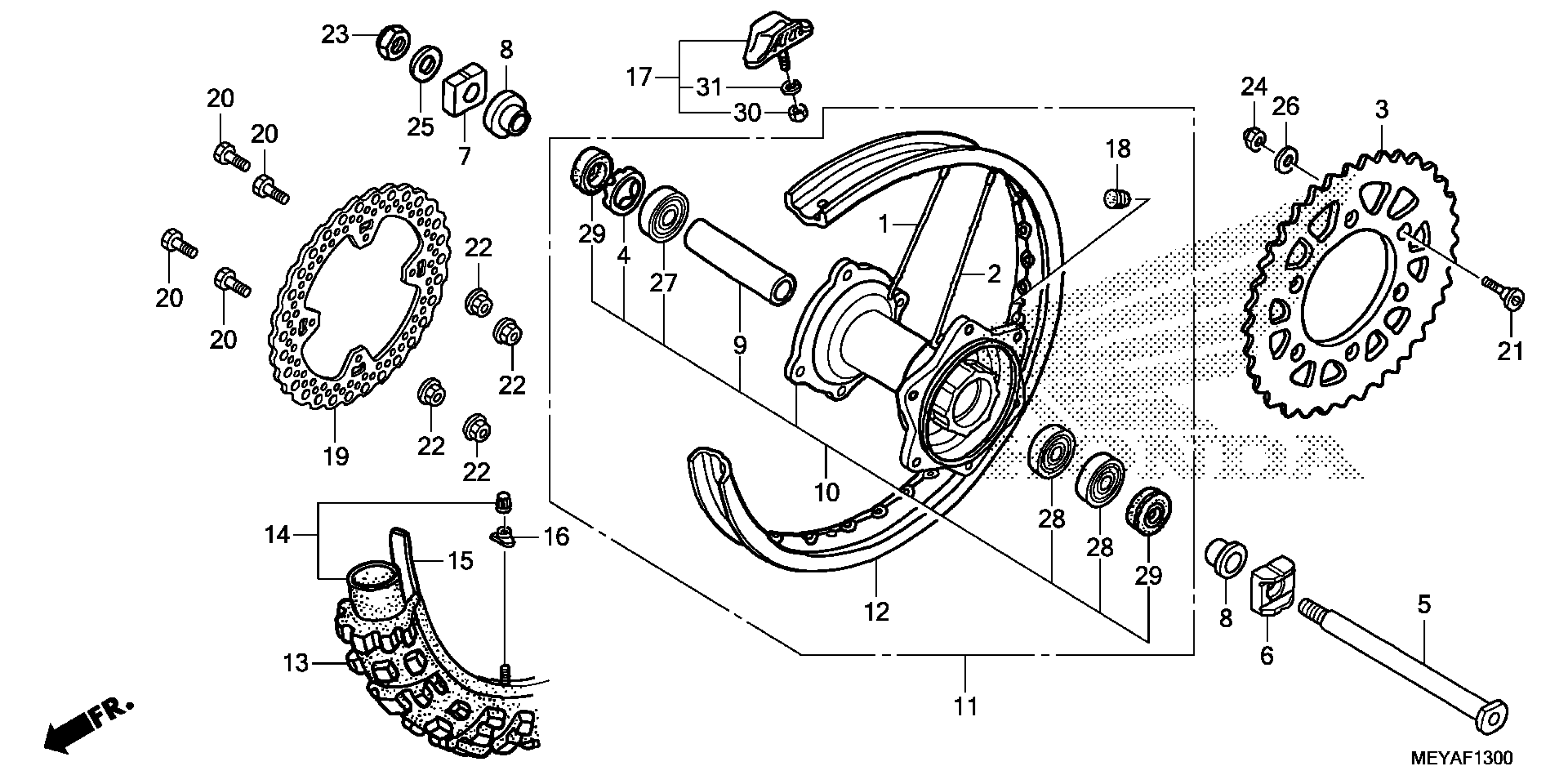

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 REAR WHEEL Diagram

SPOKE SET, RR. (INSIDE)

06420-MEY-000

$4.85

SPOKE SET, RR. (OUTSIDE)

06421-MEY-000

$4.85

SPROCKET, FINAL DRIVEN (51T)

41201-MEY-000

$115.77

SPROCKET, FINAL DRIVEN (50T) | (Optional).

41203-KZ3-J20

$110.41

SPROCKET, FINAL DRIVEN (52T) | (Optional).

41203-KZ4-J30

$119.87

RETAINER, RR. WHEEL BEARING

41231-KZ4-J20

$19.28

AXLE, RR. WHEEL

42301-KZ4-J40

$52.11

COLLAR, L. RR. AXLE

42305-KZ4-J40

$16.96

COLLAR, R. RR. AXLE

42306-KZ4-J20

$19.28

COLLAR, RR. WHEEL SIDE

42311-KZ4-J40

$21.21

COLLAR, RR. WHEEL DISTANCE

42620-KZ4-J20

$27.72

HUB SUB-ASSY., RR.

42635-KRN-710

$325.54

WHEEL SUB-ASSY., RR.

42650-KSC-A20

$693.33

RIM, RR. WHEEL (18X2.15)

42701-KSC-A21

$257.51

TIRE, RR. (110/100-18) (64M D756) (DUNLOP) (NOT AVAILABLE)

42711-MEY-004

Unavailable

TUBE, TIRE This part replaces 42712-KS7-641.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-KV6-009.

42712-KT1-673

$37.60

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

FLAP, TIRE (1.85/2.15-18) (DUNLOP)

42713-300-004

$6.14

CAP, VALVE

42714-KA3-710

$10.46

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

CAP, RIM HOLE

42717-329-000

$4.21

DISK, RR. BRAKE

43351-MEN-A10

$200.87

BOLT, DISK (6X19)

90105-MAC-680

$4.99

SCREW, FLAT (8X31)

90125-KA4-000

$3.08

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

NUT, U (22MM)

90305-KZ4-J20

$8.96

NUT, U (8MM) (FUSE RASHI)

90309-ML3-791

$4.35

WASHER (22X35X2)

90401-KZ4-J20

$2.89

WASHER (8MM)

90465-MC4-000

$2.51

BEARING, RADIAL BALL (69052RS)

91051-KZ4-J21

$18.42

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

DUST SEAL (32X43X7)

91251-KZ4-J21

$4.94

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
