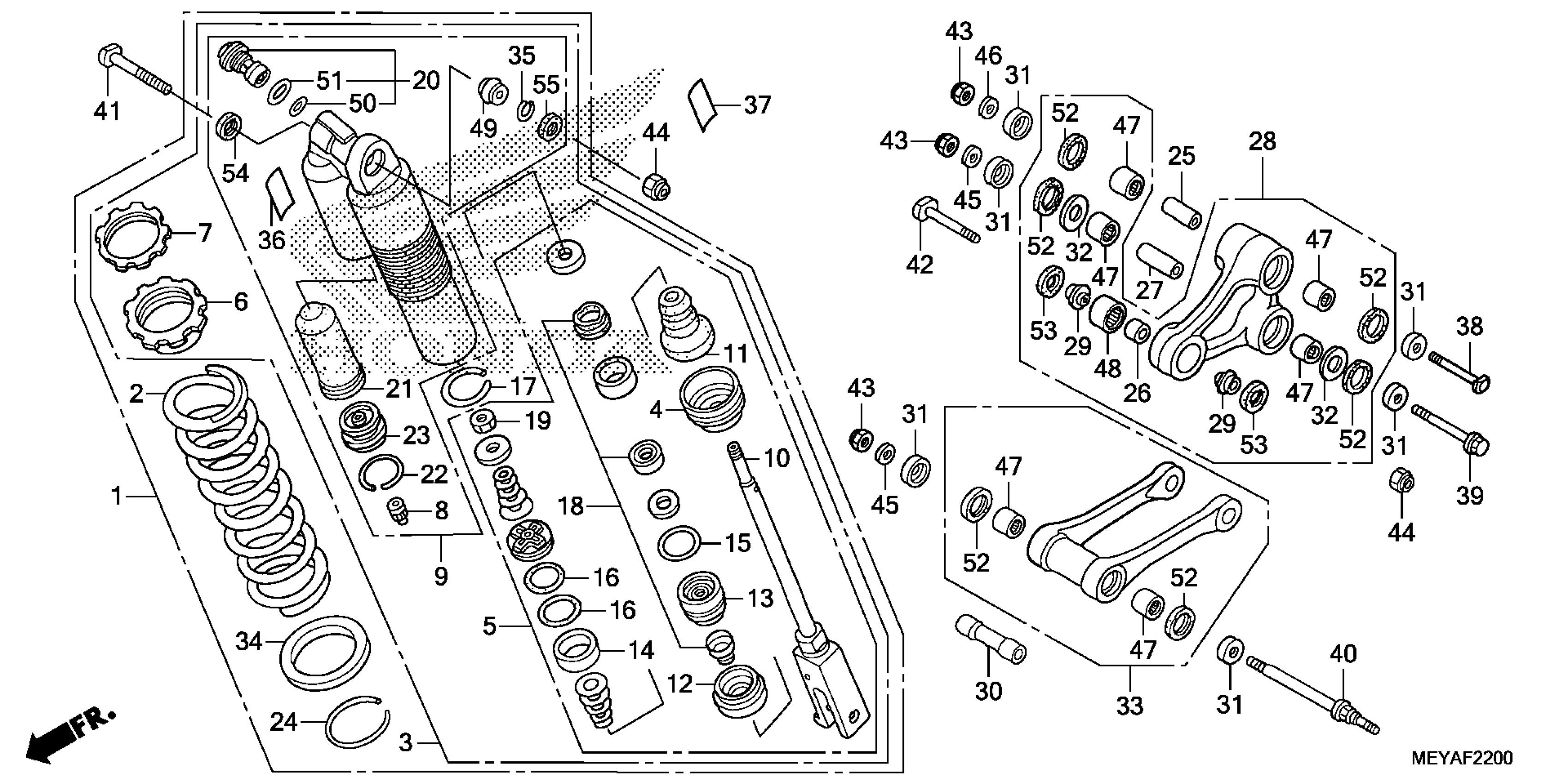

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MEY-305

$1,431.21

2

SPRING, RR. SHOCK ABSORBER (53.9N/MM,5.5KGF/MM) (SHOWA)

52401-MEN-A21

$171.28

2

SPRING, RR. SHOCK ABSORBER (55.9N/MM,5.7KGF/MM) (SHOWA) | (Optional).

52402-MEN-A21

$163.90

2

SPRING, RR. SHOCK ABSORBER (52.0N/MM,5.3KGF/MM) (SHOWA) | (Optional).

52403-MEN-A21

$163.90

3

DAMPER, RR. (COO)

52410-MEY-305

$1,115.93

4

STOPPER, SPRING SEAT

52419-KZ3-J21

$22.46

5

ROD, PISTON

52421-MEY-A21

$434.82

6

ADJUSTER, SPRING

52422-KZ3-J31

$34.30

7

NUT, ADJUSTER

52423-KZ3-J21

$15.72

8

CAP, AIR VALVE

52425-381-771

$5.05

9

CASE, DAMPER

52425-MEY-671

$645.57

10

ROD

52426-MEN-711

$293.74

11

RUBBER, STOPPER

52427-KZ3-891

$19.01

12

PLATE, END

52428-KRN-711

$14.38

13

CASE, ROD GUIDE

52429-KZ3-J41

$19.97

14

RING, PISTON

52431-KZ3-J31

$15.74

15

O-RING (3.5X43.7)

52434-KZ3-J21

$3.72

16

O-RING (42.5X2.0)

52434-KZ3-J31

$3.45

17

RING, STOPPER

52435-KZ3-J21

$2.38

18

OIL SEAL SET

52436-MEN-671

$24.43

19

NUT, HEX. (12MM)

52438-KA4-741

$2.92

20

ADJUSTER, COMPRESSION DAMPING FORCE

52440-MEN-671

$136.41

21

BLADDER

52451-KZ3-891

$18.54

22

RING, STOPPER

52452-KS7-831

$2.90

23

CAP, CHAMBER

52453-KRN-711

$27.66

24

RING, STOPPER

52455-KZ3-J21

$5.80

25

COLLAR C, CUSHION ARM

52463-KZ4-J40

$5.71

26

COLLAR D, CUSHION ARM

52464-KRN-710

$10.24

27

COLLAR B, CUSHION

52464-KZ4-J20

$6.96

28

ARM SUB-ASSY., CUSHION

52465-MEY-000

$324.79

29

COLLAR D, CUSHION ARM SIDE

52466-KRN-710

$3.89

30

COLLAR A, CONNECTING ROD

52473-KZ4-J20

$16.15

31

COLLAR, LINK SIDE

52475-KZ4-J20

$6.78

32

WASHER, THRUST

52476-KZ4-J20

$5.19

33

ROD SUB-ASSY., CUSHION CONNECTING

52479-MEY-A20

$229.54

34

SEAT, SPRING

52486-KZ3-J21

$27.00

35

RING, STOPPER

52487-KA4-831

$3.92

36

LABEL, RR. DAMPER WARNING

87516-KZ1-600

$6.93

38

BOLT, LINK (12X82)

90130-MEN-840

$9.71

39

BOLT, LINK (12X92)

90131-MEN-840

$9.33

40

BOLT, LINK (12X120)

90131-MEY-000

$12.11

41

BOLT, CUSHION (UPPER) (10X53)

90152-MEB-750

$2.92

42

BOLT, CUSHION (LOWER) (10X43.5)

90153-KZ4-710

$9.38

43

NUT, HEX. (12MM) This part replaces 90306-KBP-901.

90306-GAB-711

$9.10

44

NUT, U (10MM)

90306-KZ4-711

$3.74

45

WASHER, PLAIN (12MM)

90501-KRN-710

$3.95

46

WASHER, PLAIN (12MM)

90501-KZ4-J40

$2.23

47

BEARING, NEEDLE (20X26X15)

91051-KSC-003

$8.78

48

BEARING, NEEDLE (19X26X13)

91074-KRN-711

$8.50

49

BEARING, SPHERICAL (10)

91074-MAC-741

$35.03

50

O-RING (21.5X1.5)

91256-KZ3-731

$2.84

51

O-RING (26.2X1.9)

91257-KZ3-891

$3.38

52

DUST SEAL (25X32X4)

91262-KZ3-731

$7.50

53

DUST SEAL (17.5X26X3)

91351-KRN-711

$2.92

54

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

55

DUST SEAL (16X26X3)

91351-MAC-671

$5.78
