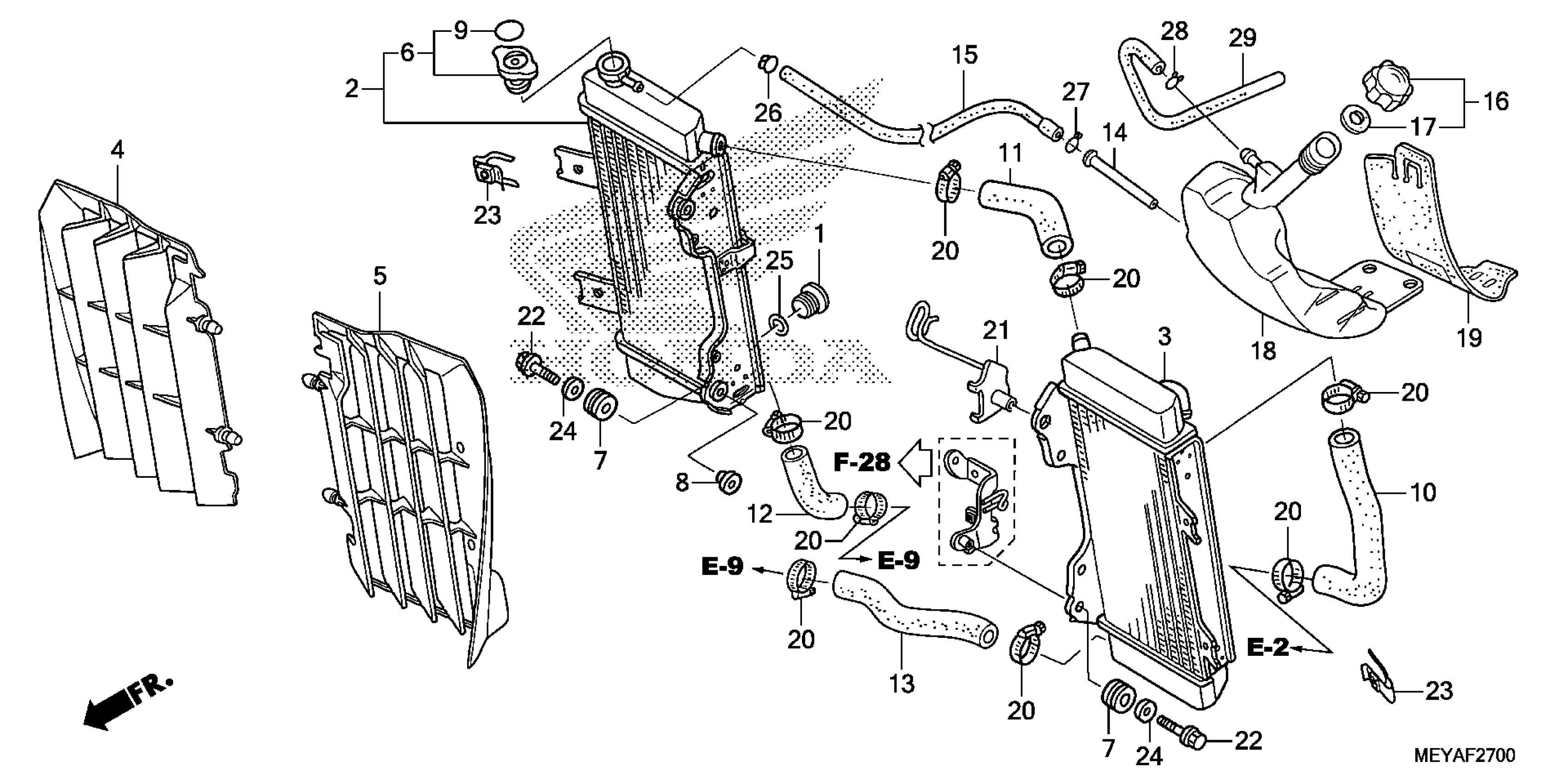

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 RADIATOR Diagram

#

Description
Price

1

BOLT, SEALING (16MM)

12206-881-310

$4.99

2

RADIATOR, R. This part replaces 19010-MEY-305.

19010-MEY-671

$317.51

3

RADIATOR, L. This part replaces 19015-MEY-305.

19015-MEY-671

$317.51

4

GRILLE, R. RADIATOR

19033-MEY-670

$34.70

5

GRILLE, L. RADIATOR

19034-MEY-670

$34.70

6

CAP, RADIATOR

19037-KRN-641

$38.16

7

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.47

8

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

9

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-KRN-641

$3.96

10

HOSE B, WATER

19062-MEY-670

$11.37

11

HOSE D, WATER

19064-KRN-000

$8.74

12

HOSE D, WATER

19064-MEY-670

$9.56

13

HOSE E, WATER

19065-MEY-670

$14.59

14

TUBE, RESERVE TANK

19101-MEY-670

$5.69

15

HOSE, RESERVE TANK

19102-MEY-670

$11.72

16

CAP ASSY., RESERVE TANK

19105-MG8-000

$11.54

17

GASKET, RESERVE TANK

19107-MG8-000

$4.68

18

TANK, RADIATOR RESERVE (COO)

19110-MEY-305

$30.57

19

RUBBER, RESERVE TANK

19114-MEY-670

$13.07

20

CLAMP B, WATER HOSE

19506-KS6-700

$7.16

21

GUIDE, MAIN HARNESS

50129-MEY-A10

$16.01

22

BOLT, FLANGE (6X23.5)

90001-GB4-000

$1.75

23

NUT, CLIP (6MM)

90303-KRN-000

$2.47

24

WASHER, RADIATOR MOUNTING

90403-KA3-830

$2.18

25

O-RING (13.5X1.4)

91307-PH7-660

$2.80

25

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.80

26

CLIP, TUBE (B10)

95002-02100

$1.75

27

CLIP, TUBE (B12.5)

95002-02130

$1.06

28

CLIP, TUBE (C9)

95002-50000

$1.16

29

BULK HOSE, VACUUM (5X3000) (5X300)

95005-50003-30M

Unavailable
