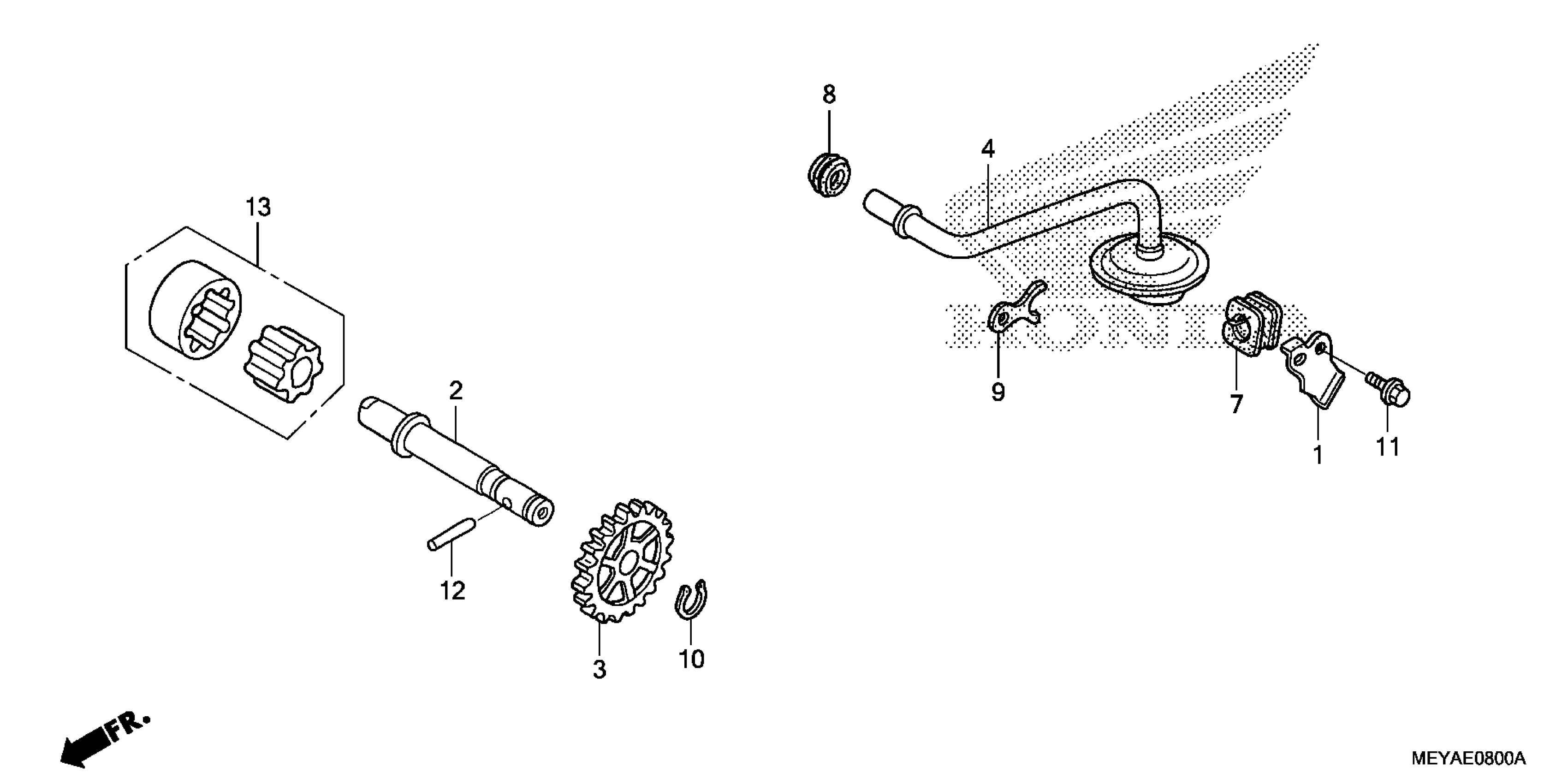

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 OIL PUMP Diagram

#

Description
Price

1

PLATE, CAM CHAIN GUIDE

11206-MEY-670

$4.30

2

SHAFT, OIL PUMP

15111-MEY-670

$35.71

3

GEAR, OIL PUMP DRIVEN (20T)

15133-MEB-670

$38.83

4

STRAINER, OIL

15150-MEB-670

$27.75

7

GROMMET, OIL SCAVENGING PIPE

15432-MEB-670

$5.64

8

SEAL, RING

15433-KGB-610

$2.48

9

PLATE, OIL PIPE SETTING

15434-MEB-670

$2.61

10

CIRCLIP (8MM)

90652-KY4-900

$1.17

11

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

12

ROLLER (3X17.8)

96220-30178

$1.20

13

ROTOR SET, OIL PUMP

15021-958-000

$31.66
