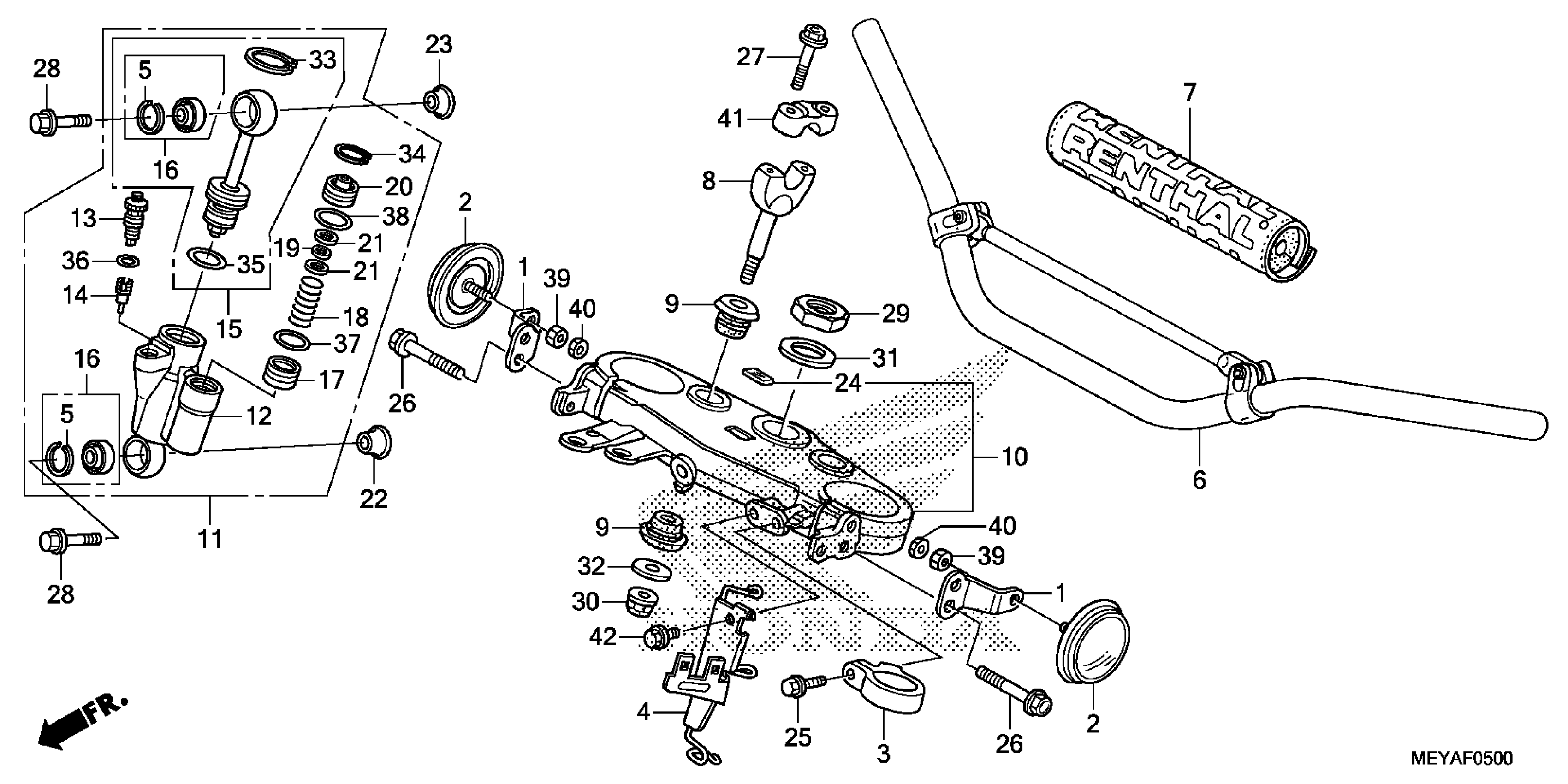

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

3

GUIDE, FR. BRAKE HOSE

45468-KS7-830

$15.54

4

STAY, CONNECTOR

50130-MEY-A20

$25.03

5

RING, STOPPER

52487-MEN-A11

$9.79

6

HANDLEBAR

53100-MEN-670

$115.56

7

PROTECTOR, HANDLE

53121-MEN-671

$44.01

8

HOLDER, HANDLE (LOWER) | (Optional).

53132-KA3-831

$28.06

8

HOLDER, HANDLE (LOWER)

53132-KZ4-J20

$28.06

9

CUSHION, HANDLEBAR

53133-KA3-832

$4.37

10

BRIDGE, FORK TOP

53300-MEY-A20

$222.51

11

DAMPER ASSY., STEERING

53700-MEY-A21

$416.06

12

CASE, DAMPER

53701-MEY-A21

$116.37

13

BOLT, PLUG

53711-MEN-A11

$30.37

14

PIECE, ADJUST

53712-MEN-A11

$9.03

15

ROD, PISTON

53721-MEY-A21

$183.60

16

BEARING

53731-MEN-A11

$81.49

17

PISTON, FREE

53754-MEN-A11

$9.24

18

SPRING, RETURN

53755-MEN-A11

$5.93

19

WASHER

53756-MEY-A21

$4.16

20

CAP, END

53757-MEN-A11

$8.21

21

WASHER

53758-MEY-A21

$4.16

22

COLLAR, STEERING DAMPER

53782-MEY-A20

$5.01

23

COLLAR, STEERING DAMPER TOP

53783-MEY-A20

$3.97

24

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

24

EMBLEM, PRODUCT (UEHARA)

86150-KPG-902

$3.71

25

BOLT, FLANGE (6X16)

90106-MJ0-000

$2.80

26

BOLT, FLANGE (8X45)

90107-KZ4-J40

$1.97

27

BOLT, FLANGE (8X35)

90124-KZ4-J40

$2.09

28

BOLT (7X35.0)

90125-MEY-A20

$4.16

29

NUT, STEERING STEM

90304-KZ4-J30

$7.57

30

NUT, U (10MM)

90306-KZ4-711

$3.58

31

WASHER, STEERING STEM

90503-KZ4-J40

$1.44

32

WASHER, PLAIN (10MM)

90507-KA3-830

$3.58

33

CIRCLIP (23.5)

90651-MEN-A11

$3.51

34

CIRCLIP (17.3)

90652-MEN-A11

$3.37

35

O-RING (18.8X1.9)

91258-KZ3-B01

$2.51

36

O-RING (9.5X1.5)

91351-MEN-A11

$1.91

37

O-RING (11X1.9)

91352-MEN-A11

$1.76

38

O-RING (13.5X1.5)

91353-MEN-A11

$1.91

41

HOLDER B1, HANDLEBAR (UPPER)

95014-22100

$11.14

42

BOLT, FLANGE (6X10)

96001-06010-00

$1.50
