Partiron

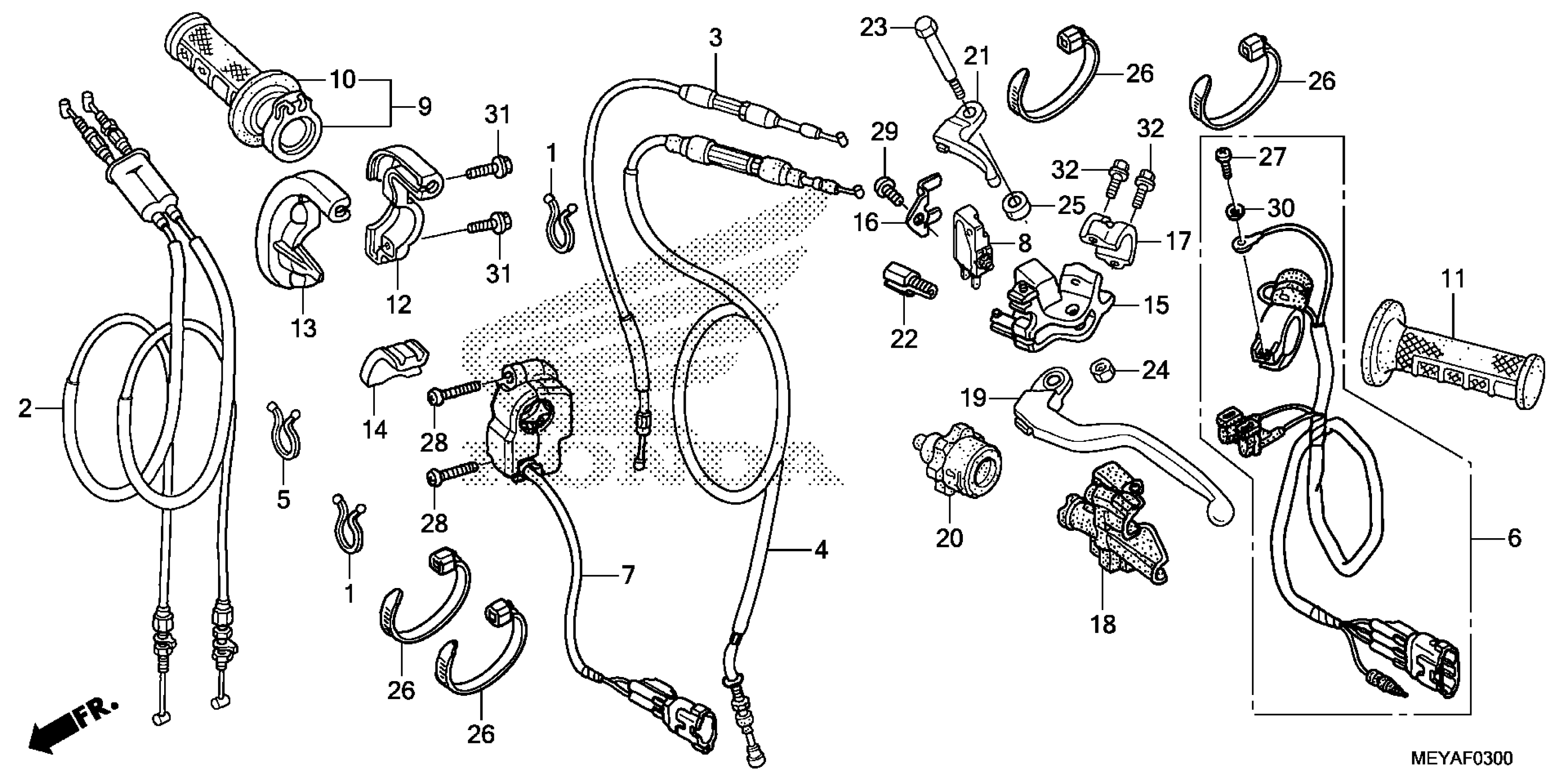

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

HOLDER, TUBE

17233-KCZ-J20

$1.71

2

CABLE, THROTTLE

17910-MEY-A20

$43.62

3

CABLE, HOT STARTER

17950-MEY-A20

$21.44

4

CABLE, CLUTCH

22870-MEY-A20

$27.09

5

LOCK, PURSE

32171-GF9-621

$1.97

6

SWITCH ASSY., ENGINE STOP

35130-MEY-A20

$36.24

7

SWITCH ASSY., STARTER

35150-MEY-A20

$51.69

8

SWITCH ASSY., FR. STOP (COO)

35340-HR0-305

$15.99

8

SWITCH ASSY., FR. STOP (COO) This part replaces 35340-ML4-005.

35340-HR0-305

$15.99

9

GRIP, THROTTLE This part replaces 53140-KSC-305.

53140-MEB-671

$24.39

9

GRIP, THROTTLE

53140-MEB-671

$24.39

10

GRIP, R. HANDLE (COO) This part replaces 53165-GBF-J60.

53165-KPT-305

$9.46

10

GRIP, R. HANDLE (COO)

53165-KPT-305

$9.46

11

GRIP, L. HANDLE (COO)

53166-KPT-305

$9.46

12

HOUSING, THROTTLE (UPPER)

53167-MEB-672

$19.77

13

HOUSING, THROTTLE (LOWER)

53168-KSC-010

$27.49

14

SLIDER, THROTTLE CABLE

53169-MEB-670

$4.13

15

BRACKET, L. HANDLE LEVER

53172-KSC-000

$34.59

16

PLATE, CLUTCH SWITCH

53173-KSC-000

$2.15

17

HOLDER, L. LEVER BRACKET

53174-KCE-670

$12.36

18

COVER, L. HANDLE LEVER

53177-KSC-000

$15.53

19

LEVER, L. HANDLEBAR

53178-KSC-000

$29.63

19

LEVER, L. HANDLEBAR This part replaces 53178-KSC-305.

53178-KSC-000

$29.63

20

DIAL, CLUTCH CABLE ADJUSTING

53179-MEN-671

$10.35

21

LEVER, HOT STARTER

53190-MEN-670

$15.57

22

BOLT, WIRE ADJUSTING

53192-MEN-670

$7.56

23

BOLT, HANDLE LEVER PIVOT

90113-MEY-A10

$4.31

24

NUT, U (6MM)

90301-782-000

$1.50

25

COLLAR, PIVOT

90501-MEN-670

$2.69

26

BAND, WIRE (95MM)

90650-KV6-003

$2.97

27

SCREW, PAN (4X12)

93500-04012-0A

$0.76

27

SCREW, PAN (4X12) This part replaces 93500-04012-1A.

93500-04012-0A

$0.76

28

SCREW, PAN (4X14)

93500-04014-0G

$0.68

29

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

30

WASHER, SPRING (4MM)

94111-04000

$0.99

31

BOLT, FLANGE (6X20)

96001-06020-07

$1.25

32

BOLT, FLANGE (6X22)

96001-06022-00

$1.15
