Partiron

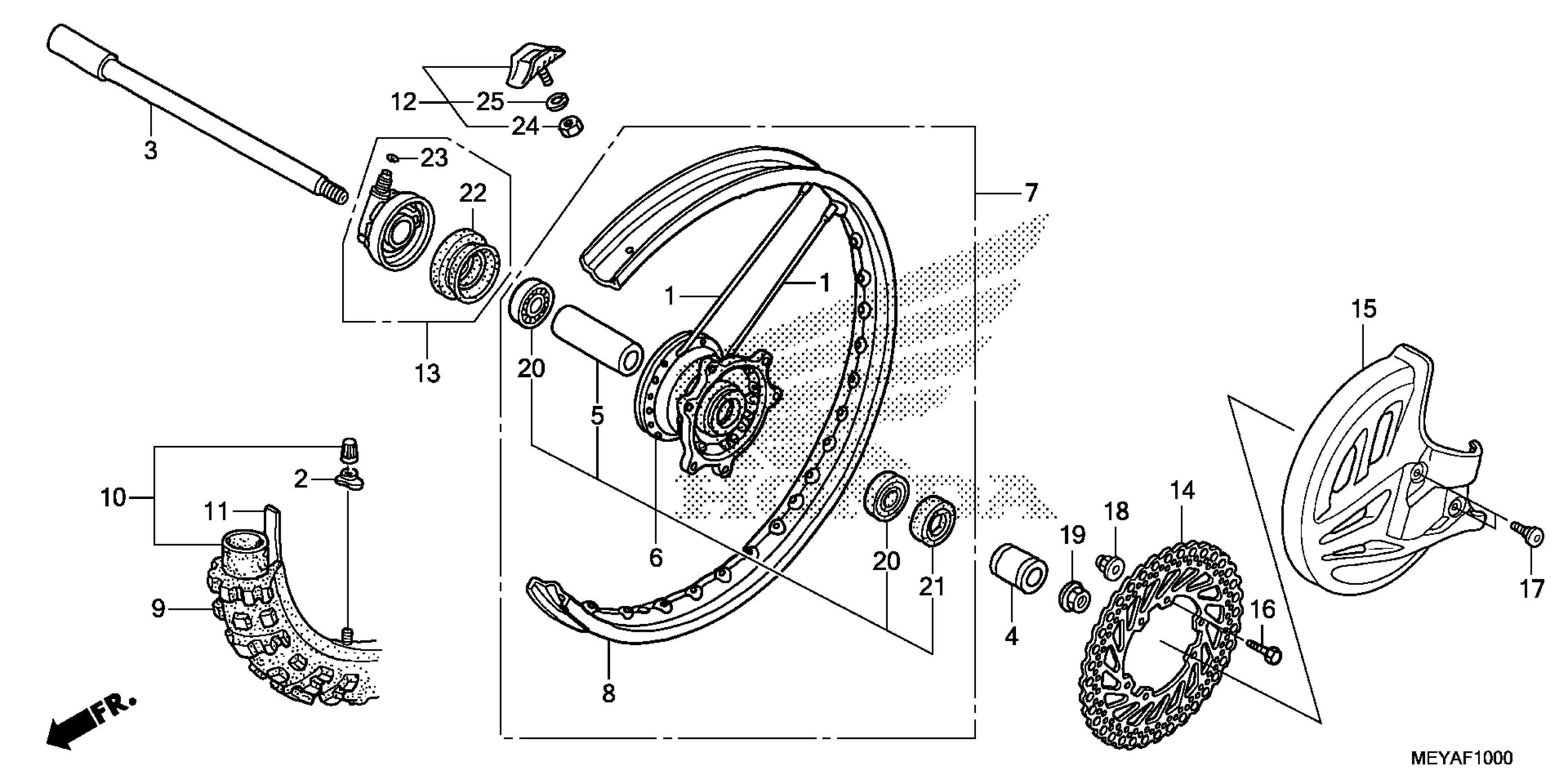

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 FRONT WHEEL Diagram

#

Description
Price

1

SPOKE SET, FR. (240MM)

06440-KZ4-J40

$4.18

2

CAP, VALVE

42714-KA3-710

$9.39

3

AXLE, FR. WHEEL

44301-KSC-000

$50.23

4

COLLAR, L. FR. WHEEL

44311-KZ4-J40

$12.64

5

COLLAR, FR. DISTANCE

44620-MAC-680

$20.13

6

HUB SUB-ASSY., FR.

44635-KSC-000

$193.62

7

WHEEL SUB-ASSY., FR.

44650-KSC-A20

$582.84

8

RIM, FR. WHEEL (21X1.60)

44701-MEN-A11

$223.01

9

TIRE, FR. (80/100-21) (51M) (DUNLOP)

44711-MEN-J01

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 0Y400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-33100.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 08400-34010.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-MC4-005.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-340-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-400-004.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-437-971.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE) This part replaces 44712-446-003.

44712-446-631

Unavailable

10

TUBE, TIRE (2.75/3.00-21) (INOUE)

44712-446-631

Unavailable

11

FLAP, TIRE (DUNLOP)

44713-KS6-641

$5.66

12

STOPPER, BEAD (1.60)

44715-MA0-770

$33.03

13

BOX ASSY., SPEEDOMETER GEAR

44800-KSC-003

$95.78

14

DISK, FR. BRAKE

45351-MEN-A10

$184.19

15

COVER, FR. DISK *TNATURAL* (NATURAL) | Extreme red R292R;

51614-KZ4-J41ZA

$21.20

16

BOLT, DISK (6X19)

90105-MAC-680

$4.65

17

BOLT, FR. DISK COVER

90114-MAC-780

$2.88

18

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.79

19

NUT, FR. AXLE

90301-KZ4-J40

$15.13

20

BEARING, RADIAL BALL (6904)

91062-MAC-681

$21.88

21

OIL SEAL (26X37X7) (ARAI)

91201-KS6-004

$10.21

22

DUST SEAL (46X58X7)

91251-KSC-003

$7.03

23

O-RING (5.5X1.4)

91319-ME5-003

$1.68

24

NUT, HEX. (8MM)

94001-08000-0S

$1.19

25

WASHER, SPRING (8MM)

94111-08000

$0.90
