Description

Price

1

CLAMP A, FR. BRAKE HOSE

45461-MEN-000

$5.91

2

GUIDE, SPEEDOMETER CABLE

45461-MEY-670

$9.39

3

CLAMP B, FR. BRAKE HOSE

45462-MEN-000

$4.36

4

SPRING, FR. FORK (4.6N/MM,0.47KGF/MM) (SHOWA)

51401-MEY-A21

$82.99

4

SPRING, FR. FORK (4.4N/MM,0.45KGF/MM) (SHOWA) | (Optional).

51402-MEY-A21

$82.99

4

SPRING, FR. FORK (4.8N/MM,0.49KGF/MM) (SHOWA) | (Optional).

51403-MEY-A21

$86.75

5

TUBE (OUTER) (COO)

51410-MEY-305

$513.46

6

RING, BACK-UP

51412-KRN-711

$5.97

7

BUSH, GUIDE

51414-KZ3-B01

$15.09

8

BUSH, SLIDER

51415-KZ3-B01

$8.67

9

PIPE, R. SLIDE

51420-MEY-A21

$330.58

10

DAMPER, FR.

51430-MEY-A21

$324.03

11

BUSH B, SLIDER

51431-KZ3-B01

$8.67

12

COLLAR, REBOUND NEEDLE

51437-KZ3-J41

$8.83

13

BOLT, CENTER

51440-KRN-711

$24.50

14

RING, OIL SEAL STOPPER

51447-KZ3-003

$4.76

15

BOLT ASSY., FR. FORK

51450-MEY-A21

$146.39

16

NUT, LOCK

51451-KZ3-B01

$13.99

17

BUSH C, SLIDER

51453-KZ3-B01

$6.08

18

BOLT, PLUG

51456-KZ3-J41

$5.78

19

RING, WEAR

51476-MEY-003

$4.56

20

FORK SUB-ASSY., R. FR. (COO) (SHOWA)

51480-MEY-305

$1,541.16

21

SEAL SET, FR. FORK

51490-KSC-003

$21.47

22

PIPE, L. SLIDE

51520-MEY-A21

$345.51

23

FORK SUB-ASSY., L. FR. (COO) (SHOWA)

51580-MEY-305

$1,541.16

24

PROTECTOR, R. FR. FORK TNATURAL (NATURAL) | Extreme red R292R;

51610-MEY-000ZA

$43.61

25

PROTECTOR, L. FR. FORK TNATURAL (NATURAL) | Extreme red R292R;

51620-MEN-000ZA

$43.43

26

BOLT, FLANGE (8X40)

90108-KZ4-J40

$1.94

27

BOLT, FLANGE (6MM)

90113-KZ3-000

$2.58

28

BOLT, PROTECTOR

90113-MAC-780

$3.28

29

DUST SEAL

91254-KSC-003

$10.01

30

O-RING (26.7X3.5)

91256-KZ3-A71

$2.88

31

O-RING (27.7X1.9)

91257-MEB-751

$2.07

32

O-RING (18.8X1.9)

91258-KZ3-B01

$2.48

33

O-RING (3.5X1.5)

91301-KZ3-711

$2.46

34

O-RING (44.7X2.4)

91356-KZ3-003

$3.66

35

O-RING (37.2X2.4) (SHOWA)

91356-MW0-003

$2.67

36

SCREW, TAPPING (4X10)

93913-14110

$0.58

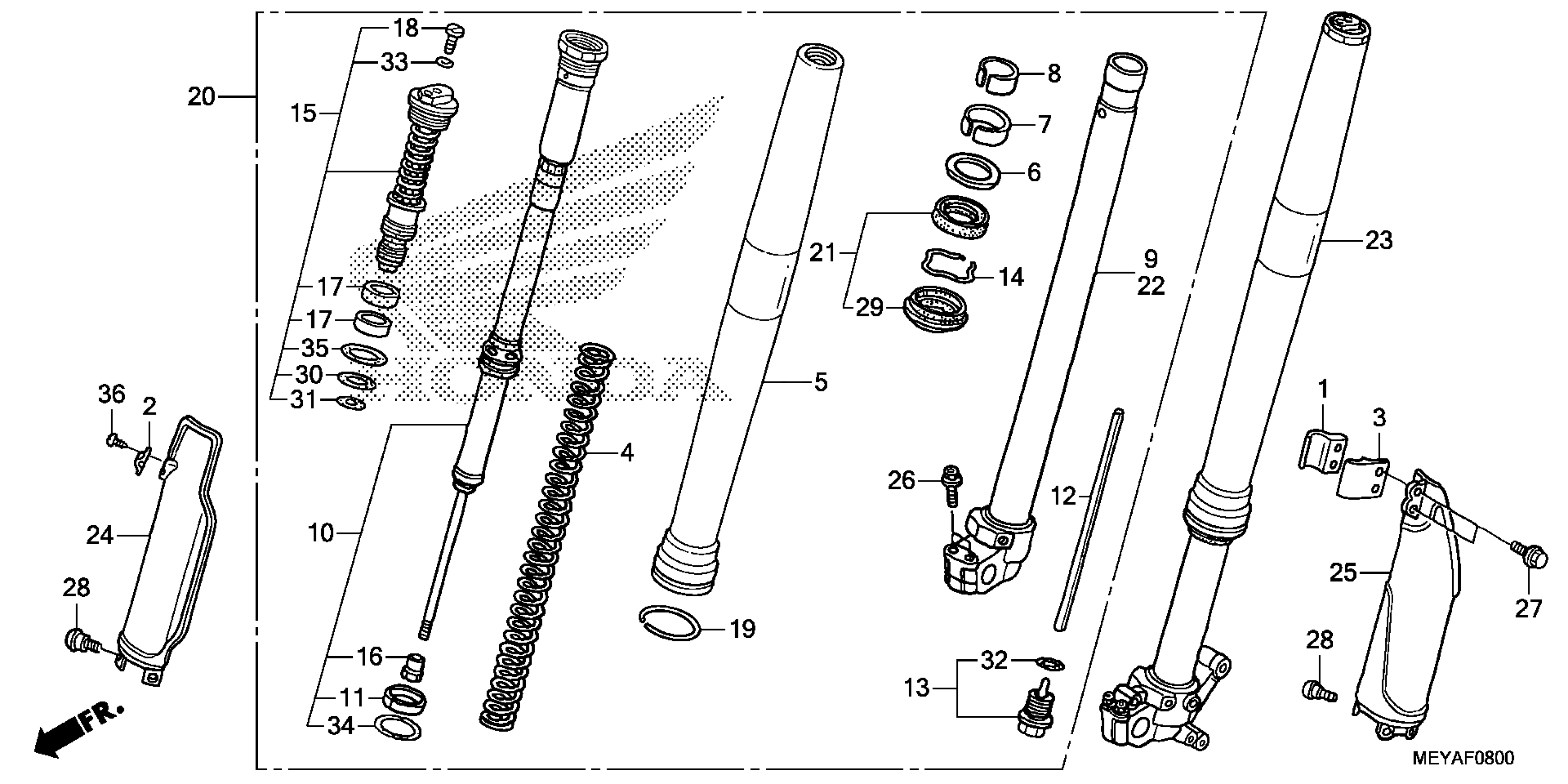

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 FRONT FORK Diagram
