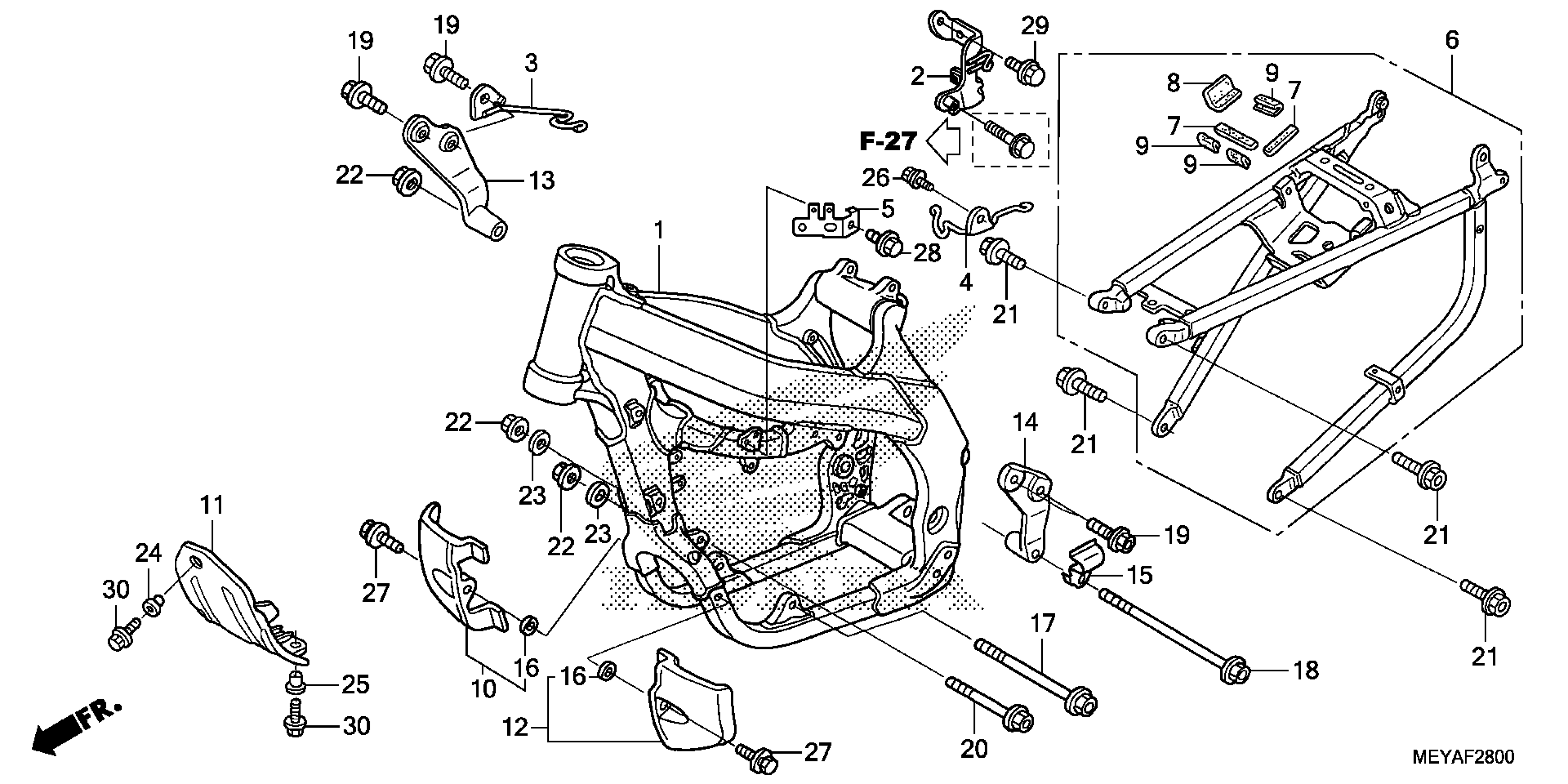

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 FRAME Diagram

#

Description
Price

1

FRAME

50100-MEY-A20

$2,601.31

2

STAY, IGNITION COIL

50131-MEY-A20

$17.10

3

GUIDE, CLUTCH CABLE

50170-MEY-670

$8.03

4

GUIDE, BREATHER

50171-MEY-670

$10.07

5

STAY, CONNECTOR

50180-MEY-A20

$7.54

6

FRAME, RR.

50200-MEY-A20

$604.99

7

RUBBER, BATTERY

50283-KSC-300

$1.25

8

RUBBER, BATTERY

50283-MEY-670

$1.06

9

RUBBER, SEAT RAIL

50283-MR7-300

$2.80

10

GUARD, R. ENGINE

50356-MEY-670

$18.72

11

GUARD, CENTER ENGINE

50357-MEY-670

$29.56

12

GUARD, L. ENGINE

50360-MEY-670

$19.60

13

PLATE, R. HEAD HANGER

50407-MEY-670

$73.32

14

PLATE, L. HEAD HANGER

50408-MEY-670

$67.53

15

GUIDE, FUEL TUBE

50410-MEN-670

$7.84

16

COLLAR (6.5X11X3)

50618-KE8-000

$2.66

17

BOLT, FLANGE (10X132)

90101-MEN-670

$5.18

18

BOLT, FLANGE (10X172)

90102-MEY-670

$7.75

19

BOLT, FLANGE (8X18)

90103-MEB-670

$1.81

20

BOLT, FLANGE (10X126)

90104-MEY-670

$6.24

21

BOLT, FLANGE (10X26)

90122-KRN-000

$2.28

22

NUT, FLANGE (10MM)

90302-KZ3-J40

$2.51

23

WASHER (10MM)

90410-HC4-000

$3.65

24

COLLAR, FR. ENGINE GUARD

90503-MEY-670

$3.19

25

COLLAR, ENGINE GUARD

90504-MEY-670

$3.00

26

BOLT-WASHER (5X10)

93401-05010-00

$0.94

27

BOLT-WASHER (6X20)

93404-06020-00

$1.50

28

BOLT, FLANGE (6X10)

96001-06010-00

$1.50

29

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

30

BOLT, FLANGE (6X20)

96001-06020-00

$1.15
