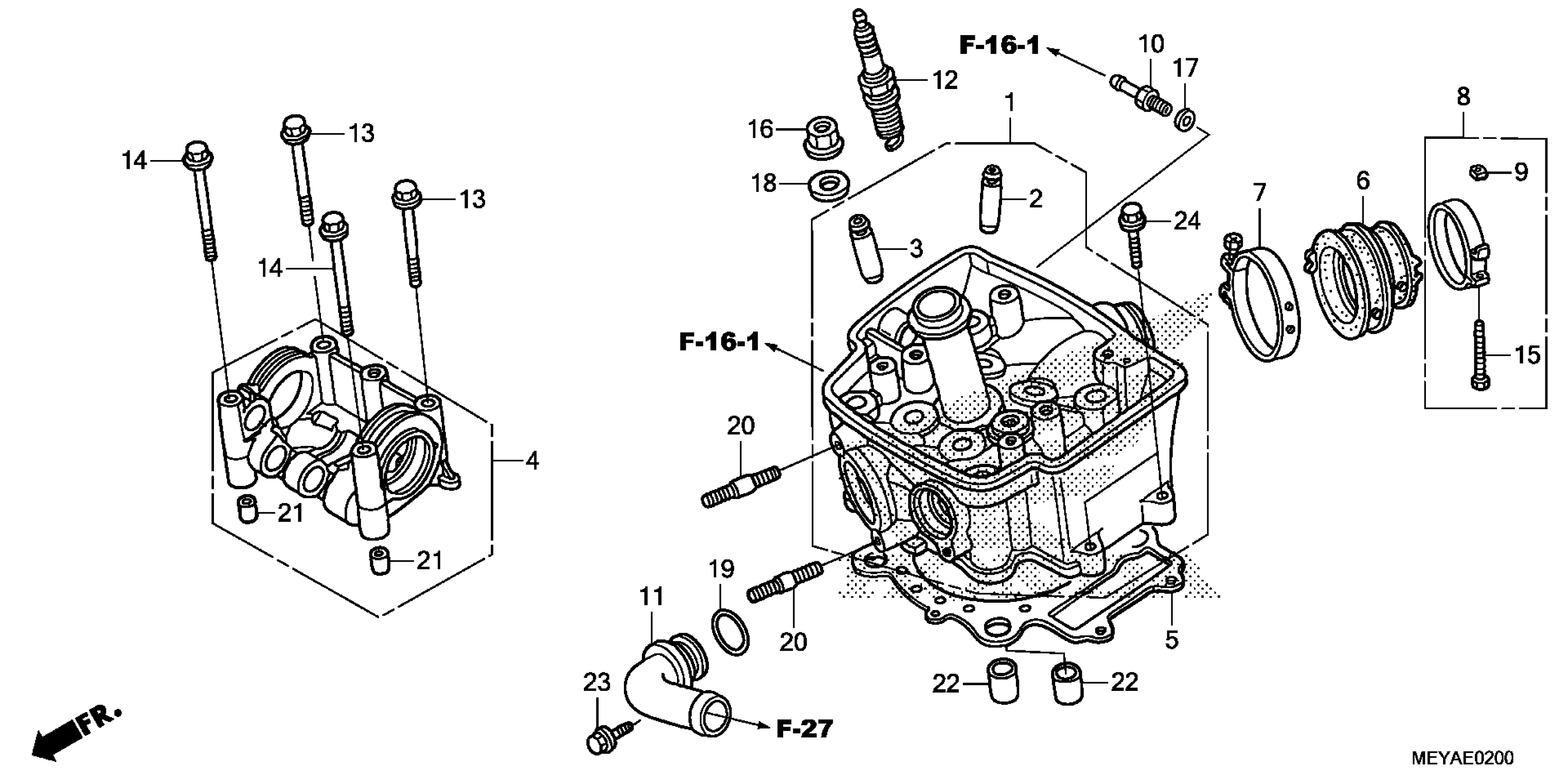

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD

12200-MEY-771

$569.80

2

GUIDE, VALVE (OVER SIZE)

12204-MEB-P00

$16.96

3

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$15.97

4

HOLDER, CAMSHAFT

12240-MEB-771

$134.39

5

GASKET, CYLINDER HEAD

12251-MEY-671

$50.71

6

INSULATOR, CARBURETOR

16210-MEB-670

$14.02

7

BAND, INSULATOR

16218-MCA-000

$7.30

8

BAND B, INSULATOR

16218-MCJ-000

$8.76

9

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

10

JOINT, BOOST

17113-KSC-670

$3.44

11

JOINT, WATER

19523-KRN-730

$16.74

12

SPARK PLUG (IFR8H11) (NGK)

31918-MEB-671

$16.03

12

SPARK PLUG (VK24PRZ11) (DENSO)

31918-MEB-672

$14.23

12

SPARK PLUG (VK27PRZ11) (DENSO) | (Optional). This part replaces 31919-MEB-671.

31919-MEB-672

$14.23

12

SPARK PLUG (VK27PRZ11) (DENSO) | (Optional).

31919-MEB-672

$14.23

13

BOLT, FLANGE (6X65)

90002-MEB-770

$3.33

14

BOLT, FLANGE (6X72)

90003-MEB-770

$3.33

15

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.51

16

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

16

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

16

NUT, FLANGE (10MM)

94050-10000

$1.59

17

WASHER, SEALING (5MM)

90452-323-000

$1.59

18

WASHER, PLAIN (10MM)

90453-KCY-670

$4.15

19

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

20

BOLT, STUD (8X22)

92900-08022-0B

$2.13

21

PIN, DOWEL (8X10)

94301-08100

$2.25

22

PIN, DOWEL (14X20)

94301-14200

$2.28

23

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

24

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
