Description

Price

1

CRANKCASE, R.

11100-MEY-A20

$483.06

2

GASKET, CRANKCASE This part replaces 11191-MEY-671.

11191-MEY-672

$16.06

3

CRANKCASE, L.

11200-MEY-A20

$412.24

4

JET, PISTON (#80)

11210-KRN-730

$18.98

5

VALVE, REED

18601-MBW-003

$15.74

6

LEVER, CLUTCH LIFTER

22810-MEY-670

$49.28

7

PLATE, CLUTCH LEVER

22813-MEB-670

$3.02

8

RECEIVER, CLUTCH CABLE

22838-MEY-670

$13.32

9

SCREW, SPECIAL FLAT (6X17)

90001-MEN-850

$1.66

10

BOLT, STUD (12X148)

90031-MEB-670

$5.10

11

PLATE, BEARING HOLDER

90441-KRN-670

$2.80

12

WASHER, SEALING (8MM)

90474-333-000

$4.15

13

WASHER, SEALING (6MM)

90488-425-000

$2.10

14

GUIDE, TUBE

90610-MEB-670

$10.80

15

BEARING, RADIAL BALL (30X76X19)

91001-MEY-671

$60.57

16

BEARING, SPECIAL ROLLER (NTN)

91002-MEY-671

$45.83

17

BEARING, NEEDLE (9MM) (NTN)

91006-HA0-003

$12.24

18

BEARING, SHELL (33X38X8) (NTN)

91022-KA4-740

$16.41

18

BEARING, SHELL (33X38X8)

91022-KA4-741

$15.54

19

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

19

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

20

OIL SEAL (38X52X7) (ARAI)

91201-MEB-671

$12.07

21

OIL SEAL (39X56X7.5) (ARAI)

91202-MEY-671

$13.34

22

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.65

23

OIL SEAL (12X18X3) (ARAI)

91205-MEB-671

$3.29

24

PIN, DOWEL (14X20)

94301-14200

$2.80

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

26

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

27

BOLT, FLANGE (6X40)

96001-06040-00

$2.75

28

BOLT, FLANGE (6X50)

96001-06050-00

$2.69

29

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable

30

BOLT, FLANGE (6X75)

96001-06075-00

$2.06

31

BOLT, FLANGE (8X65)

96300-08065-00

$2.21

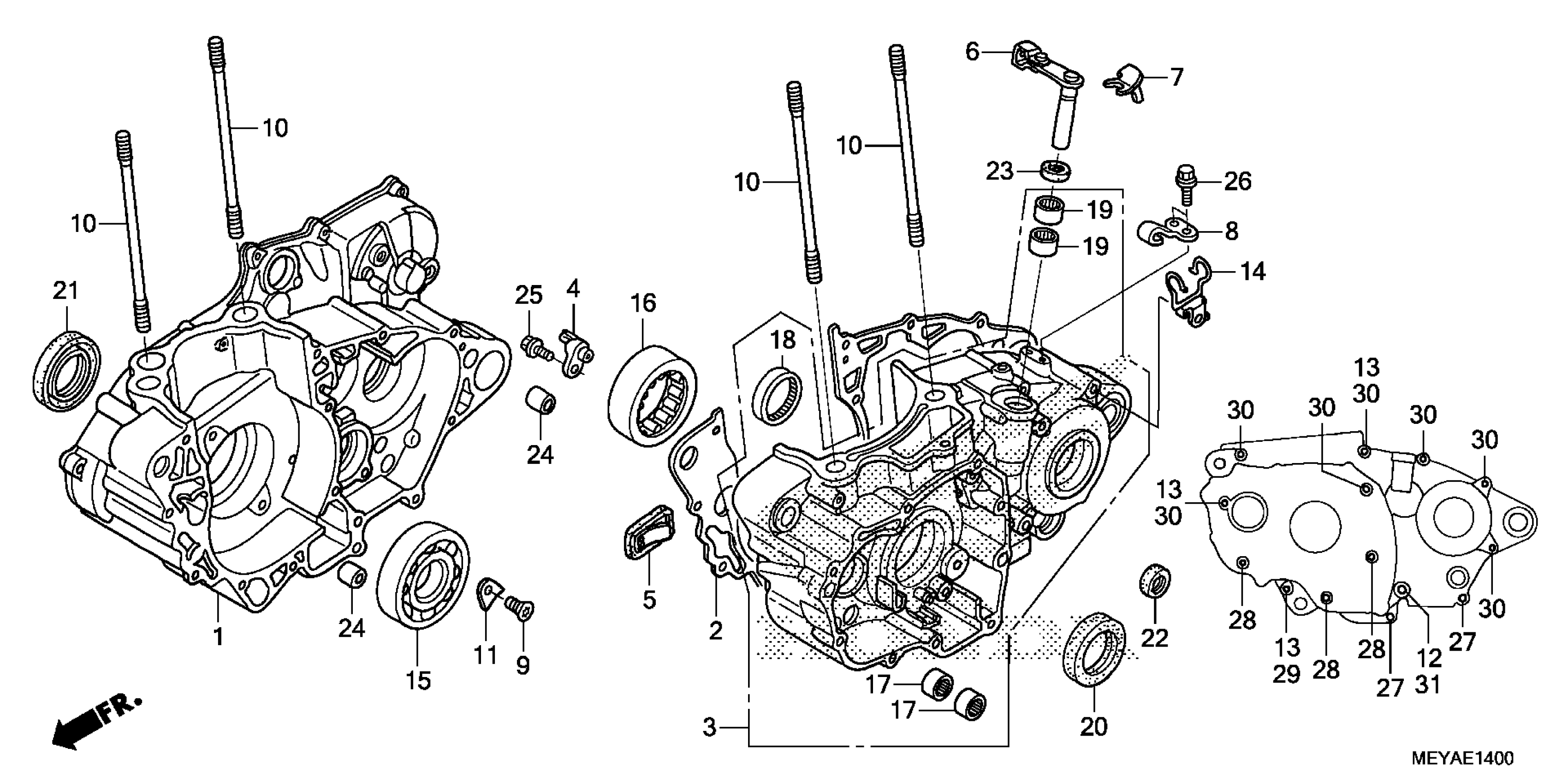

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 CRANKCASE Diagram
