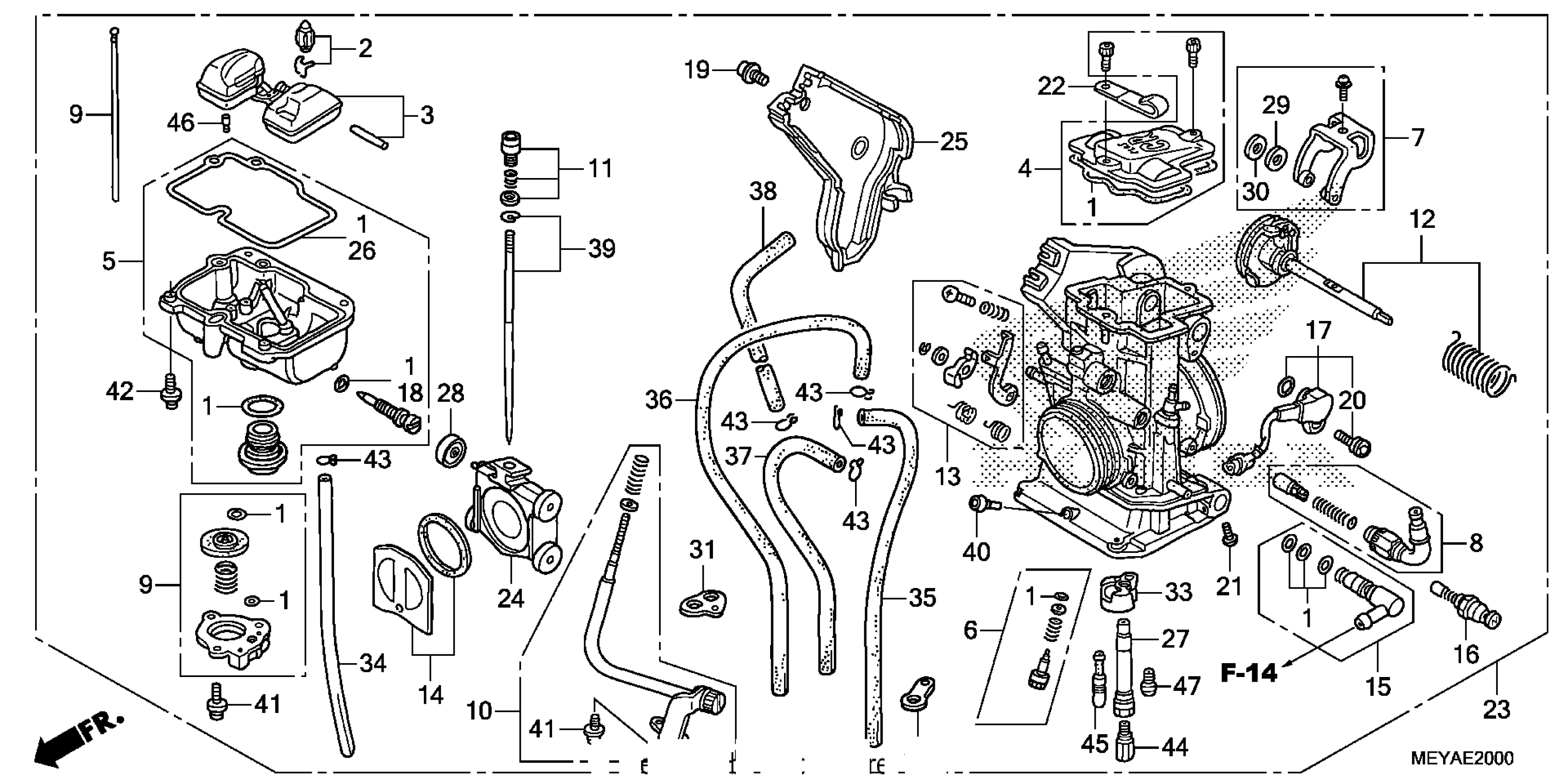

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-MEN-851

$26.27

2

VALVE SET, FLOAT

16011-MEN-851

$42.78

3

FLOAT SET

16013-MEB-671

$30.28

4

TOP SET

16014-MEY-A11

$49.38

5

CHAMBER SET, FLOAT

16015-KSC-A11

$84.49

6

SCREW SET A

16016-HP1-B01

$30.85

7

ARM SET, LINK

16018-MEY-A11

$17.03

8

START SET, HOT

16019-MEB-671

$29.28

9

DIAPHRAGM SET, PUMP

16021-MEN-A01

$40.04

10

SCREW SET B

16028-MEN-A01

$43.66

11

SCREW SET, JET NEEDLE

16029-MEY-A11

$12.71

12

SHAFT SET, THROTTLE

16032-KSC-A21

$73.20

13

LEVER SET, PUMP

16033-KSC-A11

$15.70

14

VALVE SET, FLOATING

16037-MEB-671

$118.20

15

JOINT SET, FUEL

16038-KRN-671

$41.85

16

VALVE SET, STARTER

16046-MEB-671

$29.33

17

SENSOR ASSY., THROTTLE

16060-MEY-A11

$166.84

18

O-RING (1.3X4.3)

16076-ND5-004

$2.56

19

BOLT, COVER

16080-HP1-601

$4.07

20

BOLT, BREAK HEAD

16083-HP0-A01

$5.26

21

SCREW, PAN

16083-MEB-671

$1.51

22

CLIP

16088-MEN-731

$7.51

23

CARBURETOR ASSY. (FCR13C A)

16100-MEY-A71

$1,272.62

24

VALVE, THROTTLE

16112-HP1-A01

$307.61

25

COVER, THROTTLE

16157-MEN-A01

$25.22

26

GASKET, FLOAT CHAMBER

16163-MEB-671

$13.13

27

HOLDER, NEEDLE JET

16165-MEY-A11

$15.29

28

ROLLER

16172-MEB-671

$7.72

29

WASHER, PLAIN (PO)

16177-MEB-671

$1.57

30

WASHER, PLAIN (SUS)

16178-MEB-671

$1.49

31

BINDER

16178-MEN-851

$5.25

32

BINDER

16179-MEY-671

$7.36

33

PLATE, BUFFER

16185-MEN-671

$11.26

34

TUBE, OVERFLOW

16196-MEN-851

$8.36

35

TUBE, AIR VENT

16197-MEB-671

$6.34

36

TUBE, AIR VENT

16198-MEY-671

$12.31

37

TUBE, AIR VENT

16199-MEB-671

$6.34

38

TUBE, AIR VENT

16199-MEY-671

$10.28

39

NEEDLE SET, JET

16203-MEY-A22

$33.95

40

PIN, ADJUST SCREW

16312-HP1-B01

$2.84

41

SCREW-WASHER (4X8)

93892-04008-08

$1.49

41

SCREW-WASHER (4X8) This part replaces 93892-04008-18.

93892-04008-08

$1.49

42

SCREW-WASHER (4X14)

93892-04014-08

$1.49

42

SCREW-WASHER (4X14) This part replaces 93892-04014-18.

93892-04014-08

$1.49

43

CLIP, TUBE (B7)

95002-02079

$1.49

44

JET, MAIN (#145)

99101-357-1450

$9.07

45

JET, SLOW (#45)

99103-GBF-0450

$14.02

45

JET, SLOW (#45) This part replaces 99103-KA3-0450.

99103-GBF-0450

$14.02

45

JET, SLOW (#45) This part replaces 99103-440-0450.

99103-GBF-0450

$14.02

46

JET, LEAK (#60)

99108-KSE-0600

$8.34

47

JET, BY-STARTER (#70)

99112-MEY-0700

$12.85
