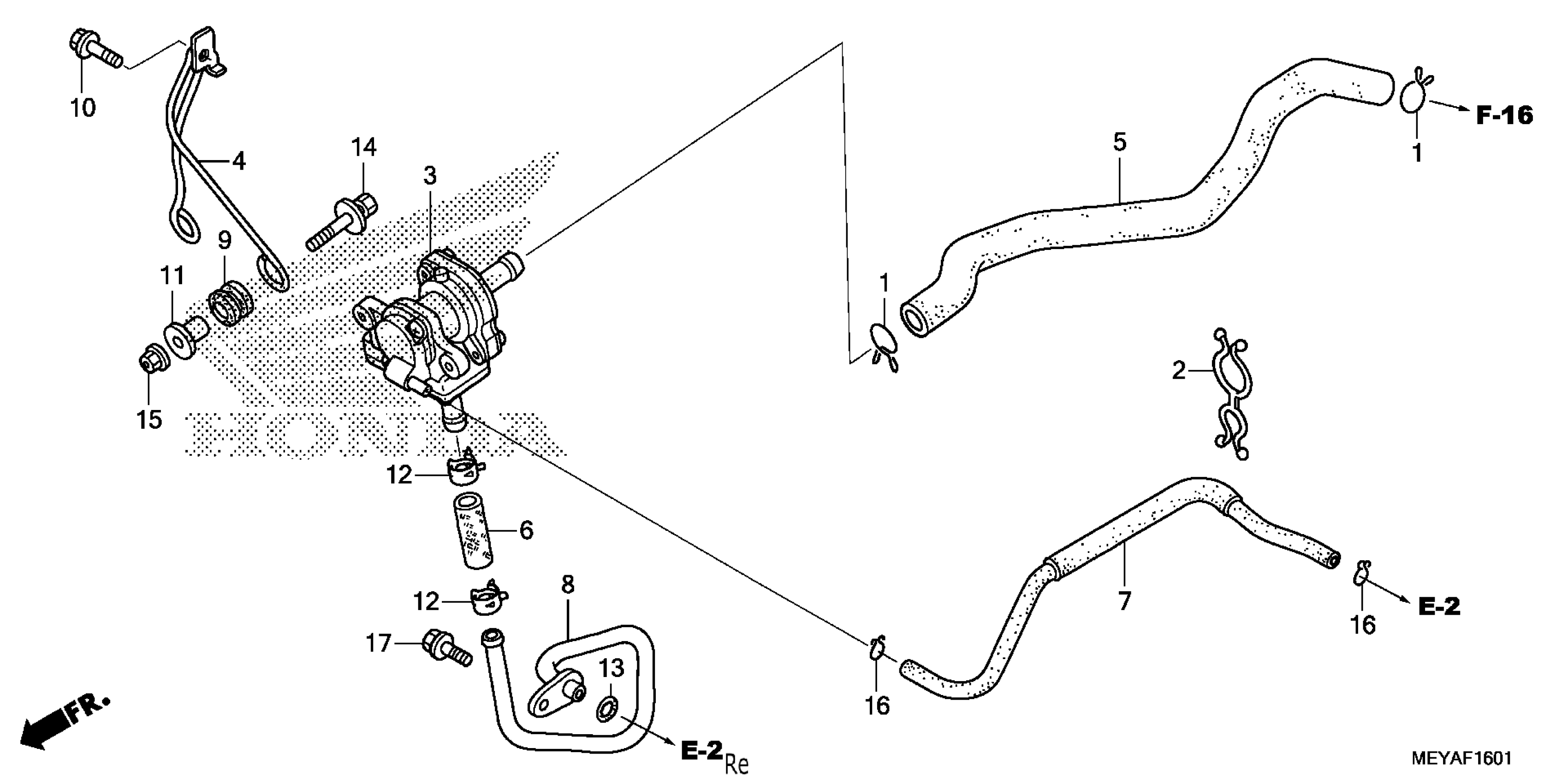

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 AIR SUCTION VALVE Diagram

CLIP, BREATHER TUBE

17316-611-000

$9.23

CLAMP, AIR TUBE

17386-PC7-661

$9.75

VALVE ASSY., AIR SUCTION

18600-MEY-721

$109.80

STAY, AIR SUCTION VALVE

18601-MEY-720

$26.48

TUBE A, AIR SUCTION VALVE

18602-MEY-720

$18.87

TUBE B, AIR SUCTION VALVE

18603-MEY-720

$3.30

TUBE C, AIR SUCTION VALVE

18604-MEY-720

$8.66

PIPE, AIR

18640-MEY-770

$70.30

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.74

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.51

WASHER, FR. COVER SETTING

90501-124-000

$3.74

CLIP, FUEL HOSE

90678-MN5-000

$2.59

O-RING (9.8X1.9)

91305-PE2-003

$2.45

BOLT-WASHER (6X28)

93404-06028-00

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (B7)

95002-02079

$1.49

BOLT, FLANGE (6X16)

96001-06016-02

$1.49
