Partiron

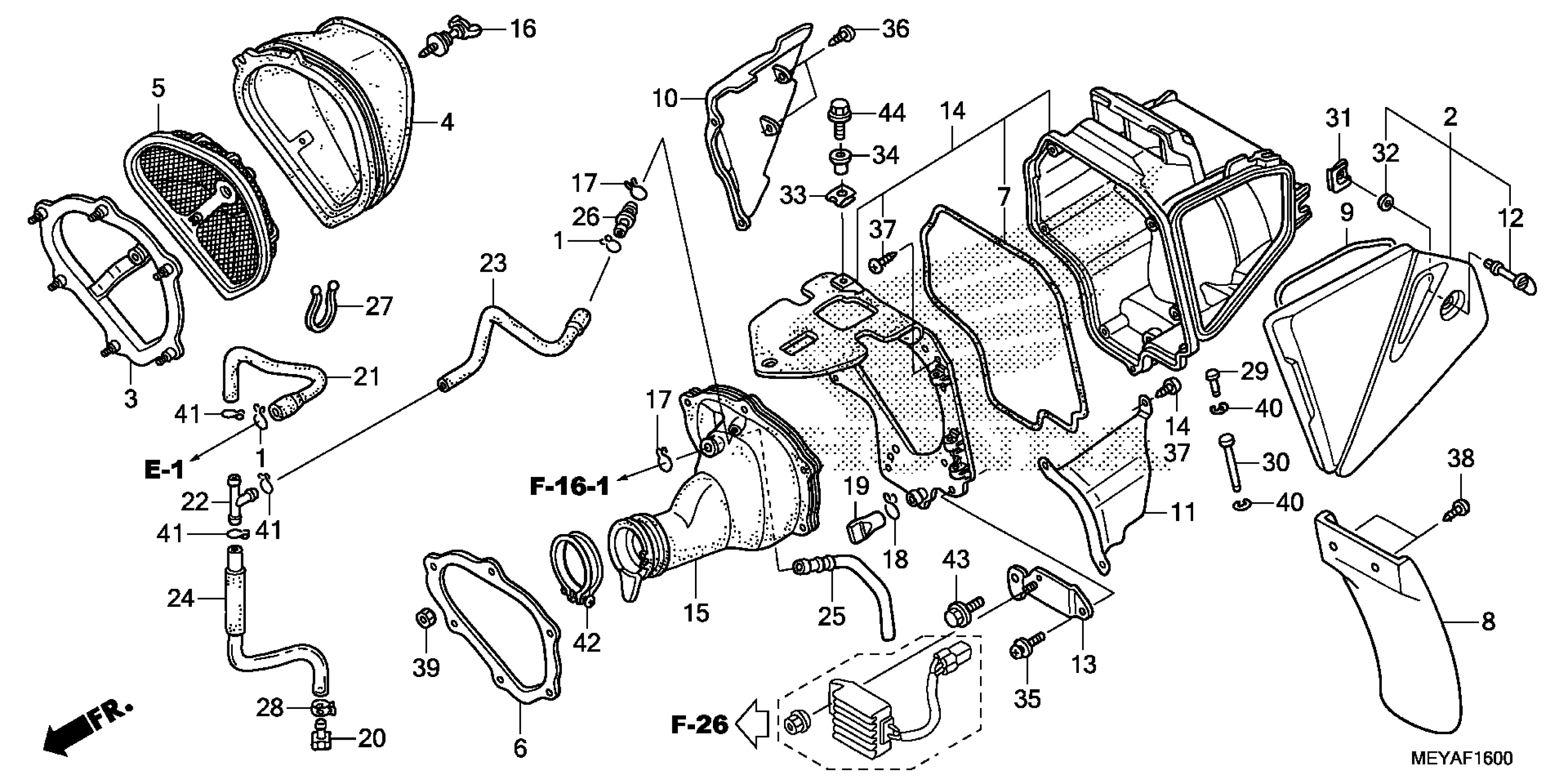

Honda CRF450XAC (17) CRF450X, JPN, VIN# JH2PE061-HK700001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$8.48

2

COVER ASSY., AIR CLEANER

17211-MEY-A30

$49.07

3

STAY, AIR CLEANER ELEMENT

17212-MEN-670

$63.96

4

ELEMENT, AIR CLEANER

17213-KSC-000

$35.69

5

BASE ASSY., ELEMENT

17214-MEN-670

$42.85

6

PLATE, FR. AIR CLEANER HOUSING

17217-MEB-770

$11.71

7

SEAL, AIR CLEANER HOUSING

17218-KSC-000

$7.71

8

SPLASH GUARD, AIR CLEANER HOUSING

17218-MEN-A20

$35.57

9

SEAL, AIR CLEANER COVER

17219-MEY-670

$6.71

10

COVER, R. SIDE

17221-MEY-A30

$17.88

11

GUARD, HEAT

17223-MEY-670

$25.84

12

STUD (6X21)

17225-KN5-671

$6.51

13

STAY, REGULATOR

17231-MEY-670

$7.51

14

HOUSING, AIR CLEANER

17250-MEY-670

$77.04

15

TUBE, AIR CLEANER CONNECTING

17253-MEY-720

$46.91

16

BOLT, ELEMENT SETTING

17291-KSC-000

$6.48

17

CLIP, BREATHER TUBE

17316-611-000

$8.28

18

CLIP A, BREATHER TUBE

17316-MN1-670

$2.22

19

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.60

19

TUBE, DRAIN

17358-HM8-000

$4.60

20

PLUG, BREATHER TUBE

17370-419-700

$3.49

21

TUBE A, BREATHER

17372-MEN-A10

$9.83

22

JOINT, BREATHER THREE WAY

17373-KC1-J10

$8.43

23

TUBE B, BREATHER

17374-MEY-A20

$11.32

24

TUBE C, BREATHER

17375-MEB-670

$5.88

25

PIPE, BREATHER

17376-MEY-720

$29.54

26

JOINT (TWO-WAY)

18631-MAH-710

$7.73

27

LOCK, PURSE

32171-GF9-621

$1.94

28

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

29

PIN, BRAKE LOCK LEVER PIVOT

53189-GCS-000

$1.03

30

PIN, VISOR HINGE

64308-GG2-000

$7.35

31

PLATE, SPRING

64508-KV3-000

$6.72

32

WASHER (5.4X14X0.5)

90505-MY6-920

$1.93

33

NUT, CLIP (6MM)

90305-GK8-000

$2.17

34

COLLAR, AIR CLEANER

90501-KRN-000

$4.77

35

SCREW-WASHER (5X14)

93892-05014-07

$1.03

36

SCREW, TAPPING (4X12)

93903-24380

Unavailable

37

SCREW, TAPPING (5X16)

93903-25380

$0.83

38

SCREW, TAPPING (5X16) (PO)

93913-25410

$1.03

39

NUT, HEX. (5MM)

94002-05070-0S

$0.55

40

E-RING (3MM)

94540-03010

$1.00

41

CLIP, TUBE (B12)

95002-02120

Unavailable

42

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60321

$5.50

43

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

44

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
