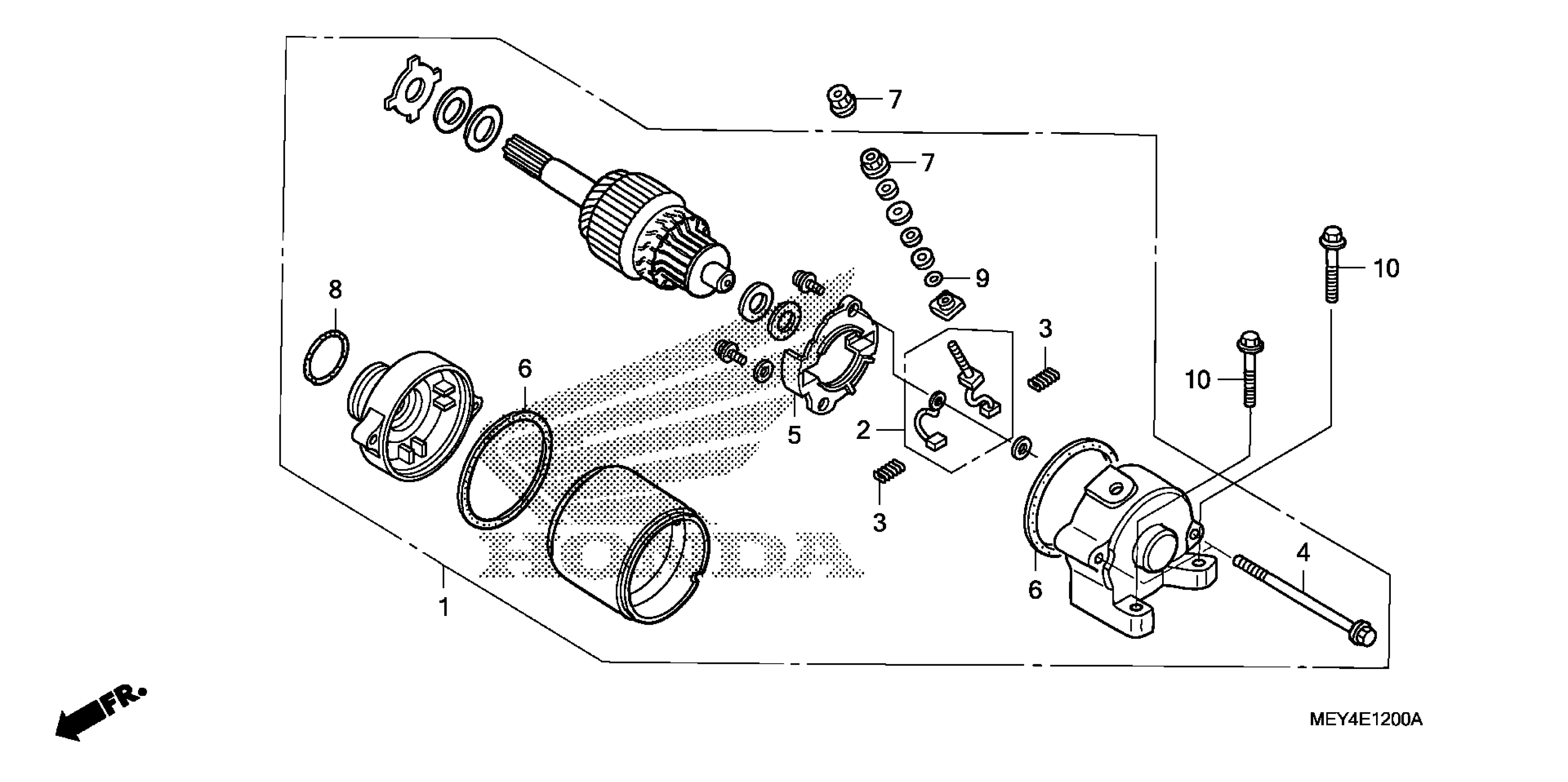

Honda CRF450XAC (13) CRF450X, JPN, VIN# JH2PE061-DK300001 TO JH2PE061-DK399999 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY.

31200-MEY-671

$405.39

2

TERMINAL SET, BRUSH

31201-MEY-671

$18.98

3

SPRING, CARBON BRUSH

31204-KG8-004

$3.53

4

BOLT, SETTING

31205-MEY-671

$3.23

5

HOLDER, BRUSH

31206-MEY-671

$7.75

6

RING

31207-MEY-671

$2.44

7

NUT-WASHER (6MM)

90071-MB0-000

$1.97

8

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

8

O-RING (24.4X3.1)

91312-MG7-003

$6.34

9

O-RING (4X2)

91320-MB0-000

$2.43

10

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
