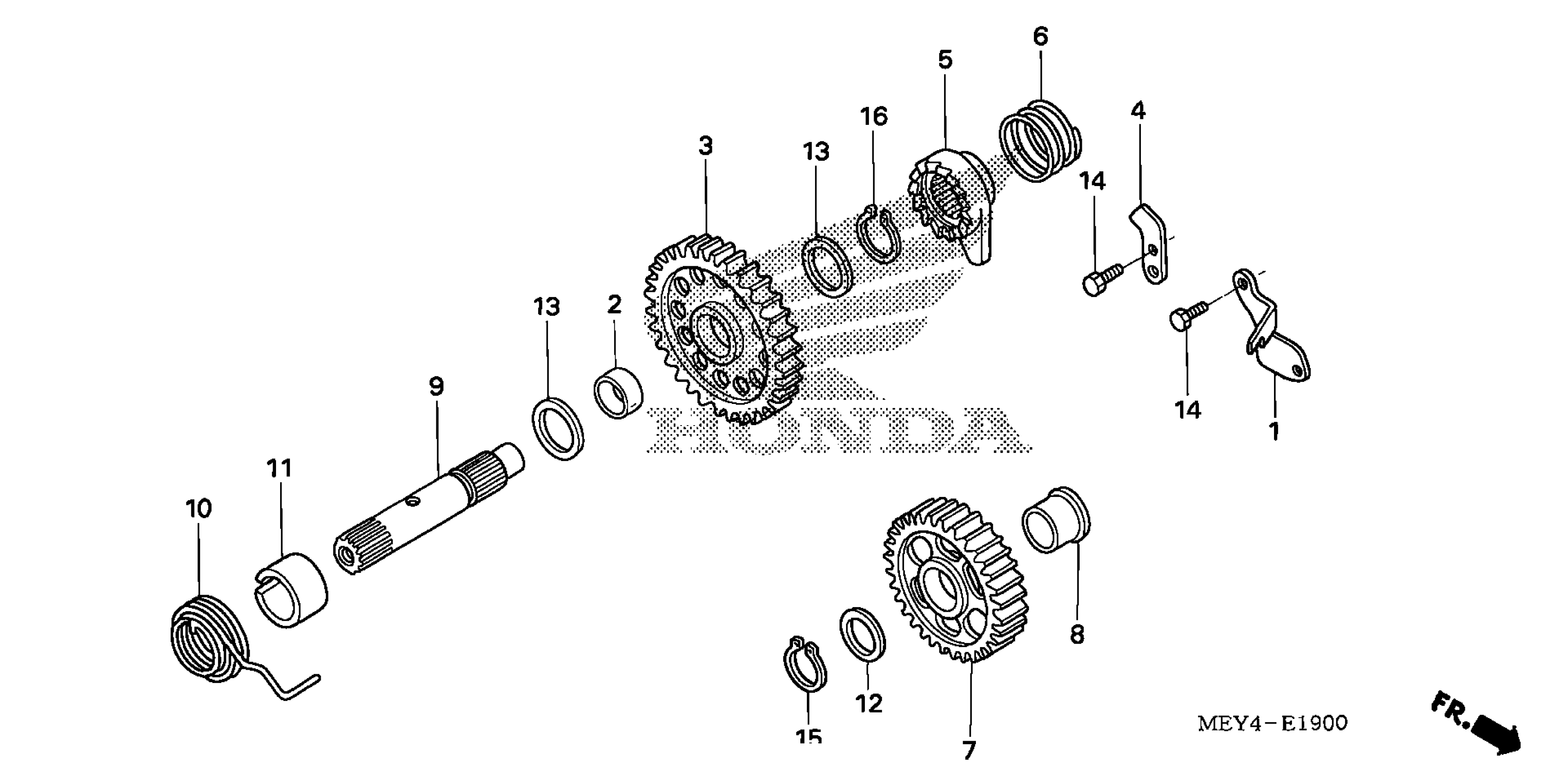

Honda CRF450XAC (13) CRF450X, JPN, VIN# JH2PE061-DK300001 TO JH2PE061-DK399999 KICK STARTER SPINDLE Diagram

PLATE, OIL GUIDE

15201-MEY-670

$9.33

COLLAR (20X22X10)

23472-KY4-900

$9.72

PINION, KICK STARTER (34T)

28211-MEY-670

$114.49

PLATE, KICK STOPPER

28215-MEB-670

$5.48

RATCHET, KICK STARTER

28221-MEB-770

$45.93

SPRING, KICK STARTER RATCHET

28223-KA4-740

$3.92

GEAR, KICK STARTER IDLE (29T)

28231-MEY-670

$77.97

COLLAR, STARTER IDLE GEAR

28232-KZ3-L20

$5.95

SPINDLE, KICK STARTER

28251-MEN-670

$97.84

SPRING, KICK STARTER

28261-MEB-670

$9.43

COLLAR, KICK SPRING

28282-MEB-670

$6.22

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

WASHER, THRUST (20MM)

90554-728-940

$6.07

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

CIRCLIP (OUTER) (19MM)

94510-19000

$1.49
