Description

Price

1

PETCOCK ASSY.

16950-KSC-A21

$34.41

2

SCREEN SET, FUEL STRAINER

16952-KCY-671

$27.07

3

JOINT ASSY., FUEL

16955-KSC-A21

$29.88

4

O-RING (11.8X3.55)

16997-467-000

$2.04

5

COLLAR, TANK SETTING

17509-KZ3-B00

$8.30

6

TANK, FUEL

17510-MEY-A20

$546.41

7

BAND, RR. TANK

17516-MEN-730

$10.32

8

RUBBER, TANK MOUNTING

17517-MEN-730

$23.03

9

COLLAR, FR. SEAT

17518-KZ4-710

$5.54

10

TUBE, FUEL CAP BREATHER

17521-MEN-730

$5.78

11

CAP ASSY., FUEL TANK

17620-MEN-730

$84.22

12

GASKET, FUEL CAP This part replaces 17624-KT1-780.

17624-KT1-781

$4.60

13

TUBE B, FUEL

17682-MEY-A20

$13.65

14

TUBE A, FUEL MAIN

17685-MEY-A20

$8.56

15

TUBE A, FUEL RESERVE

17686-MEY-A20

$12.09

16

RUBBER, MUFFLER

18334-ML3-680

$3.71

17

SHROUD SET, R. RADIATOR (TYPE1) (WL)

19071-MEY-U40ZA

$127.68

18

SHROUD SET, L. RADIATOR (TYPE1) (WL)

19072-MEY-U40ZA

$127.68

19

BOLT, STATOR COVER SETTING

90018-ZA5-000

$1.69

20

BOLT, SPECIAL (5X9)

90101-KRN-730

$2.44

21

SCREW (5X12)

90105-MEN-730

$1.54

22

COLLAR A

90501-KZ4-J20

$3.50

23

CLAMP, TUBE (12.0)

90651-HN6-A51

$1.91

24

TY-RAP, CABLE

91560-MS8-600

$2.19

25

BOLT, FLANGE (6X14)

96001-06014-00

$1.66

26

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

27

BOLT, FLANGE (6X30)

96001-06030-00

$1.29

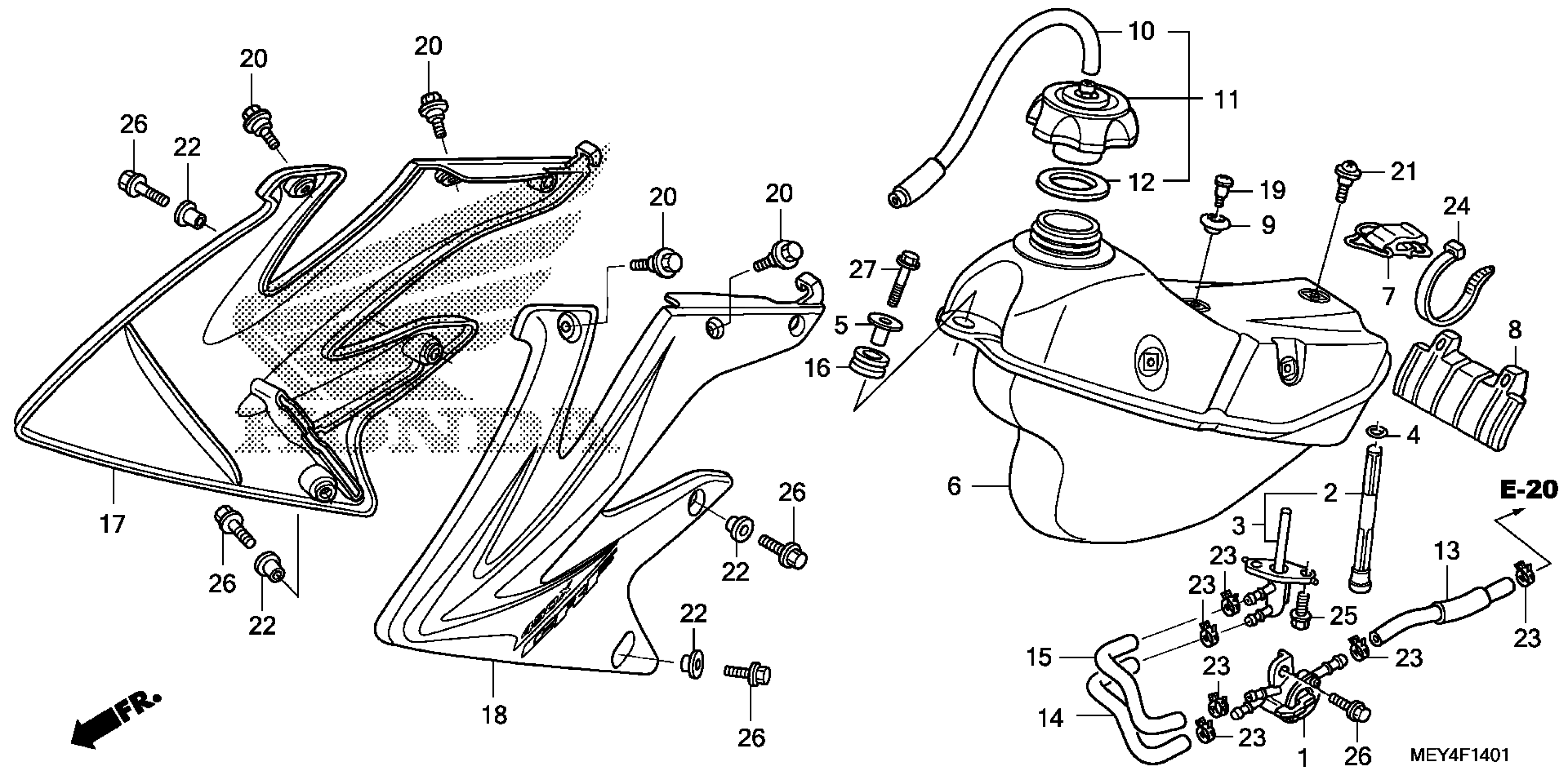

Honda CRF450XAC (13) CRF450X, JPN, VIN# JH2PE061-DK300001 TO JH2PE061-DK399999 FUEL TANK (2) Diagram
