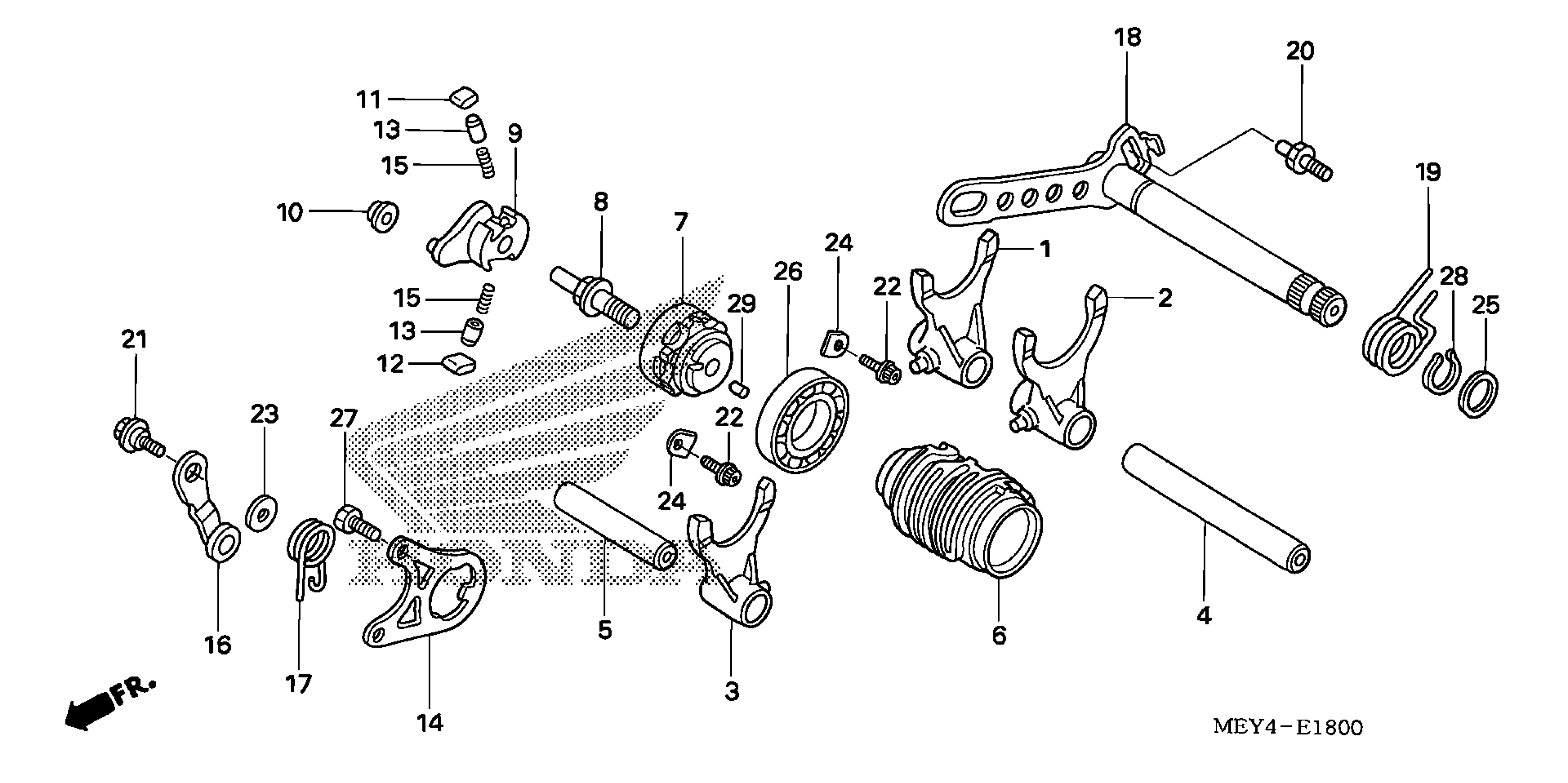

Honda CRF450XAC (12) CRF450X, JPN, VIN# JH2PE061-CK200001 TO JH2PE061-CK299999 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MEY-670

$72.08

2

FORK, L. GEARSHIFT

24221-MEY-671

$65.20

3

FORK, CENTER GEARSHIFT

24231-MEY-671

$69.15

4

SHAFT A, GEARSHIFT FORK

24241-MEY-670

$18.66

5

SHAFT B, SHIFT FORK

24242-MEN-730

$13.56

6

DRUM, GEARSHIFT

24311-MEY-670

$70.98

7

CENTER, GEARSHIFT DRUM

24312-KA3-741

$64.75

8

PIN, SHIFTER

24315-HA0-000

$12.60

9

SHIFTER, DRUM

24321-MEB-670

$36.57

10

COLLAR, SHIFTER

24322-MM4-000

$5.12

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLATE, GUIDE

24328-MEB-670

$12.77

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

STOPPER, DRUM

24430-KA3-740

$21.88

17

SPRING, SHIFT DRUM STOPPER

24435-KA4-770

$5.34

18

SPINDLE, GEARSHIFT

24610-MEY-670

$71.15

19

SPG, SHIFT RETURN This part replaces 24651-MEB-670.

24651-MEB-671

$4.11

20

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

21

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

23

WASHER (6.1MM)

90435-HB3-000

$2.92

24

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

25

WASHER (14MM)

90451-155-000

$3.78

26

BEARING, BALL (6805LU)

91008-MEY-671

$16.85

27

BOLT, HEX. (6X16)

93301-06016-0A

$1.49

28

CIRCLIP, OUTER (14MM)

94510-14000

$1.49

29

ROLLER (4X8)

96220-40080

$1.49
