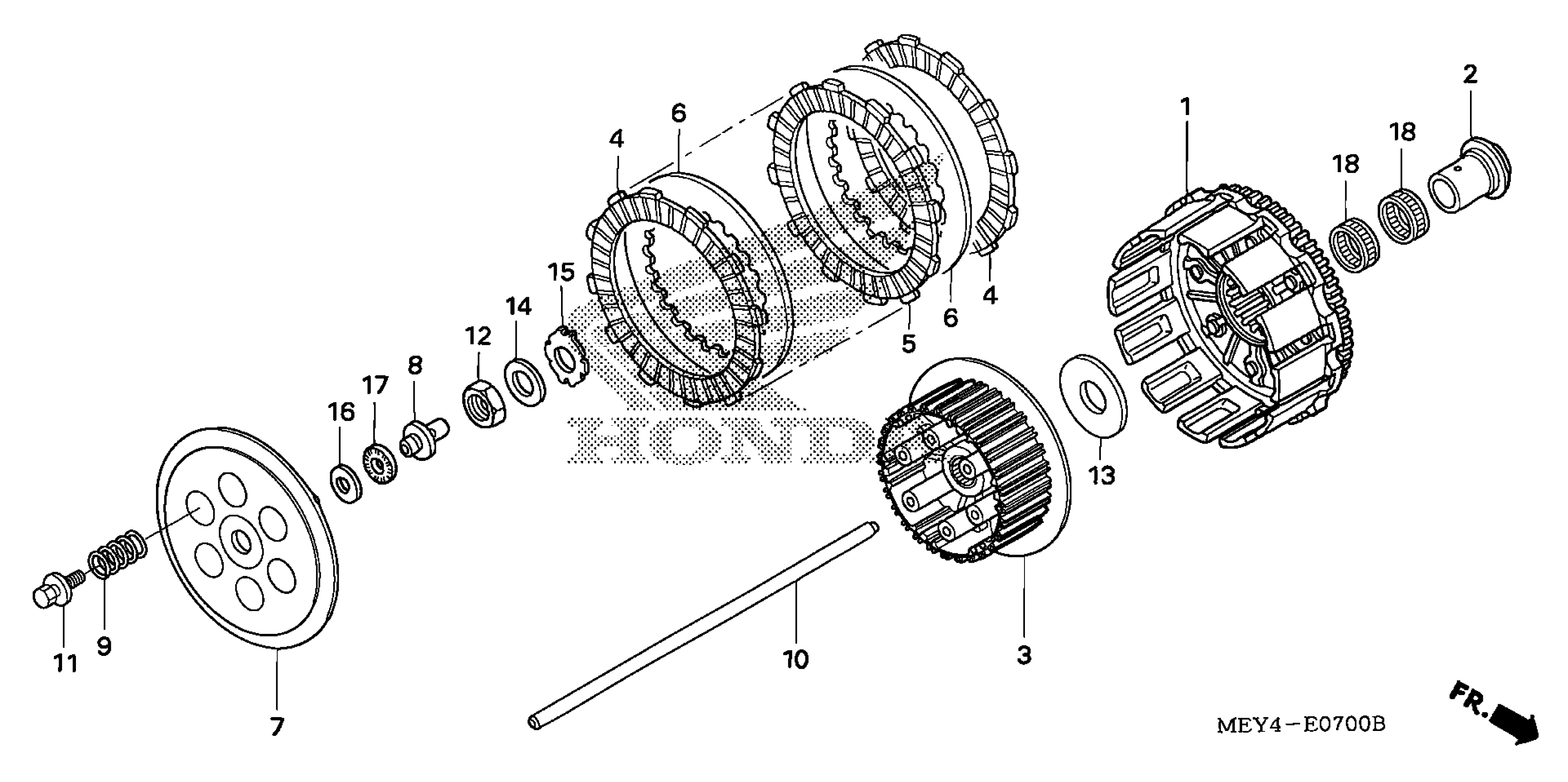

Honda CRF450XA (09) CRF450X, JPN, VIN# JH2PE060-9K400001 TO JH2PE060-9K499999 CLUTCH Diagram

CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING) | (Optional).

06001-MEN-000

$256.03

CLUTCH OUTER

22100-MEY-670

$358.18

COLLAR, CLUTCH (OUTER)

22106-MEY-670

$20.03

CENTER, CLUTCH

22120-MEY-670

$113.67

DISK, CLUTCH FRICTION

22201-MEB-670

$17.07

DISK B, CLUTCH FRICTION

22201-MEN-670

$14.68

PLATE B, CLUTCH

22321-KZ3-690

$16.11

PLATE, CLUTCH PRESSURE

22351-MEY-670

$66.82

PIECE, CLUTCH LIFTER

22352-KAE-770

$32.47

SPRING, CLUTCH

22401-MEN-670

$5.04

ROD, CLUTCH LIFTER

22851-MEY-670

$24.93

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

NUT (18MM)

90235-KA4-000

$11.09

WASHER, THRUST (23X48)

90421-HA2-010

$10.91

WASHER (18X27.5X2)

90451-MEN-730

$2.66

WASHER, LOCK (18MM)

90461-KZ3-J10

$6.23

WASHER (12MM)

90608-072-000

$3.80

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

BEARING, NEEDLE (28X32X17)

91104-KCW-003

$6.31
