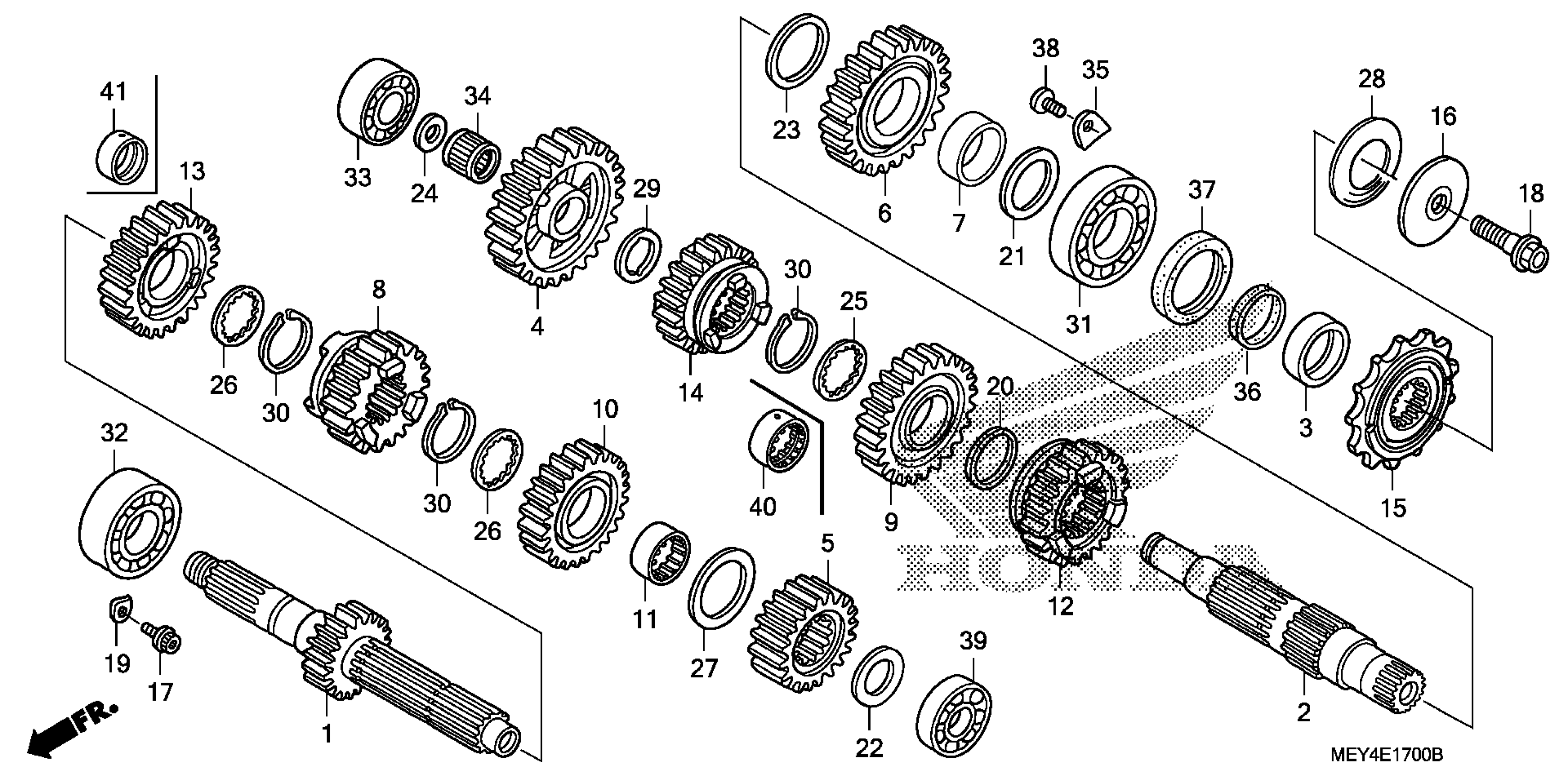

Honda CRF450XA (07) CRF450X, JPN, VIN# JH2PE060-7K200001 TO JH2PE060-7K299999 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (13T)

23210-MEY-A20

$173.21

1

MAINSHAFT (13T) This part replaces 23210-MEY-670.

23210-MEY-A20

$173.21

2

COUNTERSHAFT | Use up to Engine SN 5202821 This part replaces 23221-MEY-670.

23221-MEY-671

Unavailable

2

COUNTERSHAFT

23221-MEY-671

Unavailable

3

COLLAR, COUNTERSHAFT

23225-MEN-730

$14.95

4

GEAR, COUNTERSHAFT LOW (29T)

23411-MEY-670

$147.44

5

GEAR, MAINSHAFT SECOND (16T)

23421-MEY-670

$58.69

6

GEAR, COUNTERSHAFT SECOND (26T)

23431-MEY-670

$102.97

7

COLLAR, COUNTERSHAFT SECOND GEAR

23432-MEY-670

$9.56

8

GEAR, MAINSHAFT THIRD (17T)

23441-MEY-670

Unavailable

9

GEAR, COUNTERSHAFT THIRD (21T) | Use up to Engine SN 5202821

23451-MEY-671

Unavailable

9

GEAR, COUNTERSHAFT THIRD (21T) | Use from Engine SN 5202822

23451-MEY-672

Unavailable

10

GEAR, MAINSHAFT FOURTH (19T)

23461-MEY-670

$106.74

11

COLLAR, MAINSHAFT FOURTH GEAR

23462-MEY-670

$13.13

12

GEAR, COUNTERSHAFT FOURTH (19T)

23471-MEY-670

$113.67

13

GEAR, MAINSHAFT FIFTH (23T)

23481-MEY-671

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (19T) | Use up to Engine SN 5202821

23491-MEY-670

Unavailable

14

GEAR, COUNTERSHAFT FIFTH (19T) | Use from Engine SN 5202822

23491-MEY-A20

$118.44

14

GEAR, COUNTERSHAFT FIFTH (19T) | Use from Engine SN 5202822 to 5202763 This part replaces 23491-MEY-671.

23491-MEY-A20

$118.44

14

GEAR, COUNTERSHAFT FIFTH (19T) | Use from Engine SN 5202822 This part replaces 23491-MEY-672.

23491-MEY-A20

$118.44

15

SPROCKET, DRIVE (13T)

23801-MEY-670

$44.46

16

COLLAR, DRIVE SPROCKET

23802-KSC-670

$14.68

17

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

18

BOLT, UBS (8X33)

90112-413-000

$3.85

19

PLATE, BEARING HOLDER

90441-KA4-700

$3.35

20

WASHER, THRUST (25.2X30) | Use up to Engine SN 5202821

90444-430-000

$3.78

20

WASHER (25X32X1.0) | Use from Engine SN 5202822

90401-HP1-670

$2.87

21

WASHER, THRUST (24.1X36X1.5)

90445-ML3-871

$5.12

22

WASHER, THRUST (17.2MM)

90446-KA4-740

$5.94

23

WASHER, THRUST (27.2X35)

90446-ML3-870

$4.85

24

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

25

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.81

26

WASHER, THRUST INVOLUTE (25X31X1.5)

90451-MEY-670

$2.51

27

WASHER C, THRUST (25MM)

90459-357-000

$3.60

28

WASHER, SPRING (24MM)

90501-KSC-670

$4.26

29

WASHER, THRUST (19MM)

90554-KA5-680

$4.37

30

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

31

BEARING, RADIAL BALL (24X56X14) (NTN)

91001-ML3-873

$18.92

32

BEARING, BALL (5205A)

91003-MBN-671

$35.83

33

BEARING, BALL (5203U)

91006-MEY-671

$48.84

34

BEARING, NEEDLE (19X22X9.8)

91007-MEN-731

$9.37

35

PLATE, COUNTERSHAFT BEARING

91012-KA3-710

$4.87

36

D-RING (23.75MM) (ARAI)

91201-ML3-873

$3.67

37

OIL SEAL (31X40X7) (ARAI)

91207-ML3-871

$10.65

38

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

39

BEARING, RADIAL BALL (6203U)

91001-KSK-671

$11.23

40

COLLAR (28X25X10.5) | Use from Engine SN 5202822

23432-HN1-A40

$10.62
