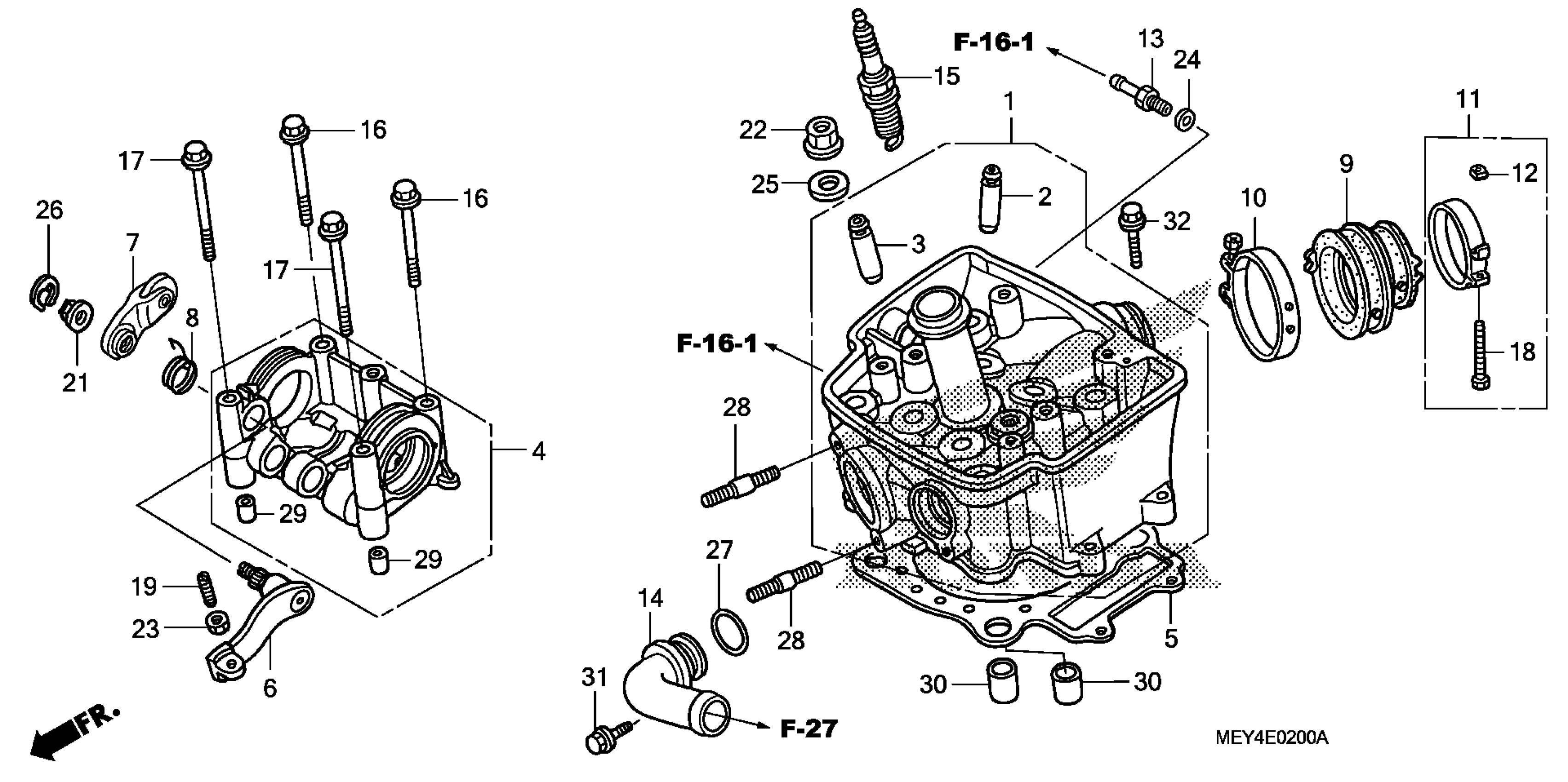

Honda CRF450XA (07) CRF450X, JPN, VIN# JH2PE060-7K200001 TO JH2PE060-7K299999 CYLINDER HEAD Diagram

CYLINDER HEAD

12200-MEY-771

$569.80

GUIDE, VALVE (OVER SIZE)

12204-MEB-P00

$16.96

GUIDE, EX. VALVE (OVER SIZE)

12205-MEB-P00

$15.97

HOLDER, CAMSHAFT | Use up to Engine SN 5202586 This part replaces 12240-MEB-770.

12240-MEB-771

$134.39

HOLDER, CAMSHAFT

12240-MEB-771

$134.39

GASKET, CYLINDER HEAD

12251-MEY-671

$50.71

ARM, DECOMPRESSION LIFTER

14120-MEB-770

$154.97

SLIPPER, DECOMPRESSION

14130-MEN-670

$124.84

SPRING, DECOMPRESSION ARM

14133-MEB-670

$1.52

INSULATOR, CARBURETOR

16210-MEB-670

$14.02

BAND, INSULATOR

16218-MCA-000

$7.30

BAND B, INSULATOR

16218-MCJ-000

$8.76

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

JOINT, BOOST

17113-KSC-670

$3.44

JOINT, WATER

19523-KRN-730

$16.74

SPARK PLUG (IFR8H11) (NGK)

31918-MEB-671

$16.03

SPARK PLUG (VK24PRZ11) (DENSO)

31918-MEB-672

$14.23

SPARK PLUG (VK27PRZ11) (DENSO) | (Optional). This part replaces 31919-MEB-671.

31919-MEB-672

$14.23

SPARK PLUG (VK27PRZ11) (DENSO) | (Optional).

31919-MEB-672

$14.23

BOLT, FLANGE (6X65)

90002-MEB-770

$3.33

BOLT, FLANGE (6X72)

90003-MEB-770

$3.33

BOLT, RECESSED (5X28)

90005-MCJ-000

$1.51

SCREW, TAPPET ADJUSTING

90012-MEB-670

$2.98

NUT, SPECIAL (8MM)

90201-MEB-670

$11.26

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, TAPPET ADJUSTING

90206-KM3-000

$1.49

WASHER, SEALING (5MM)

90452-323-000

$1.59

WASHER, PLAIN (10MM)

90453-KCY-670

$4.15

CIRCLIP, SPECIAL (12MM)

90603-MEB-670

$2.87

O-RING (19X3) (NOK)

91312-KE7-003

$2.61

BOLT, STUD (8X22)

92900-08022-0B

$2.13

PIN, DOWEL (8X10)

94301-08100

$2.25

PIN, DOWEL (14X20)

94301-14200

$2.28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
